FBR FGP 50/M EVO - Boiler Integration and Flame Tube; Boiler Plate Connection Specifications; Flame Tube Length Selection

SK070003_A_gb
FGP฀50/M฀EVO
FLAME฀TUBE฀LENGTH
Flame฀tube฀length฀must฀be฀selected฀based฀on฀the฀specifications฀supplied฀by฀boiler฀manufacturer฀and,฀in฀any฀case,฀it
must฀be฀greater฀than฀the฀thickness฀of฀the฀boiler฀door฀included฀its฀insulation.
In฀case฀of฀boilers฀with฀flame฀inversion฀or฀front฀flue฀combustion฀chambers,฀it฀is฀necessary฀to฀insulate฀the฀area฀between
the฀flame฀tube฀and฀front฀door฀with฀refractory฀material.฀This฀protection฀material฀must฀not฀impede฀flame฀tube฀
extraction.
**฀For฀different฀flame฀lengths,฀please฀contact฀our฀Technical-Sales฀Department.
MODEL
TCTL **
FGP฀50/M฀EVOmm 250 335

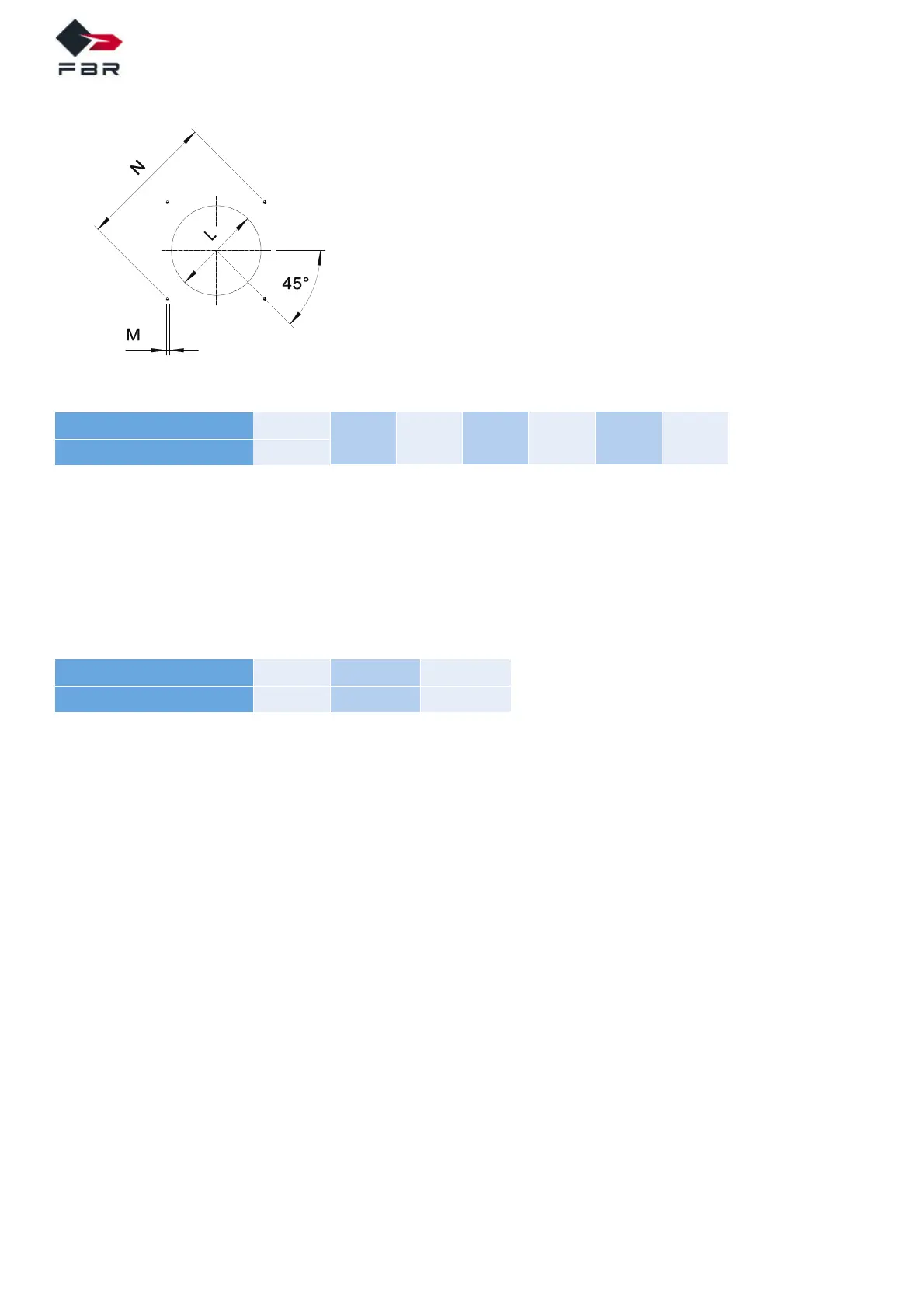

BOILER฀PLATE
*Suggested฀dimension฀of฀connection฀between฀burner
and฀generator.
Fig. 4 Boiler฀plate
MODEL
FGP฀50/M฀EVOmm
M N min N max L฀min
M10 205 226 160
L฀*L฀max
160180
LIGHT-OIL฀BURNERS฀TWO฀STAGES฀PROGRESSIVE฀
OR฀MODULATING
