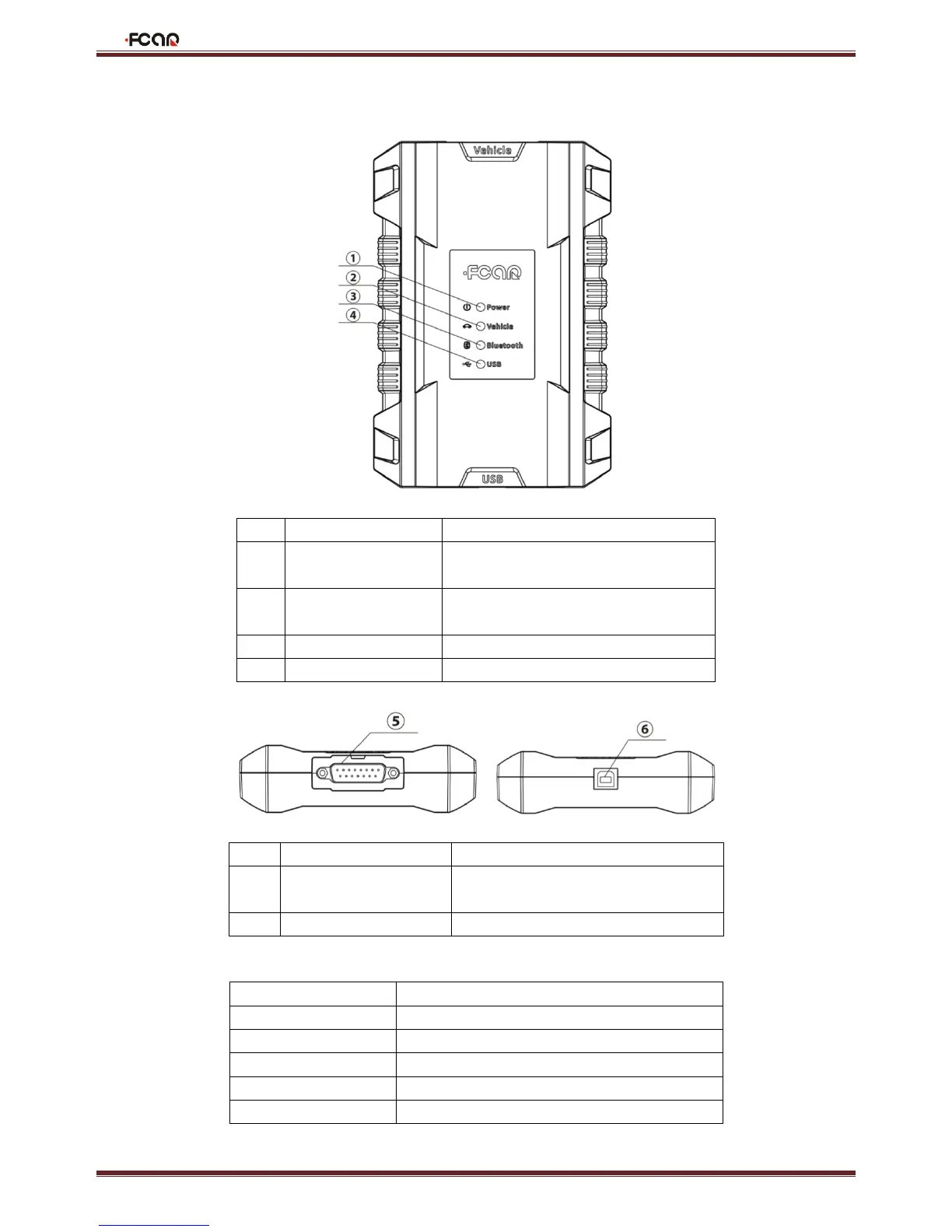

Chapter III VCI Box Structure
No.
Name
Description
①
Power indicator
On when powered on (connected to
vehicle)
②
Diagnostic indicator
Blinks when communicated with vehicle
connections
③
Bluetooth indicator
On when connected to a tablet
④
USB indicator
On when connected to a tablet
No.
Name
Description
⑤
DB15 interface
Connect to main test line; Connect the
vehicle through the diagnostic connector
⑥
USB interface (B shape)
Connect with tablet or upgrade VCI box
VCI Box parameters
Processor
Cortex-M3 Micro-controller
Frequency
100MHz
Processor model
LPC1768
Flash memory
512KB
RAM
64KB
Bluetooth
Support for Bluetooth 2.0, Bluetooth 4.0
