14

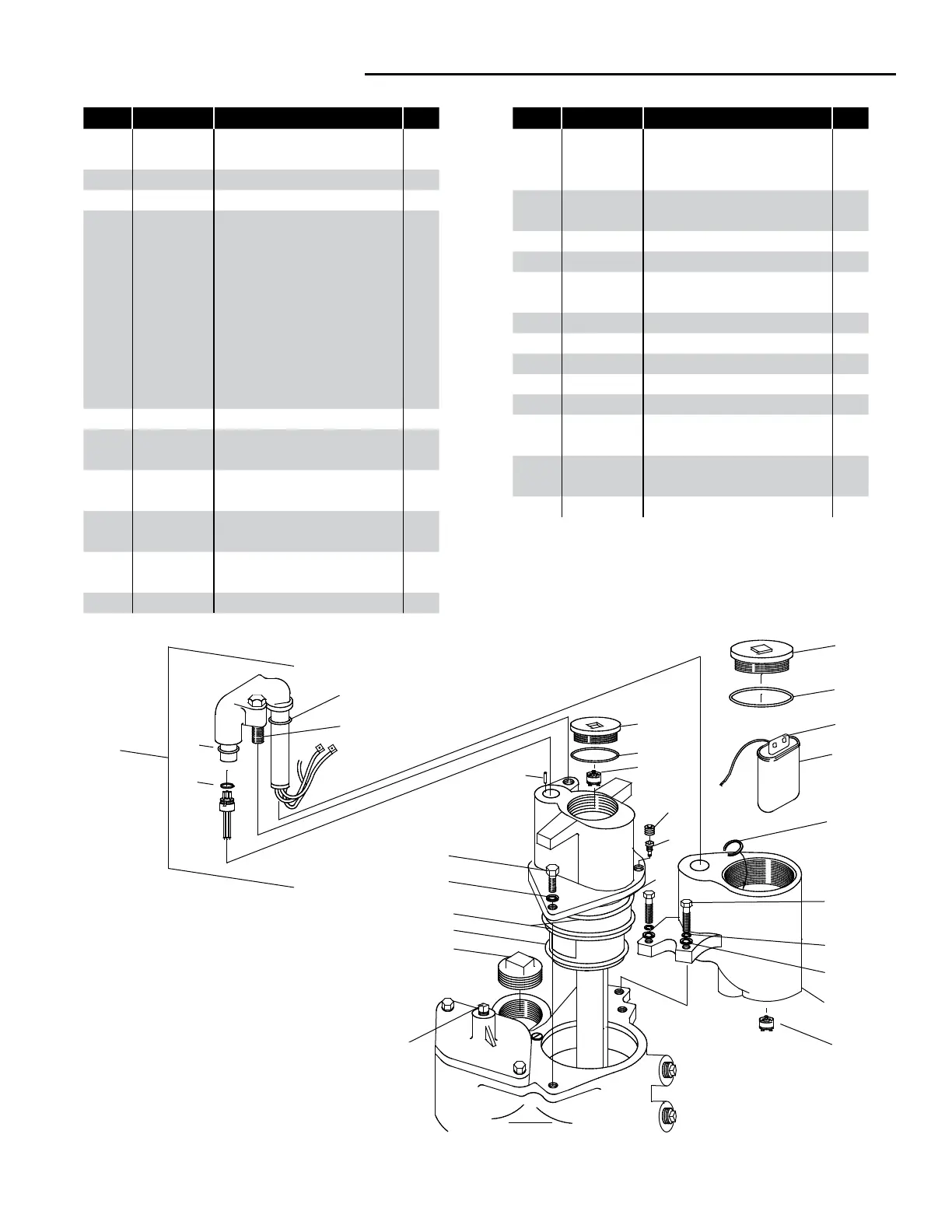

Discharge Manifold Assembly
Item # Part # Description Qty
1 400192930 Cover, Junction Box
(includes item #2)
1
2 400210233 O-Ring 1
3 400655001 Boot, Capacitor 1
4
(does
not
include
item
#3)
400170931 Capacitor Assembly
60Hz, 15 µF, 370V 1Ø
1
400170933 Capacitor Assembly
50Hz, 15 µF, 440V 1Ø
1
400170934 Capacitor Assembly
60 Hz, 40 µF, 370 V 1Ø
1
400170935 Capacitor Assembly
50Hz, 40 µF, 440V 1Ø
1
N / A Not required for 3Ø units
including IST / VS2
–
6 400257001 Retaining Ring 1
7 400258002 3 / 8-16 x 1 1 / 4 Hex Head Bolt
(may purchase locally)
4
8 400285002 3 / 8 Standard Lockwasher
(may purchase locally)
4
9 400280001 3 / 8 Standard Flat washer
(may purchase locally)
2
10 400651930 Junction Box Assembly
(includes two of each: Item #7, #8, & #9)
1
11 400210212 O-Ring 2
Item # Part # Description Qty
13 400200930 Wire Connector Kit
(includes male / female connectors,
(2) item #11, (1) each item #6, #12, & #20)
1
14 400589930 Cover
(includes item #15)
1
15 400210229 O-Ring 1
16 400236903 Plug, Contractors 2
17 400259002 3 / 8 NPT Pipe Plug
(may purchase locally)
1
18 400562901 Syphon Jet Assembly 1
400562903 Syphon Jet Assembly, E85 1
19 400211046 O-Ring 1
20 400249001 Retaining Ring 1
22 400250002 1 / 8 Dia. x 1 / 2 Roll Pin 1
23 400333343 O-Ring
(A / G compatible)
2
24 400333340 O-Ring
(A / G compatible)
1
25 400259005 2NPT SQ Head Plug 1
1
2
3
4
6
7
8
9
10
16
14
7
8
23
24
25
22
11
11
20
12
13
15
16
17
18
19
Line Test Port
Figure 15
