PWM LED Mode
Effect of PWM on Intensity Testing
The effect of Pulse Width Modulation (PWM) of a typical LED on the Analyser Intensity can be
seen in Figure 29. In this graph the LED will always be on at 100% modulation. The Intensity
has been normalised to 100% at 100% modulation. When the modulation has been reduced to
50% (i.e. the LED is off 50% of the time) the relative Intensity drops to approximately 80%.
At 20% modulation ( the LED is off 80% to the time) the relative Intensity drops to
approximately 50%.
0 10 20 30 40 50 60 70 80 90 100
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
Relative Logarithmic Intensity vs Duty Cycle in PWM Capture
Duty Cycle (%)
Relati ve Intensity

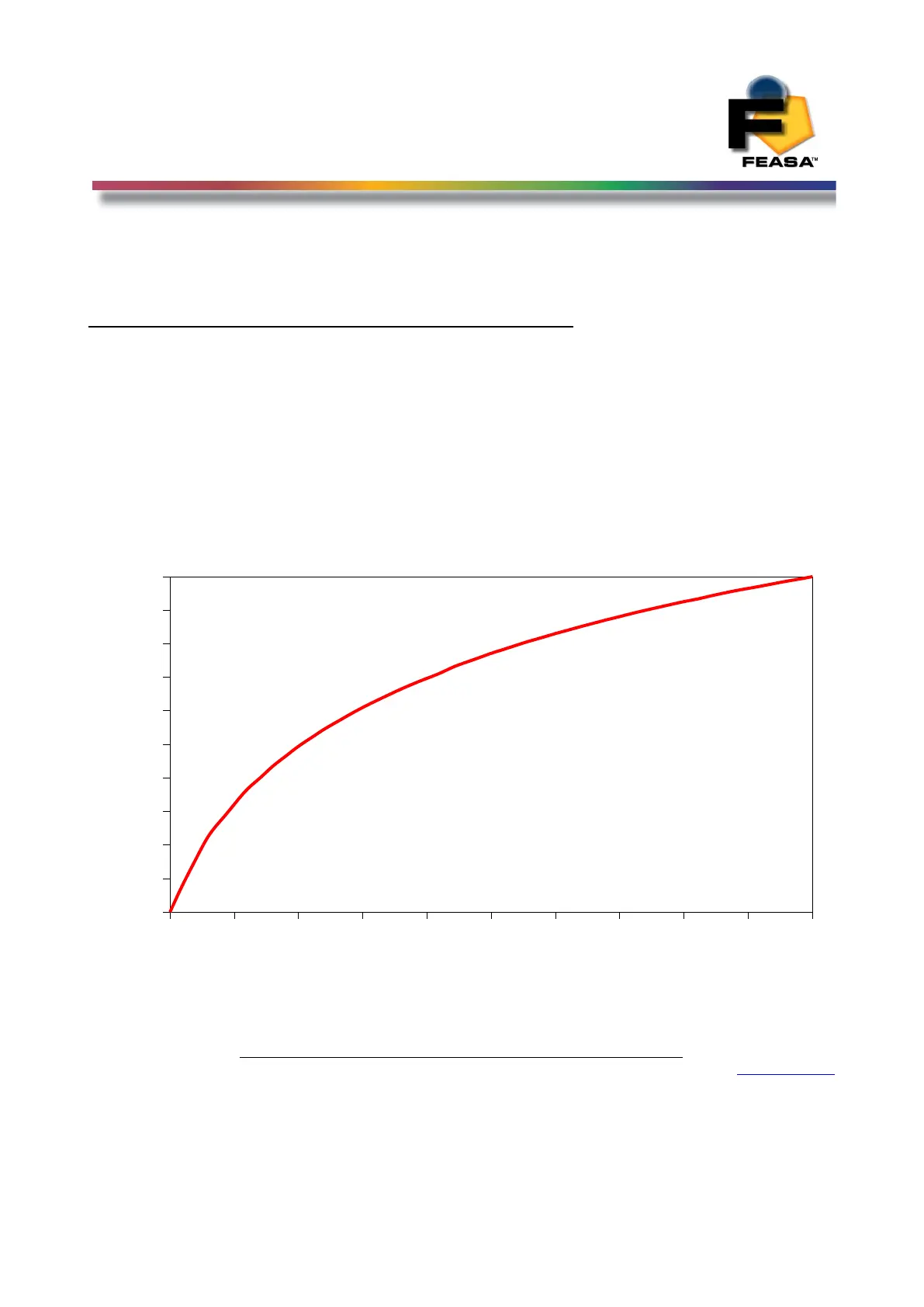

Figure 29: Normalized Intensity versus Modulation
