PP-9260 series user’s manual ver 1.0
53

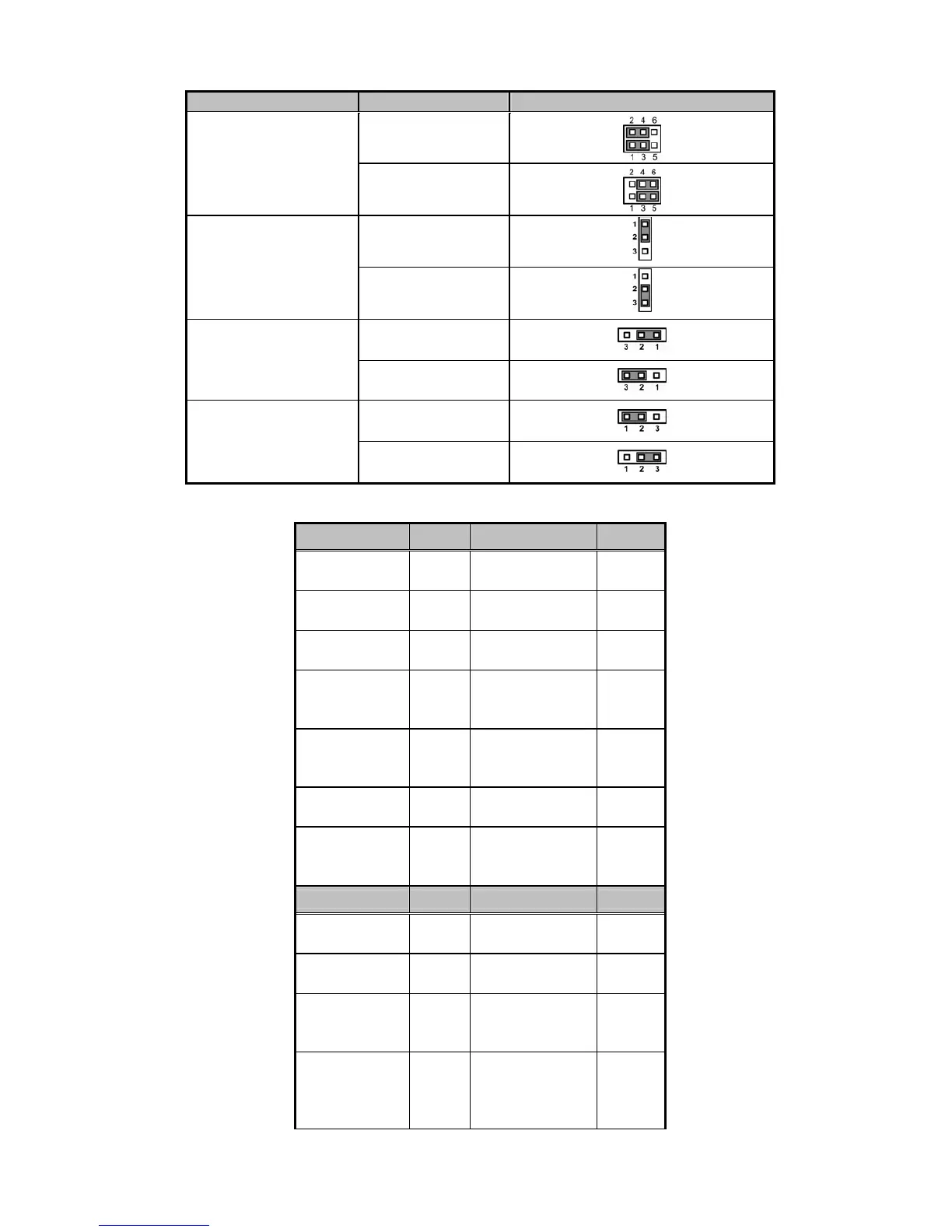

Description Function Jumper Setting
Line Out (Default) Audio Line
Out/Speaker Out
Selection (JP15)
Speak Out
Slave (Default) CompactFlash Mode
Selection (JP1)
Master
ATX (Default) Power ATX/AT Mode
Selection (JP2)
AT
5V_SBY USB Voltage Selection
(JP4/ JP7/ JP16)
5V (Default)
III. Connectors
Connector Label Connector Label
Power Control
Connector
CN1
Serial Port3
Connector
COM3
EPIC
EXPRESS Slot
CN2
Serial Port4
Connector
COM4
Power-Out
Connector
CN3
CompactFlash™
Socket
CFS1
LVDS
Backlight
Connector
CN4 DDRII SO-DIMM DIMMS1
LVDS1
Connector
CN5
Digital Visual
Interface (DVI)
Connector
DVI1
SM BUS
Connector
CN6
CPU FAN
Connector
FAN1
Front Panel
Bezel
Connector
CN8
System FAN
Connector
FAN2
Connector Label Connector Label
Audio
Connector
CN9
Parallel IDE
Connector
IDE1
Digital I/O
Connector
CN11 LAN2 Connector LAN2
LAN2
Connector
(Optional)
CN12
Parallel Port
Connector
LPT1
6-Pin Mini Dim
Keyboard /
Mouse
Connector
CN13
USB Port0 &
Port1 Connector
USB1
