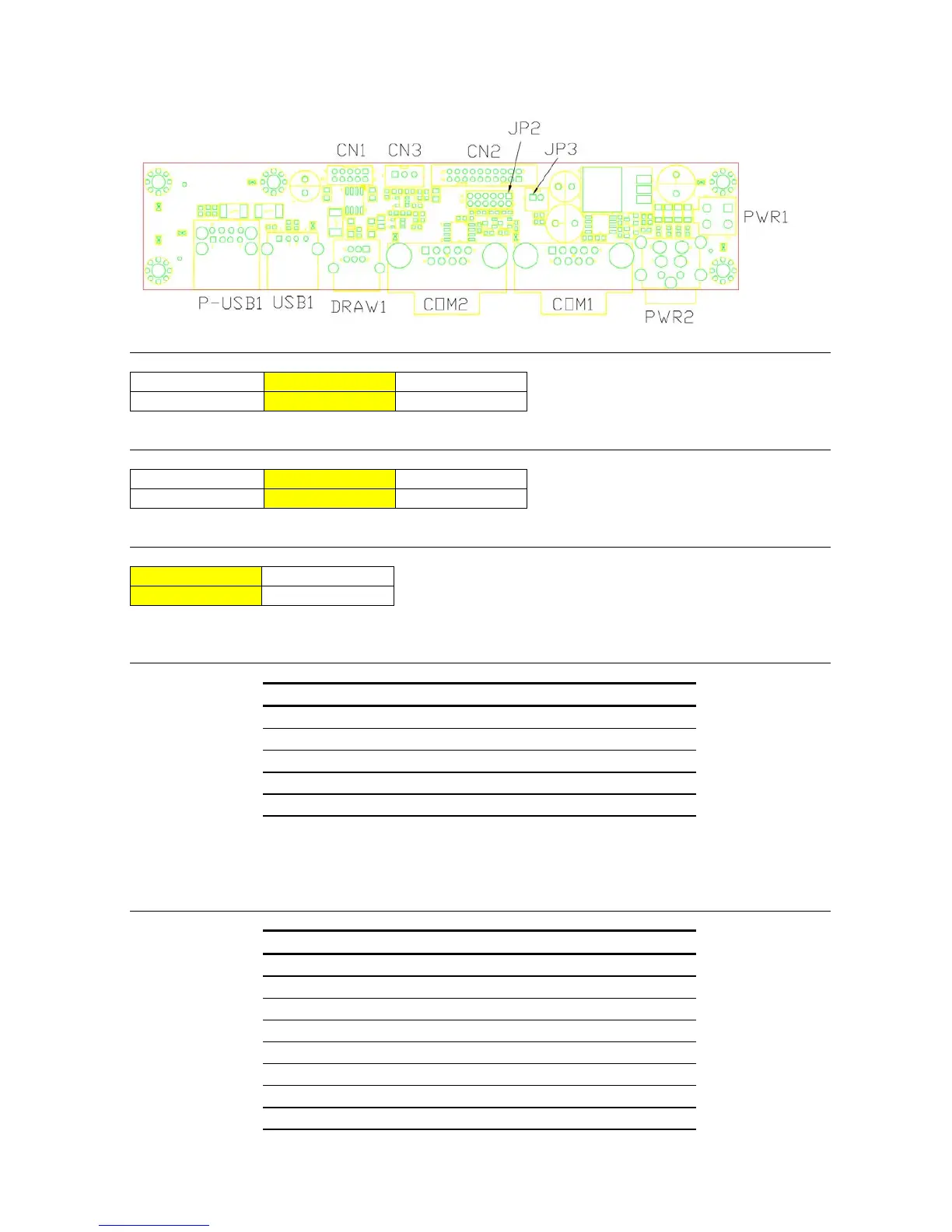

PP-9267 I/O board
COM4 Ring/+5V/+12V Selection(JP2)
1-2
3-4 5-6
+12V +Ring +5V
COM2 Ring/+5V/+12V Selection(JP2)
7-8
9-10 11-12
+12V +Ring +5V
DRAW +12V/GND Selection(CN3)
1-2 2-3
+12V GND
2Port USB Connector(CN1)
Pin Signal Pin Signal
1 GND 2 GND
3 GND 4 GND
5 USBD0+ 6 USBD1+
7 USBD0- 8 USBD1-
9 +5V 10 +5V
Serial Port Connector(CN2)
Pin Signal Pin Signal
1 DCD4 2 DSR4
3 RXD4 4 RTS4
5 TXD4 6 CTS4
7 DTR4 8 RI4
9 DCD2 10 DSR2
11 RXD2 12 RTS2
13 TXD2 14 CTS2
15 DTR2 16 RI2
