PP-9260 series user’s manual ver 1.0
55

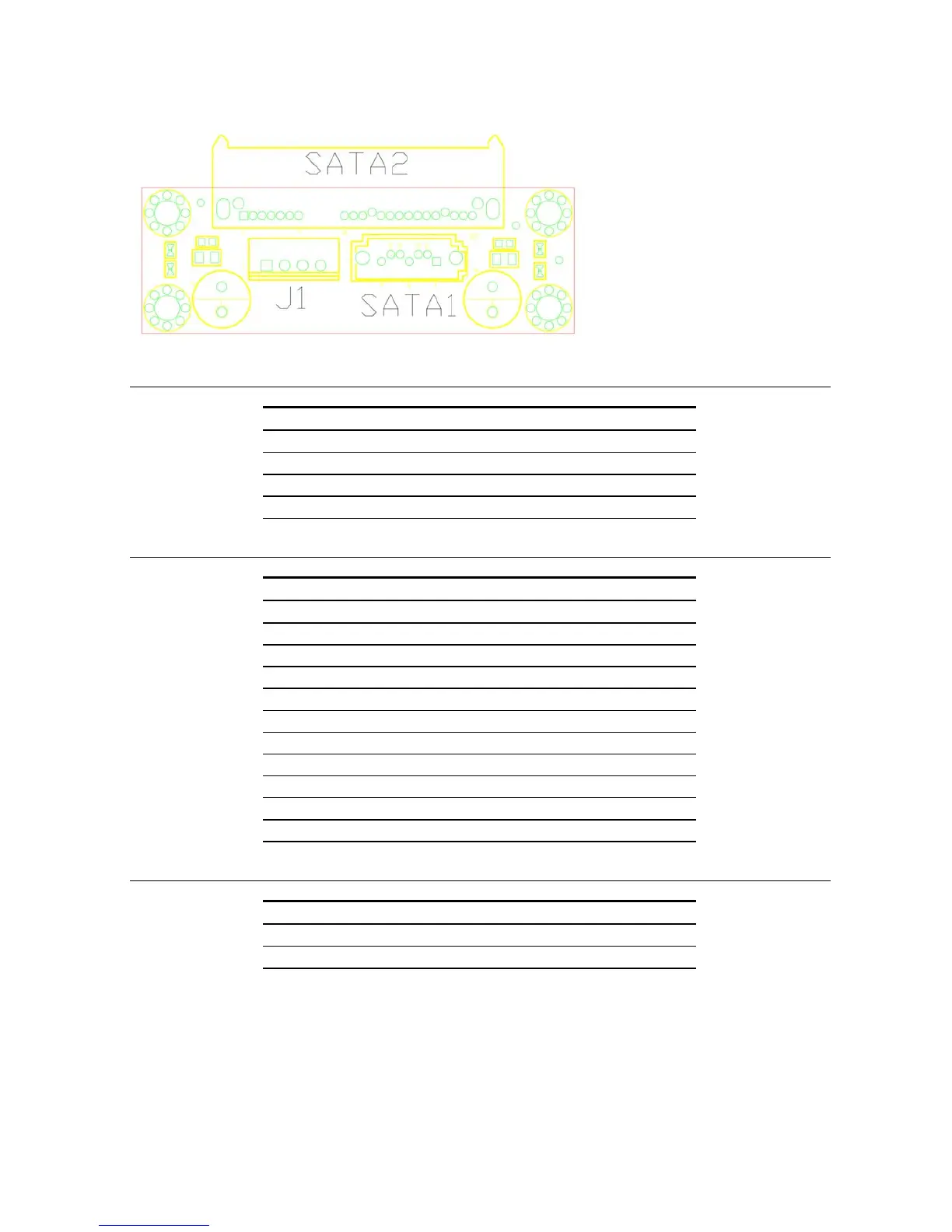

SATA docking board
SATA 7PIN Connector(SATA1)
Pin Signal Pin Signal
1 GND 2 STXP_1
3 STXN_1 4 GND
5 SRXN_1 6 SRXP_1
7 GND
SATA 22PIN Connector(SATA2)
Pin Signal Pin Signal
1 GND 2 STXP_1
3 STXN_1 4 GND
5 SRXN_1 6 SRXP_1
7 GND 8 N/A
9 N/A 10 N/A
11 GND 12 GND
13 GND 14 +5V
15 +5V 16 +5V
17 GND 18 N/A
19 GND 20 N/A
21 N/A 22 N/A
SATA Power Connector(J1)
Pin Signal Pin Signal
1 +12V 2 GND
3 GND 4 +5V
