MSS
TM
Series
© Copyright 2022 Fluid Equipment Development Company | www.fedco-usa.com
- 31 -

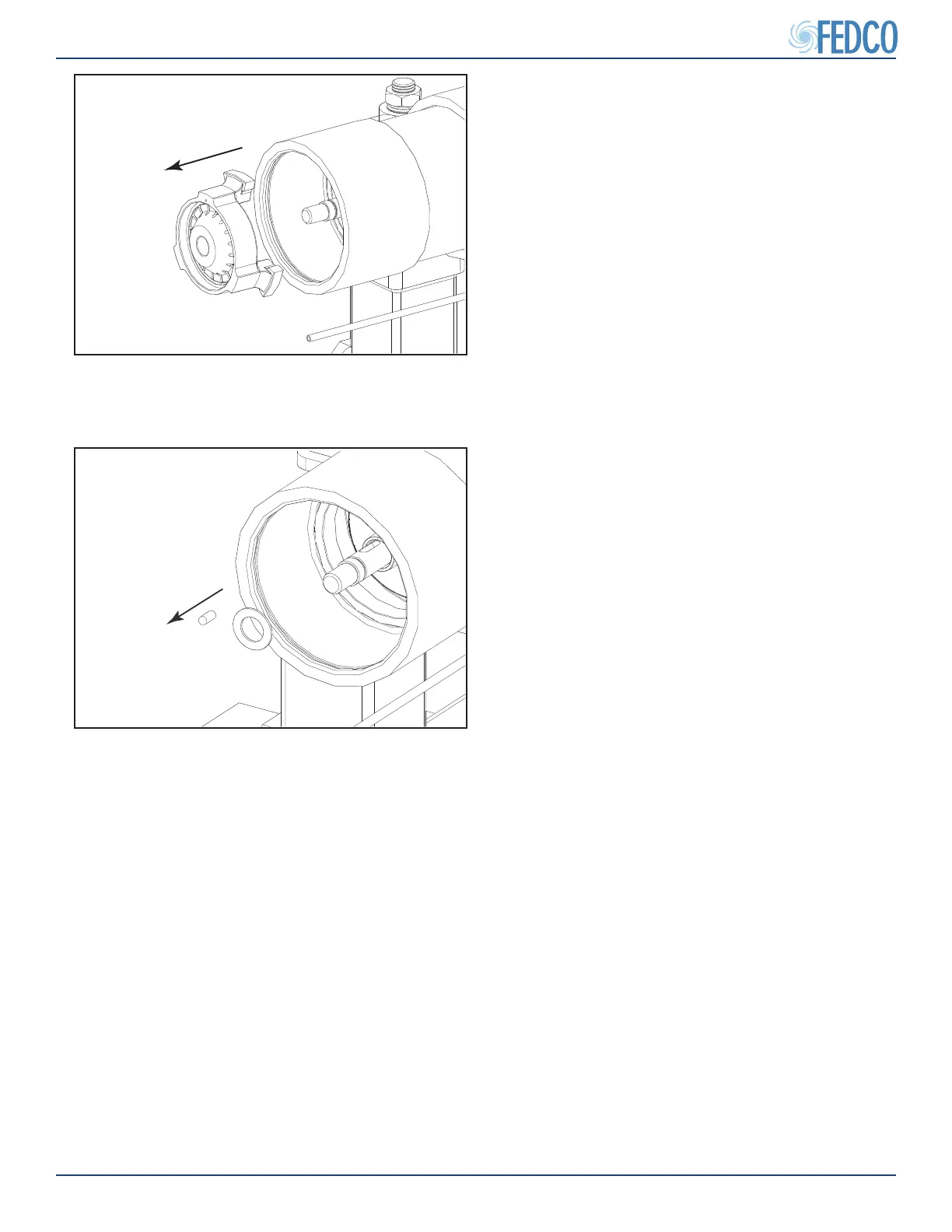

Figure 58 - Removing Balance Disc Washer
and Key
Figure 57 - Removing Bearing Carrier and
Balance Disc
13. Remove the balance disc key and washer
from the pump shaft.
12. Remove the bearing carrier with the bal-
ance disc from the end shell.
Pump Overhaul Continued
