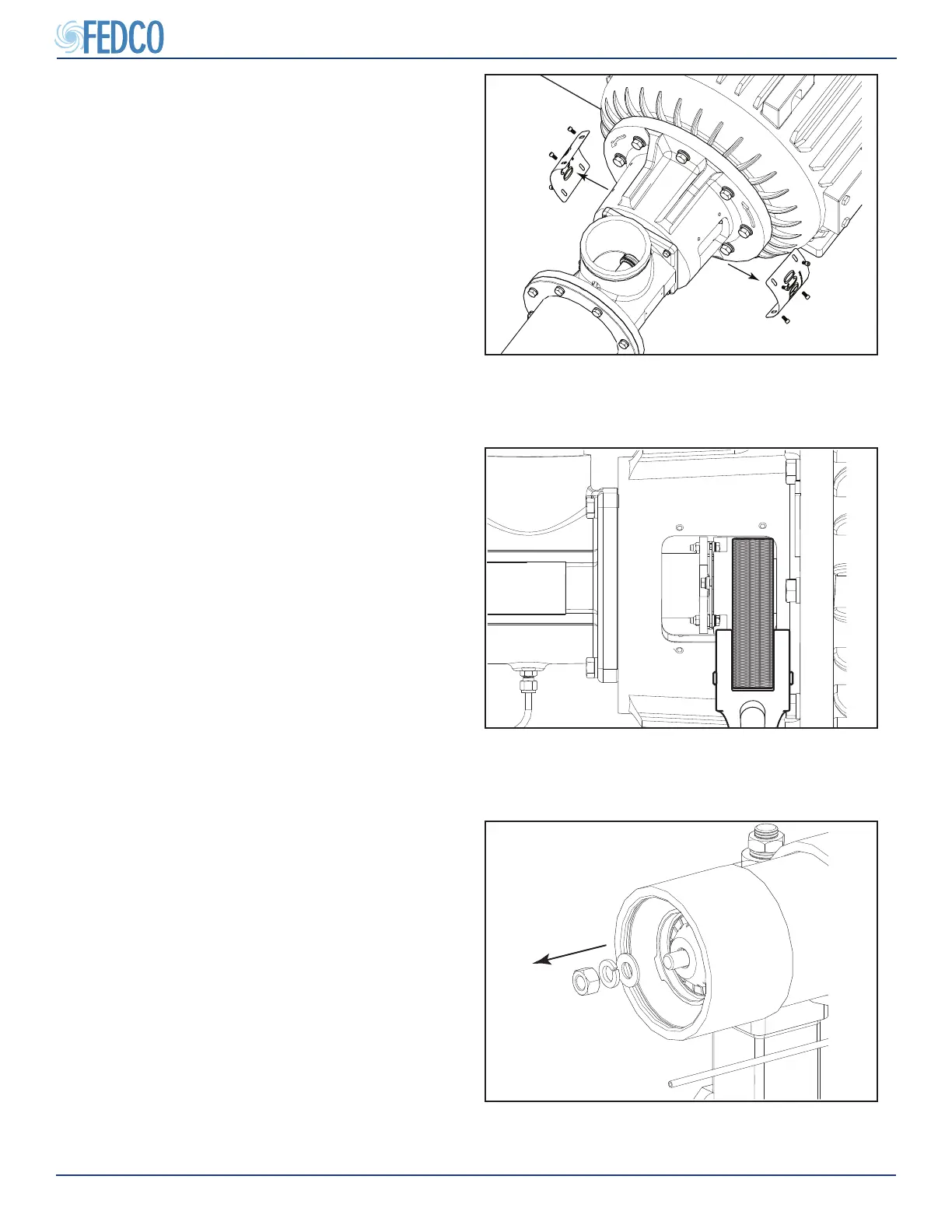

Figure 56 - Removing Shaft Nut and Washers
Figure 55 - Securing Pump Shaft
Figure 54 - Removing Coupling Guards
SUITABLE STRAP
OR CHAIN WRENCH
11. Remove the shaft nut, lock washer and
washer from the pump shaft.
10. Lock the exible coupling in place with a
suitable strap or chain wrench to prevent
pump shaft rotation.
9. Loosen the screws and remove the coupling
guards.
Pump Overhaul Continued
