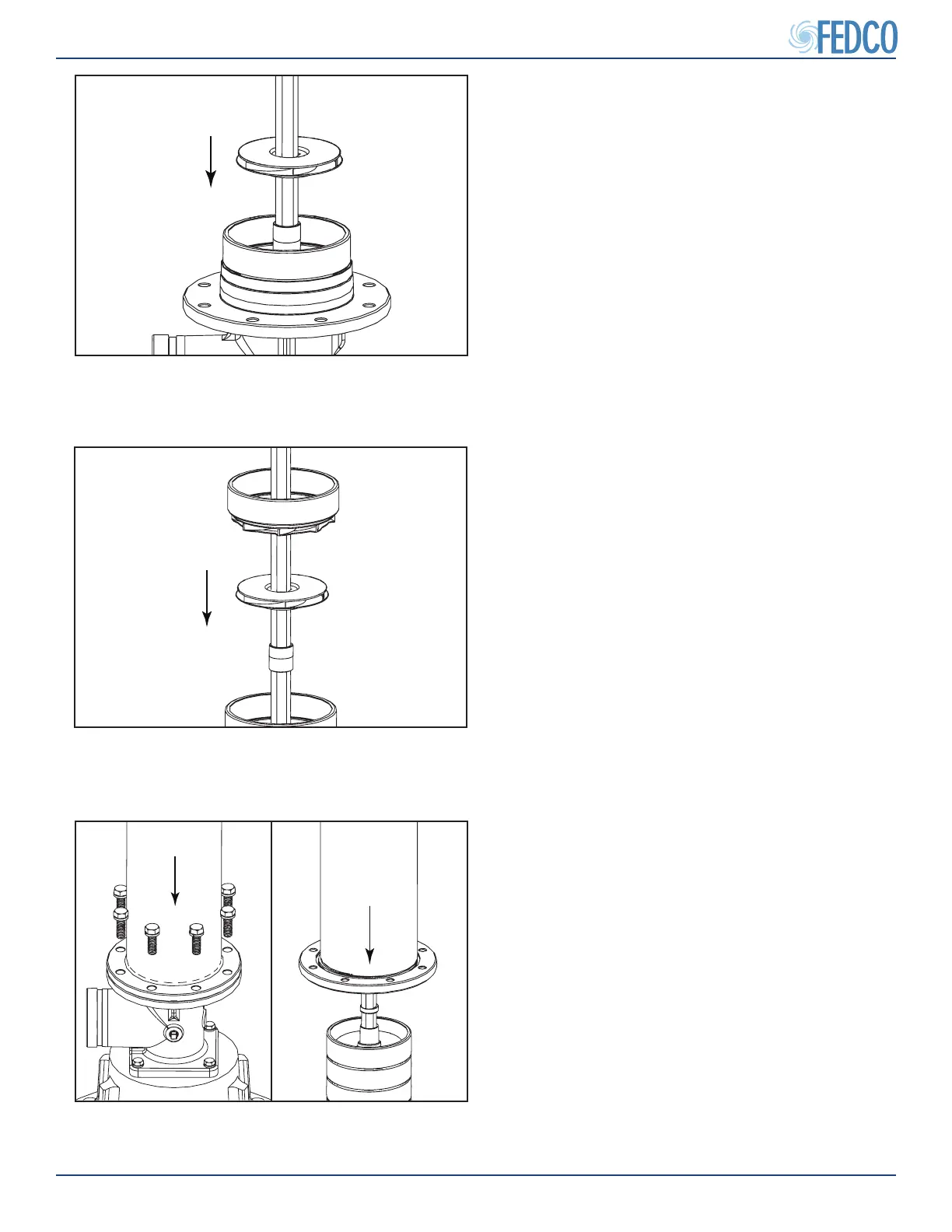

Figure 98 - Series Shell Installation
7. For:
Single Shell Pumps:
Skip this step.
Two Shell Pumps:
Install the series spacer and carefully lower
the series shell over the stages using safe
lifting and handling methods. Align the shell
ange with the inlet ange (serial number
stamping opposite to inlet). Install the shell
ange bolts/ lock washers and torque to val-
ue specied in the Fastener Torque Speci-
cations section of this manual.
NOTES: Make sure there is no gap between
anges after tightening bolts.
Figure 97 - Stage Installation
6. For:
Single Shell Pumps:
Install all stage components: stage spacers,
impellers, and di󰀨users.
(For MSS-50/70 pumps, the last di󰀨user
bowl/ discharge ring is welded within the
end shell)
Two Shell Pumps:
Install series shell stage components: stage
spacers, impellers, and di󰀨users.
(For MSS-50/70 pumps, the last di󰀨user bowl
is welded within the series shell)
NOTES: Verify di󰀨user bushings have been
pre-installed before assembly.
Figure 96 - Impeller Installation
5. Install impeller onto the shaft and let it rest
on the starting spacer.
Pump Overhaul Continued
