FEIG MWD BP - Notes; Connections; Technical Data

Instruction Manual Radar Motion Detector MWD BP 10/13
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
7 Notes
- The MWD BP is a 2 channel device. While opening parameter entry first the odd address used to open chan-
nel 1 will displayed. The following even device address activates channel 2.
- In factory settings relay 1 with change over contacts is assigned to channel 1 (display „
|
.“) and relay 2 with
normally open contact is assigned to channel 2 (display „
| |.“). It is possible to change relay assignments via
parameter entry.
- Only the odd device address of channel 1 can be changed. The address of channel 2 results from the following
even address.
- Common parameter (e.g. firmware info, profiles...) can be displayed/changed with even or odd device ad-
dress.

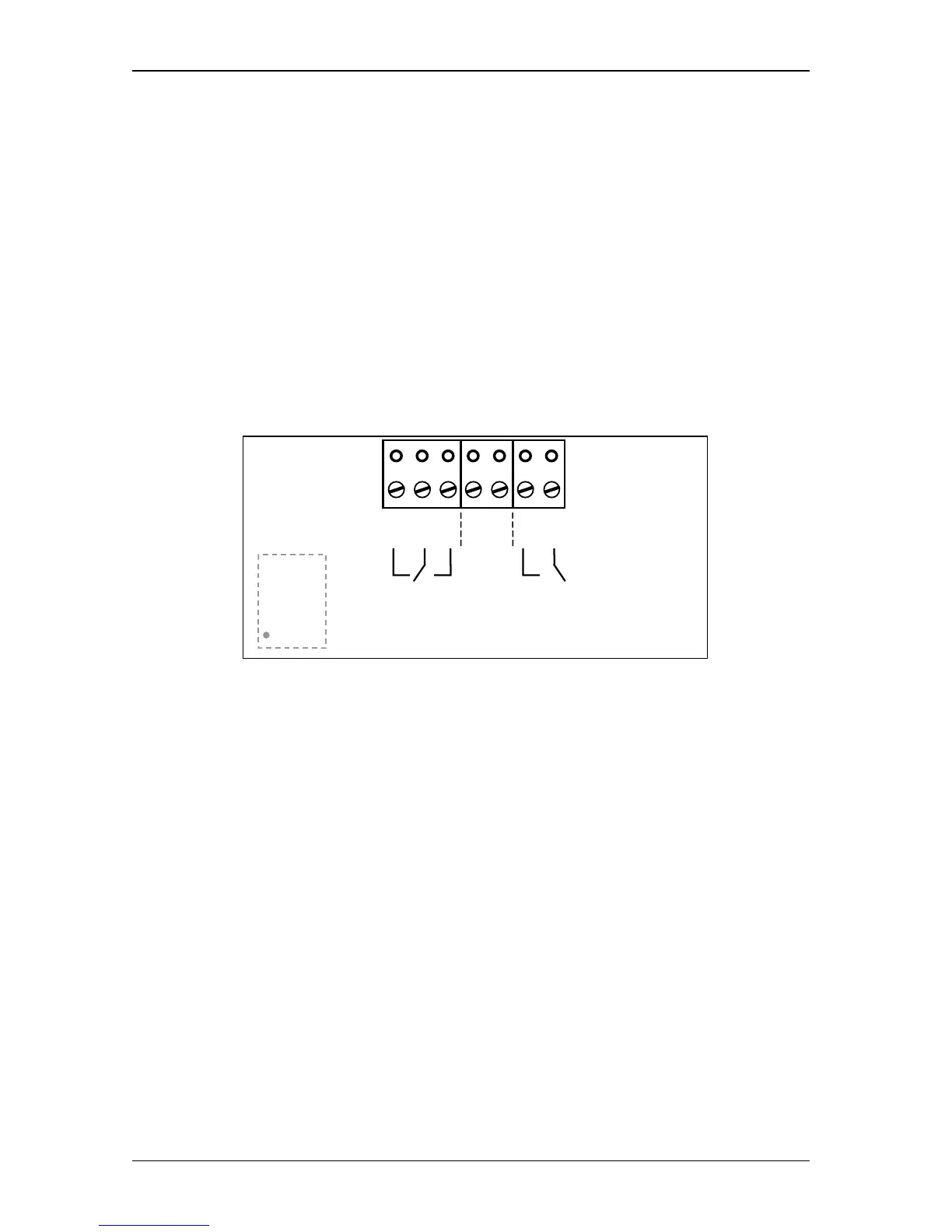

8 Connections
X1
8
NC
1
Com
1
NO
1
GND 24V
NO
2
Com
2
1
2 3
4
5
6
7
Backside view, Contact status for power off
9 Technical data
Dimensions
135x65x130mm (BxHxT)
Protective system
IP 65
Power supply
12-27 V AC / 12-30 V DC
Power consumption
typ. 1,0 W, max. 2,4 W
Admissible working temperature
-20 °C .. +60 °C
Storing temperature
-30 °C .. +75 °C
Air moisture
< 95 % not condensing
Transmit frequency
typ. 24,125 GHz
Output power (EIRP)
typ. 40 mW, max. 100 mW
Output relay
max. switching load 1 A / 30 V AC/DC (resistive load)
min. switching load 1 mA / 5 V DC
Use external protective wiring for inductive load !
Maximum mounting height
7 m
