Fein FMT 250 - Disassembling Tool Head (FMT 250 Q)

FMT 250; FMT 250Q; FMT 250QSL
6. Disassembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 17 of 30

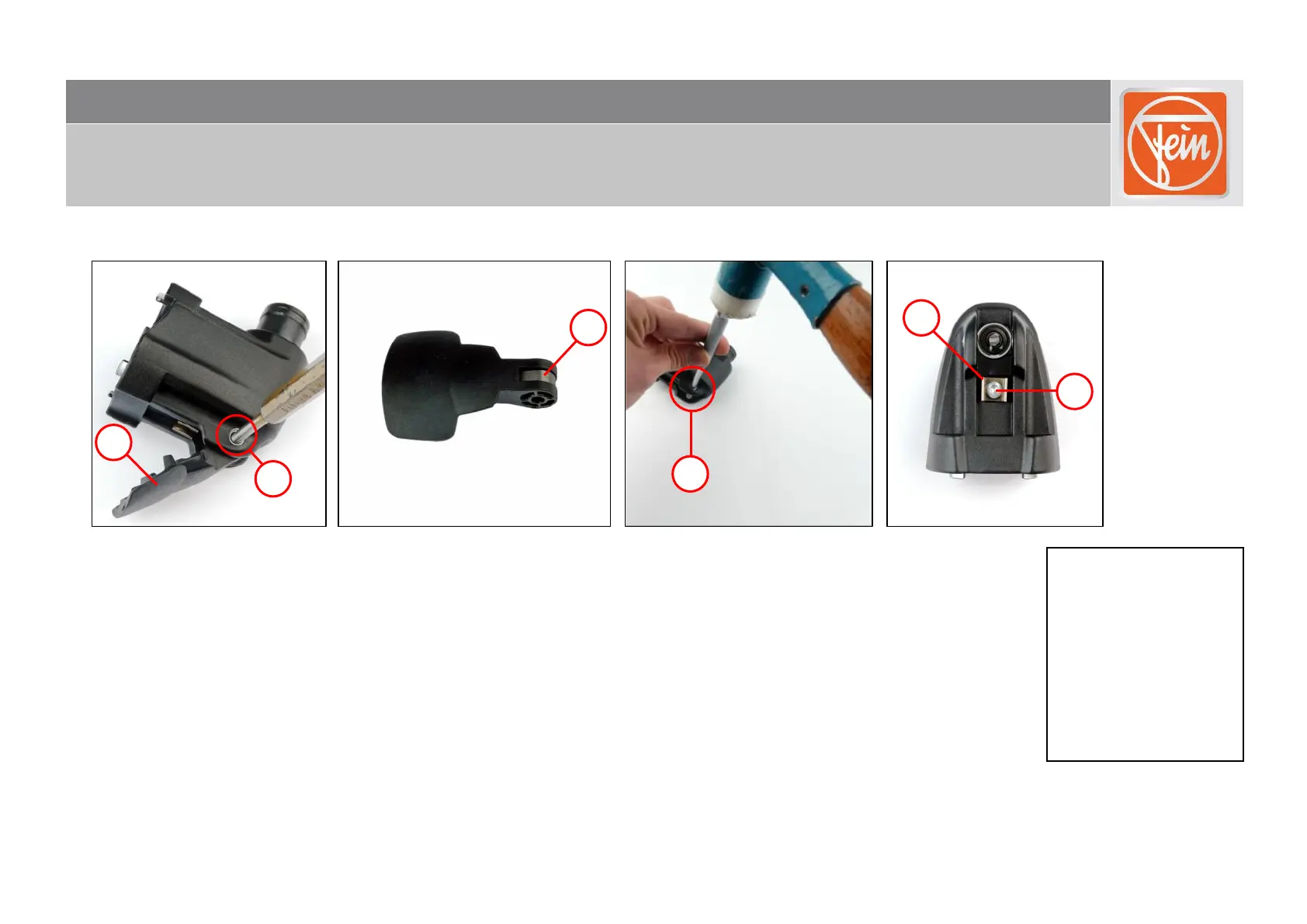

Disassembling tool head (applies to: FMT 250Q)
1. Drive out straight pin (1) and remove lever (2).
2. Remove eccentric ring (3).
3. Press out the two bushes (4).
4. Unscrew fillister head screw (5).
5. Remove locking spring (6).
Tools:
- Plastic hammer
- Torx T20
- Punch, diameter 5mm
- Punch, diameter 6mm
1
2
3
4
6
5
