Fein FMT 250 - 7. Assembly; Assembling Armature

FMT 250; FMT 250Q; FMT 250QSL
7. Assembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 18 of 30

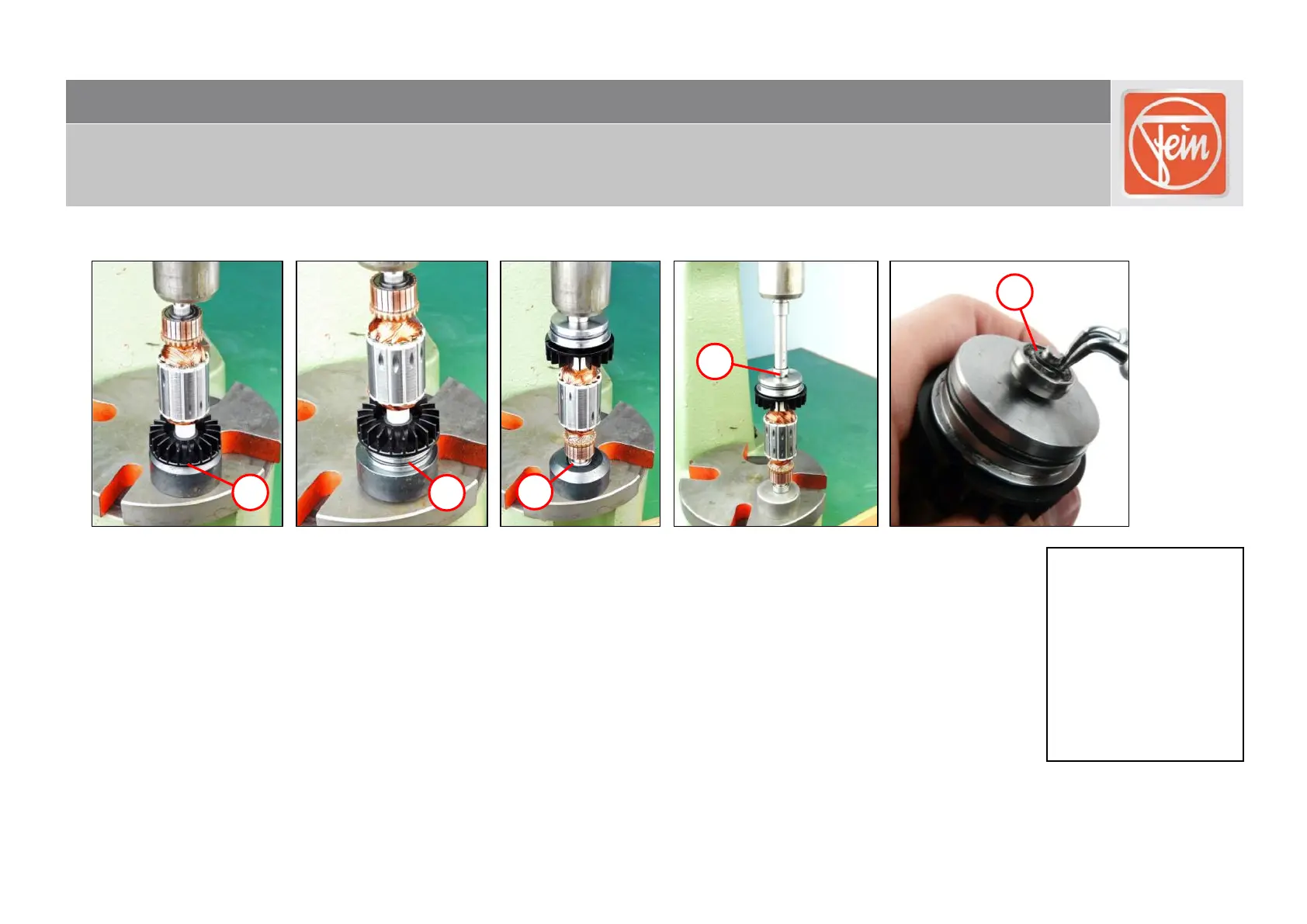

Assembling armature
1. Press on grooved ball bearing (1).
2. Press on bush (2).
3. Press on grooved ball bearing (3).
4. Press on grooved ball bearing (4).
5. Insert circlip (5).
Tools:
- Arbor press
- Ball bearing support,
16mm
- Ball bearing support,
19mm
- Ball bearing support,
26mm
- Circlip pliers
1
2
3
4
5
