Fein FMT 250 - Assembling Tool Head (FMT 250 Q)

FMT 250; FMT 250Q; FMT 250QSL
7. Assembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 19 of 30

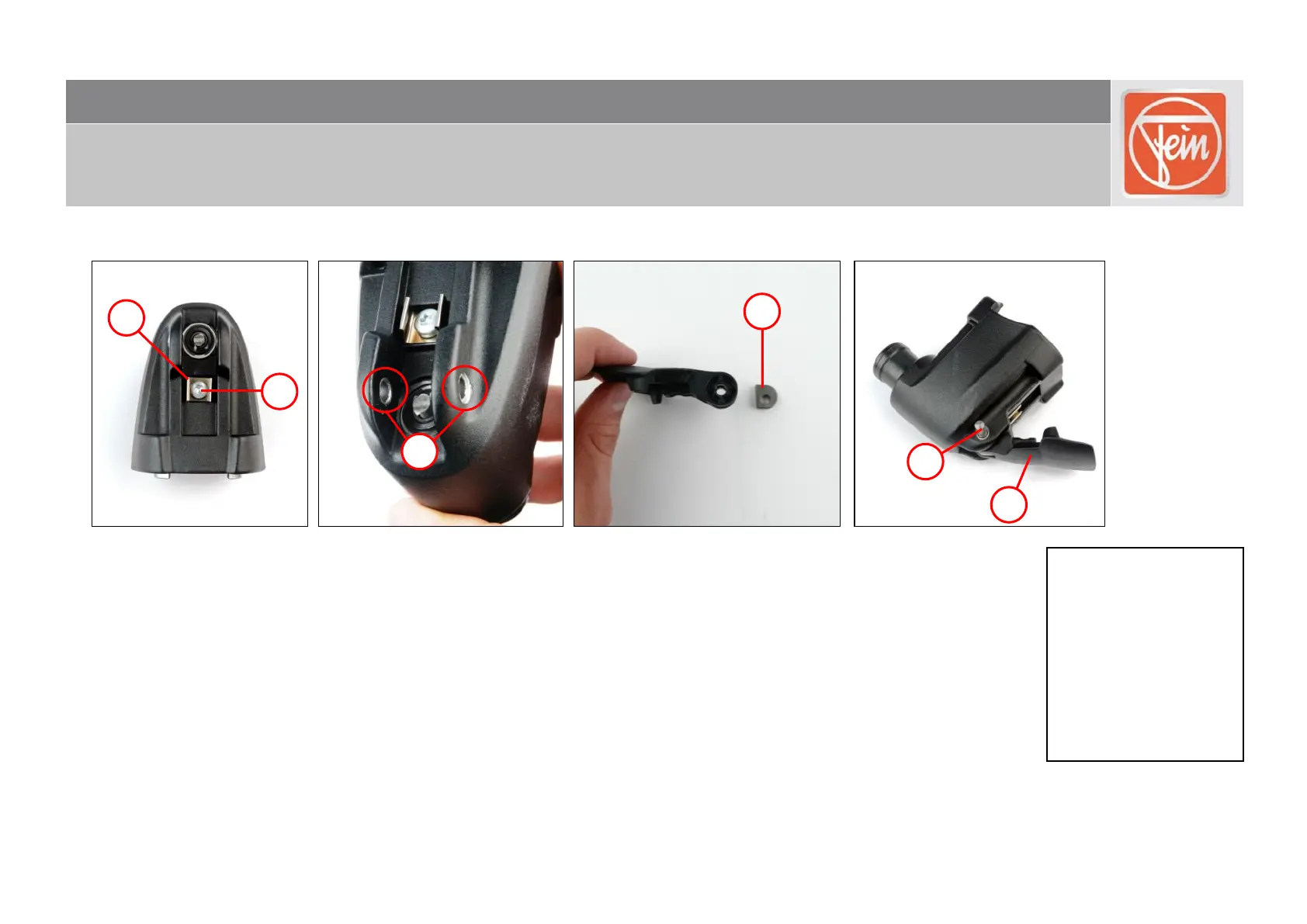

Assembling tool head (applies to FMT 250Q)
1. Secure locking spring (1) with fillister head screw (2) [2.0 ±0.1Nm].
2. Press in the two bushes (3).
 Make sure the bushes are flush with the inside.
3. Insert eccentric ring (4) in correct position into lever.
4. Place lever (5) on tool head.
5. Press in straight pin (6).
Tools:
- Torx T20
- Punch, diameter 5mm
- Punch, diameter 6mm
- Arbor press
1
4
2
3
5
6
