Assembling housing cover

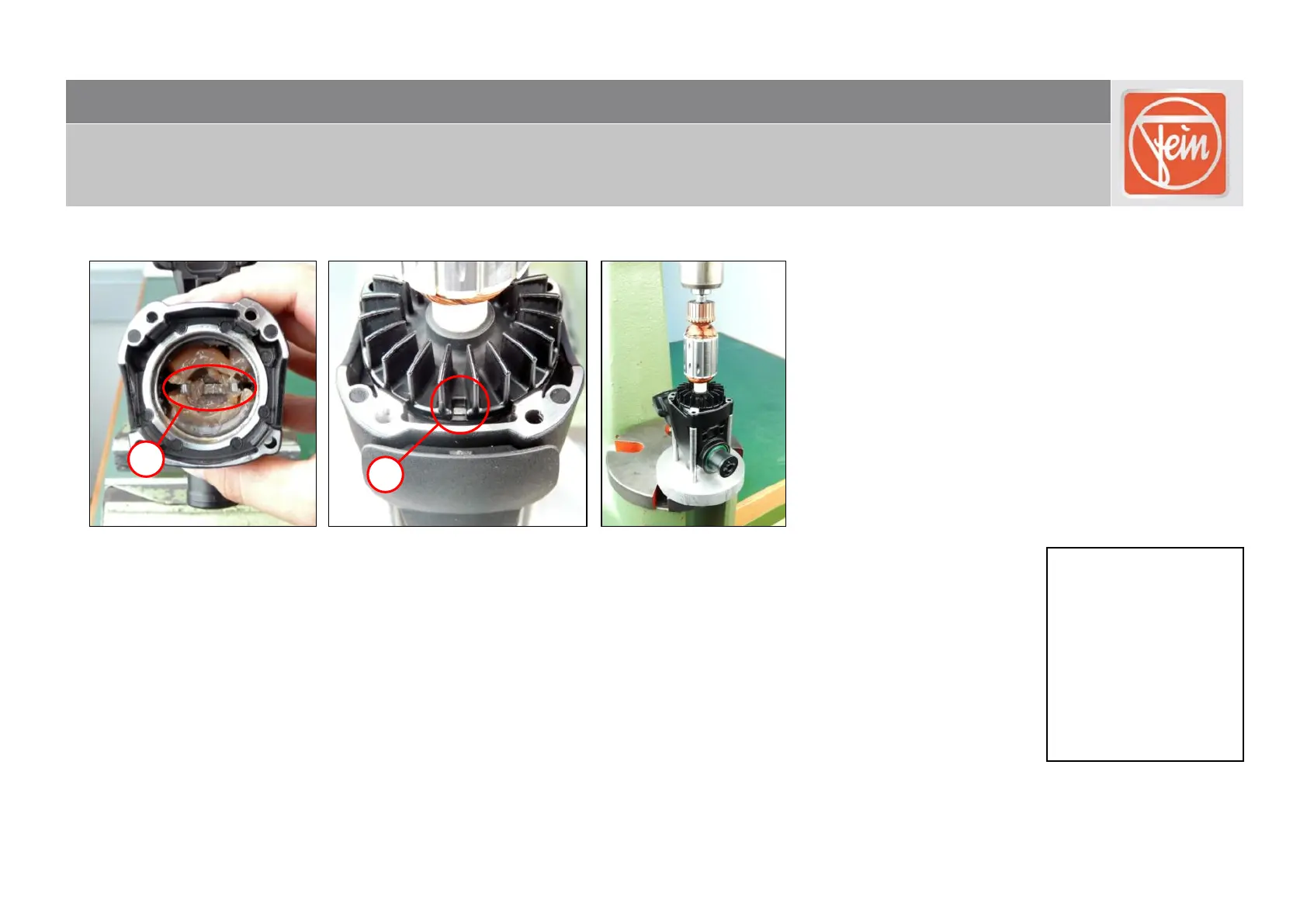

1. Fill tool head with 12g of grease.
2. Align fork centrally in tool head (1).
3. Position armature and align cut-out (2).
4. Press armature into tool head.
5. Test function by turning armature.
Tools:
- Grease 12g
- Hot air gun
- Press-in fixture
- Arbor press
1
2
