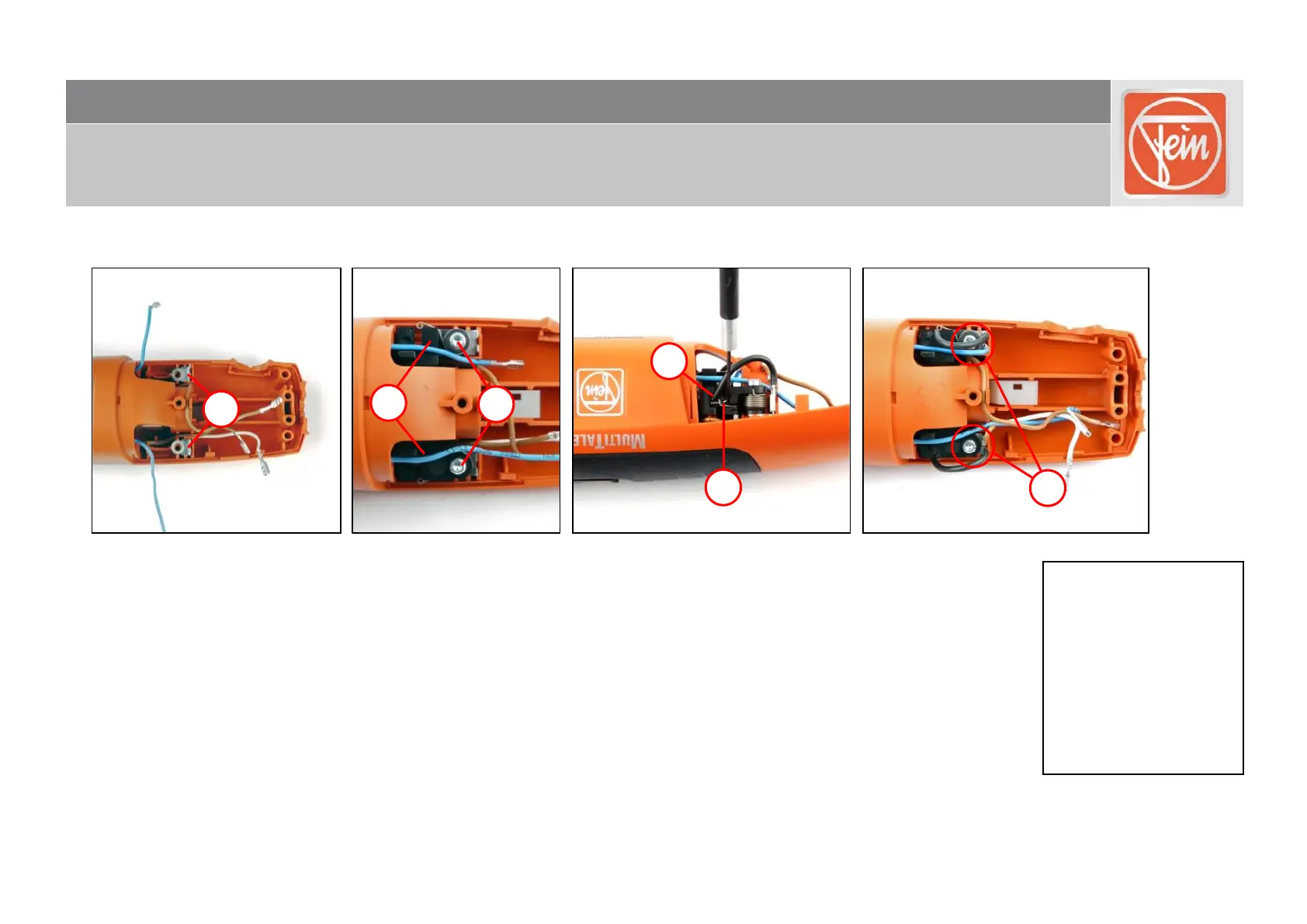

Assembling carbon brush holders and carbon brushes
1. Position the two connectors (1).
2. Position brush holders (2).
3. Secure brush holders with the two screws (3) [1.5 +0.2Nm].
4. Slide the two carbon brushes into brush holders and connect to appropriate connector (4).
5. Place spring (5) on carbon brush.
6. Connect cables (6) to distributors.
Tools:
- Torx T15
- Assembly aid
1
5
4
2
3
6
