Fein FMT 250 - Assembling Electronics (Part 1)

FMT 250; FMT 250Q; FMT 250QSL
7. Assembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 27 of 30
Assembling electronics

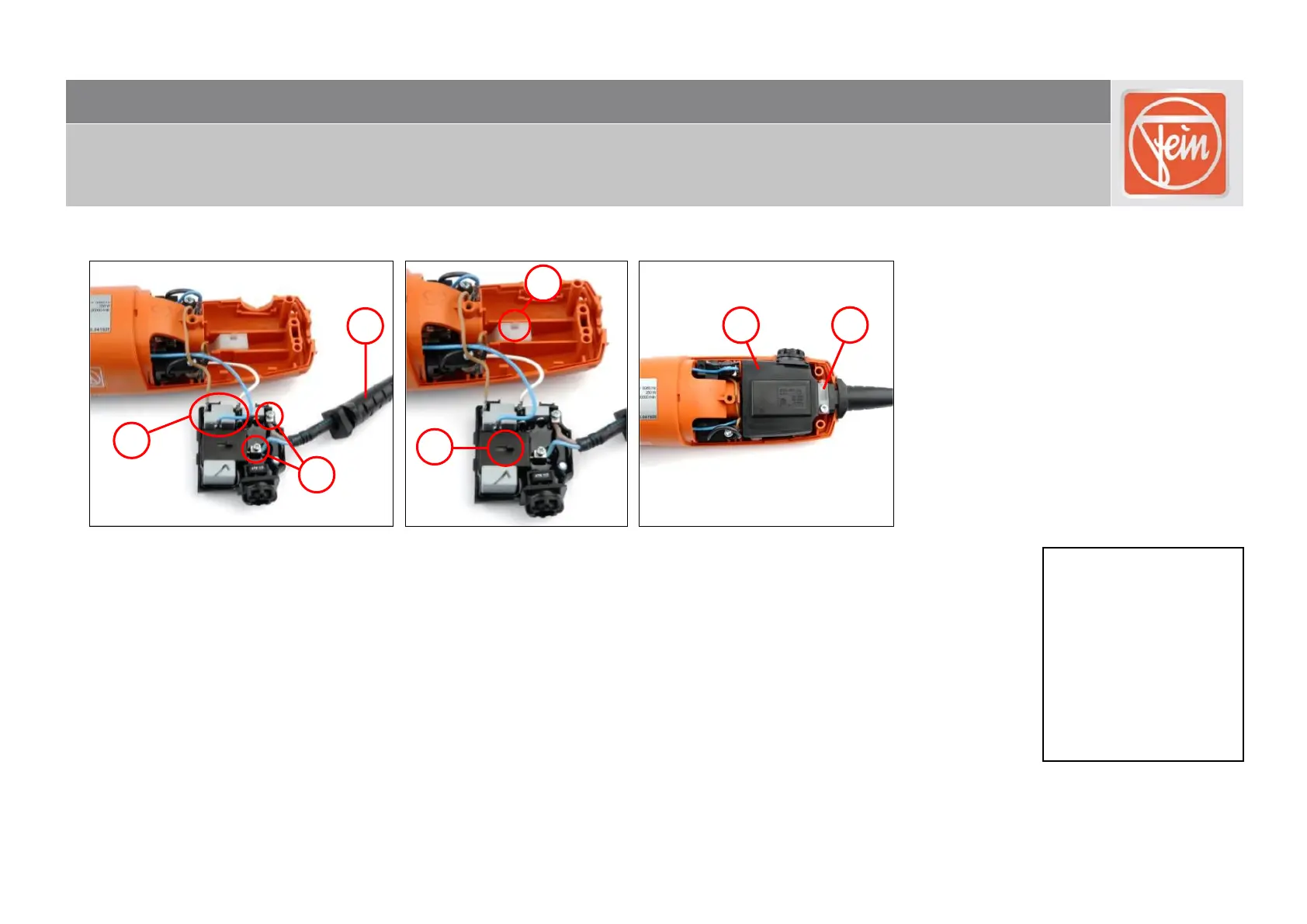

1. Slide cable grommet (1) on to cable with plug.
2. Connect cable with plug to electronics (2).
3. Connect cables of stator to electronics (3).
 When inserting the electronics, make sure the switch (4) is sitting in the control rod's cut-out (5).
4. Insert electronics (6) into motor housing.
5. Using cable clamping piece (7) and screw, secure cable with plug [1.5 +0.2Nm].
Tools:
- Cross-tip screwdriver
(small)
- Torx T15
1
3
2
6
7
4
5
