Fein FMT 250 - Assembling Electronics (Part 2)

FMT 250; FMT 250Q; FMT 250QSL
7. Assembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 28 of 30

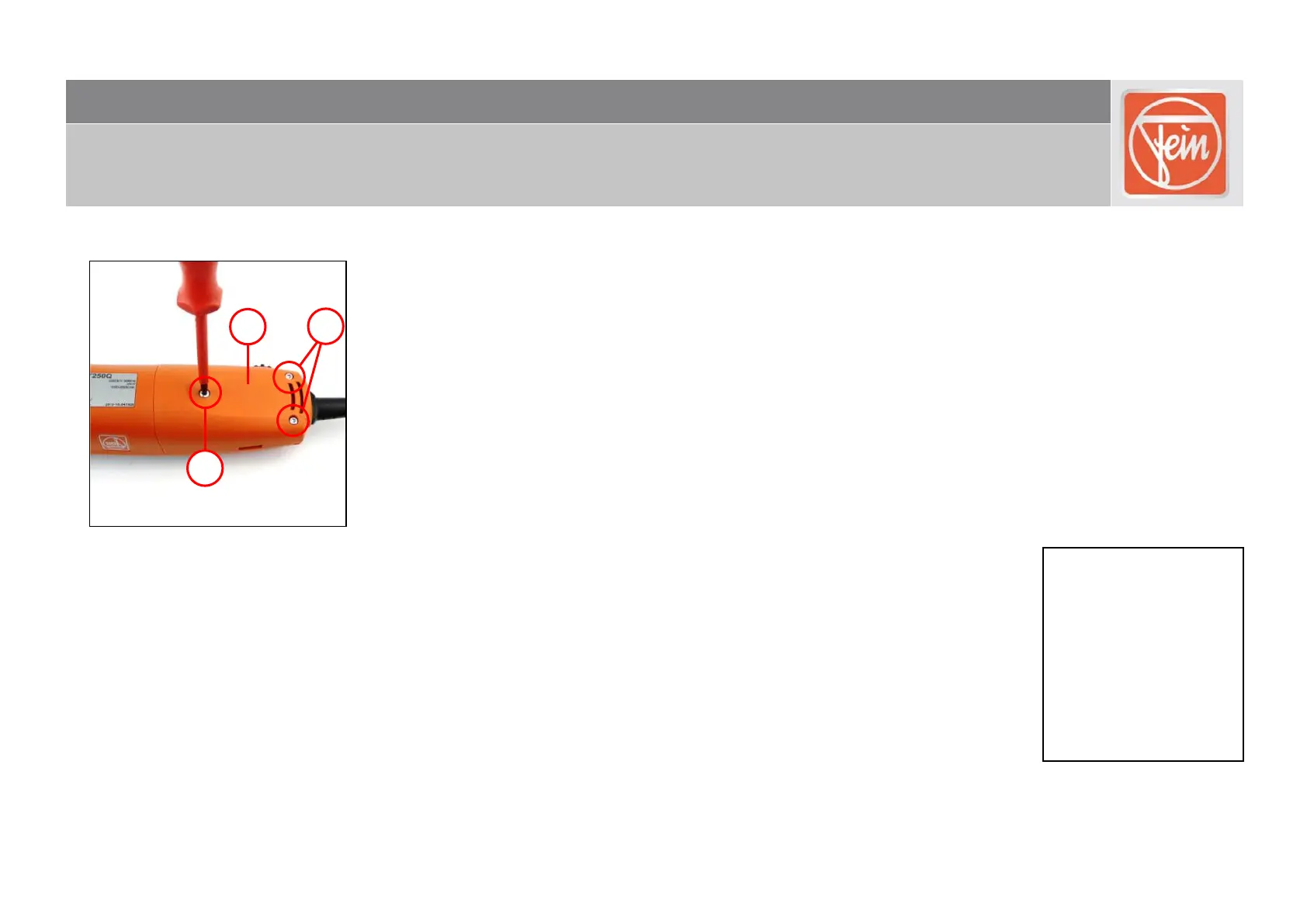

Assembling electronics
1. Place cover (1) on motor housing.
2. Screw the "4x8" screw (2) into the motor housing [1.5 +0.2Nm].
3. Screw the "3.5x20" screw (3) into the motor housing [1.5 +0.2Nm].
4. Perform safety test and then check function of tool.
Tools:
- Torx T15
2
1
3
