Fein FMT 250 - Disassembling Electronics

FMT 250; FMT 250Q; FMT 250QSL
6. Disassembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 9 of 30
Disassembling electronics

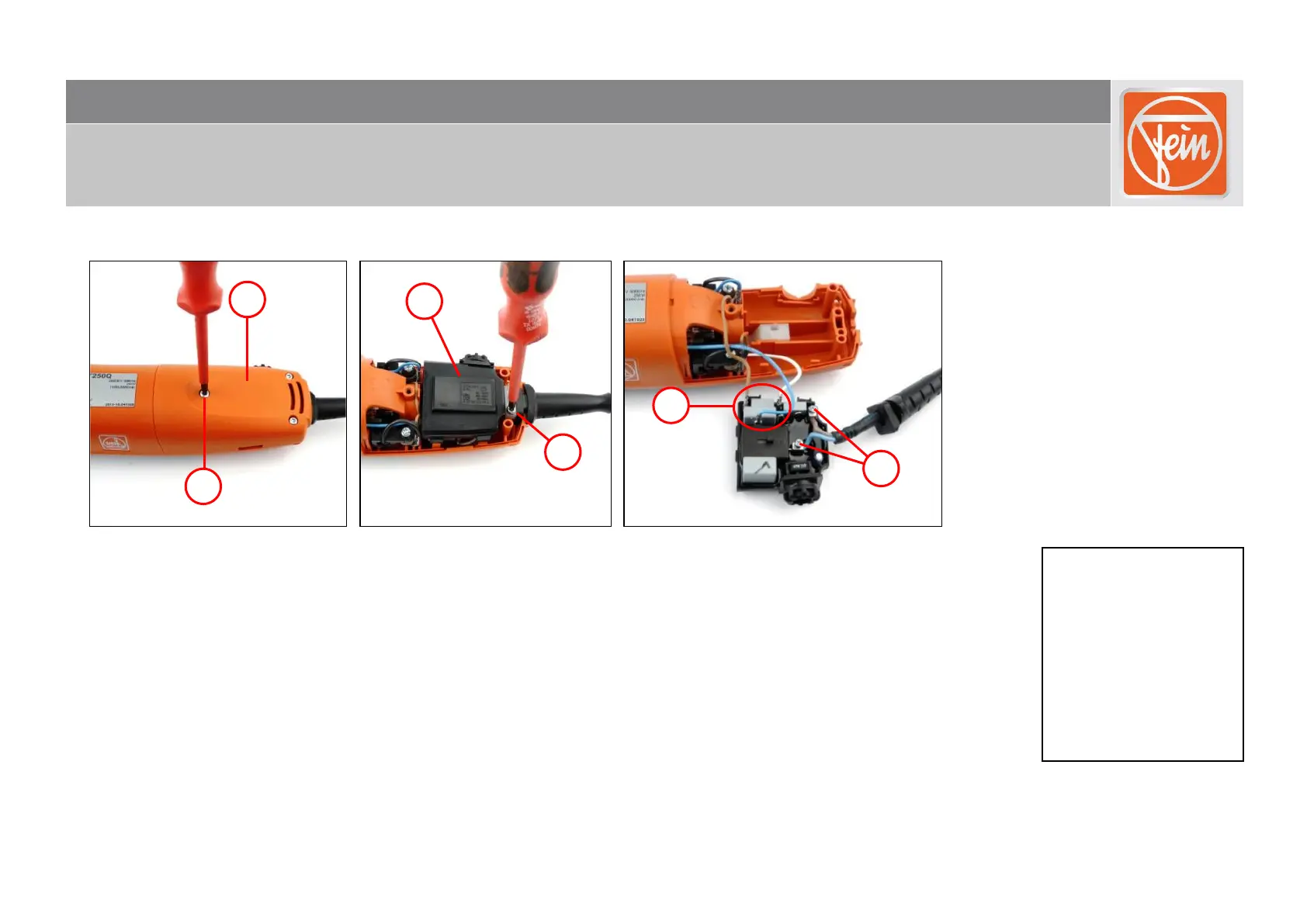

1. Remove the three screws (1) and take off cover (2).
2. Unscrew screw (3) and remove cable clamping piece.
3. Remove electronics (4) from motor housing.
4. Disconnect screw connections (5) between motor and electronics.
5. Open the two screws (6) and remove cable with plug.
Tools:
- Torx T15
- Cross-tip screwdriver
(small)
- Flat-nose pliers
