Fein FMT 250 - Disassembling Carbon Brushes

FMT 250; FMT 250Q; FMT 250QSL
6. Disassembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 10 of 30
Disassembling carbon brushes

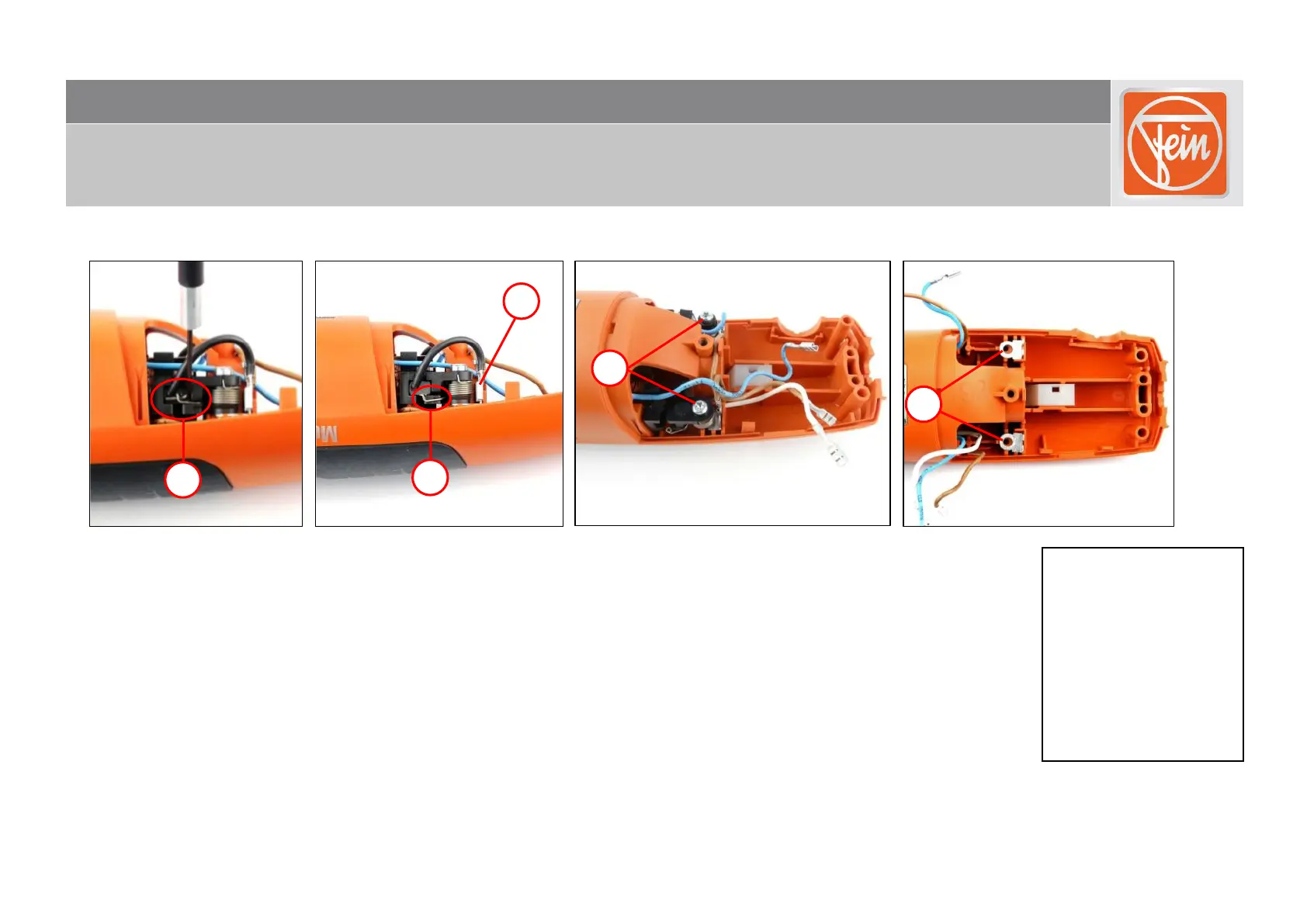

1. Raise spring (1) and lift into cut-out (2).
2. Disconnect carbon brushes (3) on both sides and remove.
3. Unscrew the two screws (4) and remove carbon holder.
4. Pull off cables and remove the two connectors (5).
Tools:
- Torx T15
- Assembly aid
1
2
4
5
3
