Fein FMT 250 - Disassembling Armature Housing

FMT 250; FMT 250Q; FMT 250QSL
6. Disassembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 11 of 30
Disassembling armature

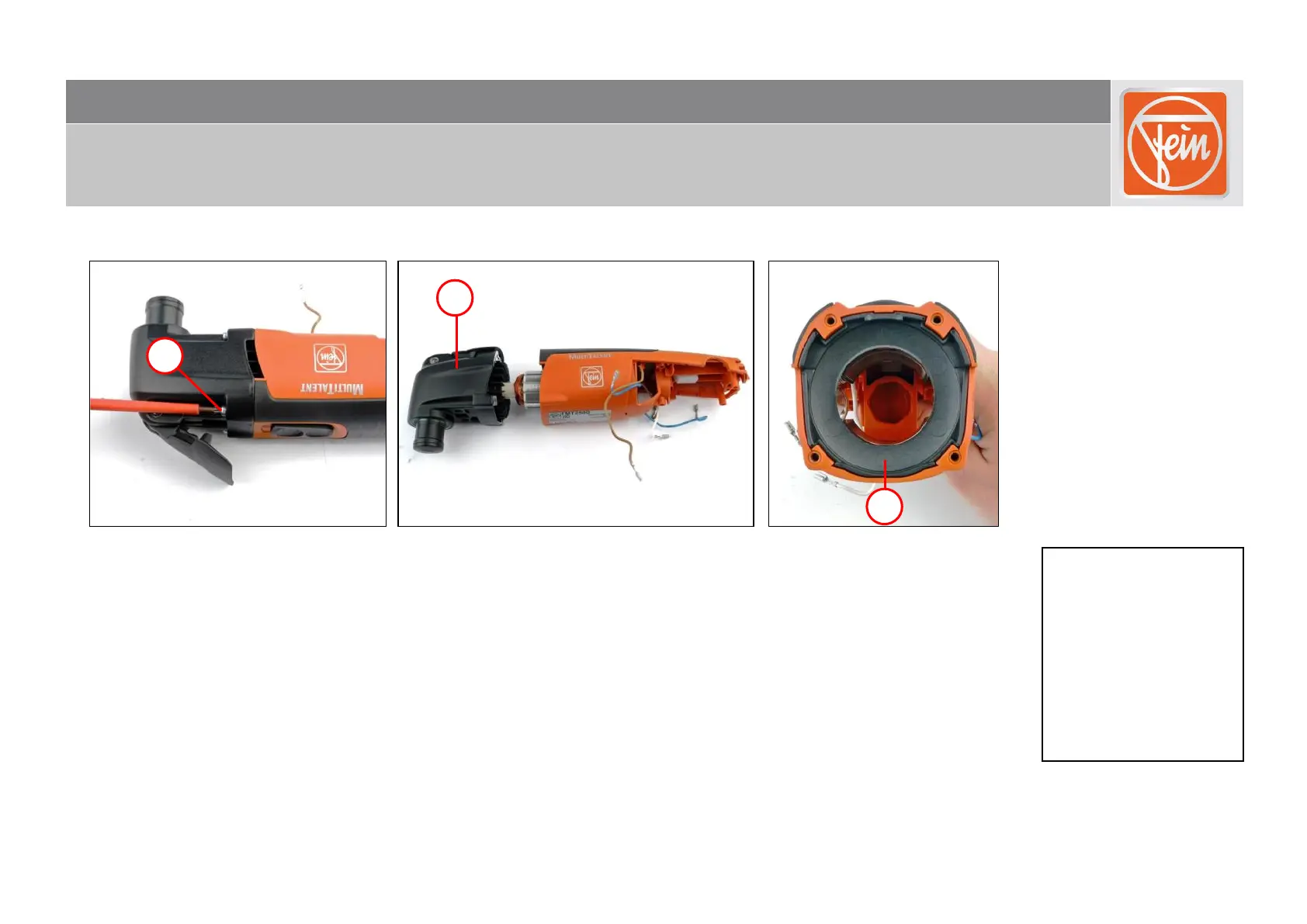

1. Unscrew the four screws (1).
2. Pull gearbox housing with armature (2) out of motor housing.
3. Remove air guide ring (3).
Tools:
- Torx T15
1
2
3
