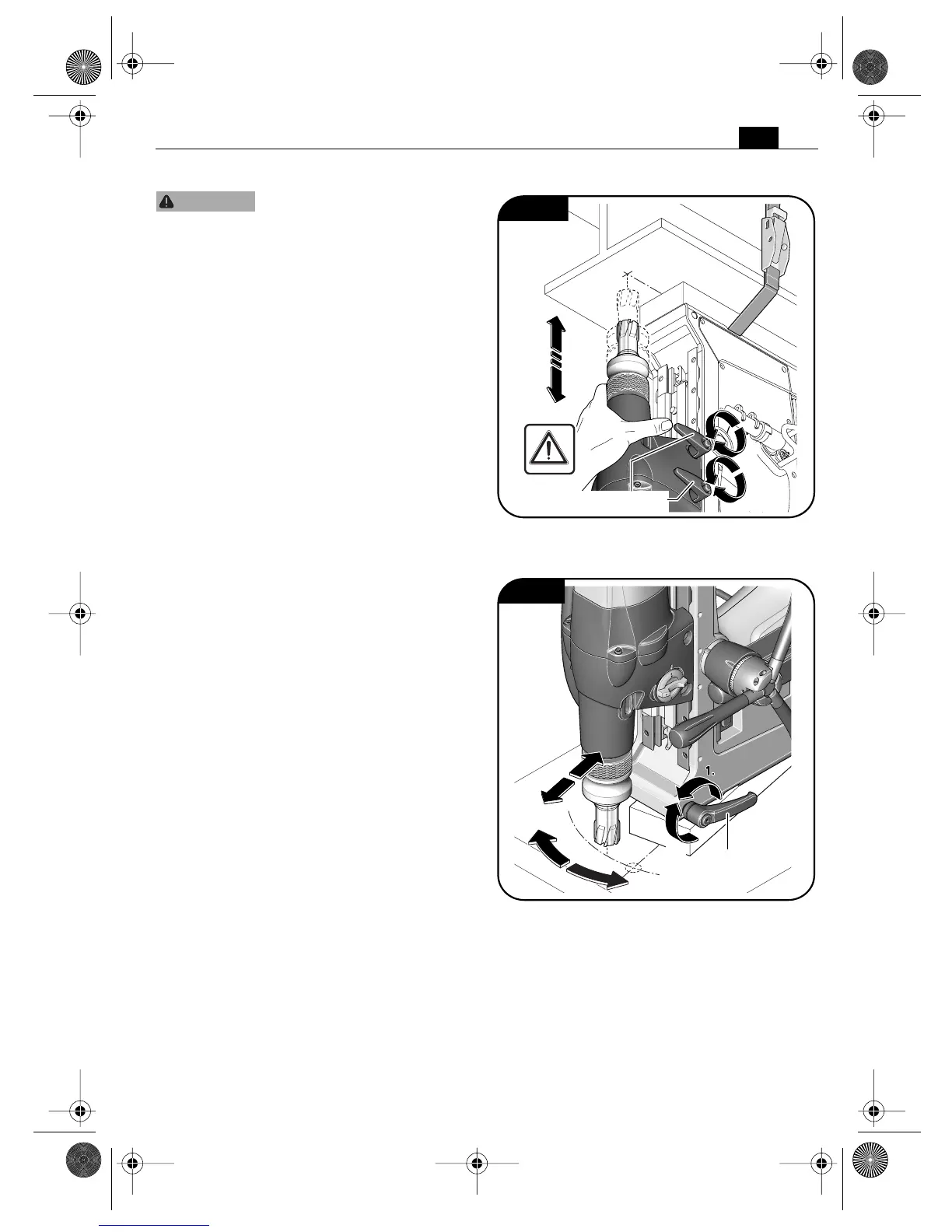

Adjusting the stroke range (Fig. 10).
Hold the machine firmly with
one hand when releasing the
two fastening levers.
➤ Release both fastening levers with the
other hand.
➤ Adjust the requested stroke range.
➤ Tighten clamping levers again.
Adjusting the working position (Fig. 11).
➤ Release the fine-adjustment clamping
lever.
➤ Adjust the desired position. The drill
stand can be moved toward the front or
rear on the magnetic foot, and can be
turned toward the right and left.
➤ Tighten the clamping lever again.
CAUTION
Fig. 10
Fastening lever
3.
2.
2.
Fig. 11
Clamping
lever
