（2） Adjust the center of gravity position of the tilting axis forward and backward: point the camera lens
horizontal forward, adjust cross arm to maintain the level as shown in figure ①,let go and observe the
state of rotation.

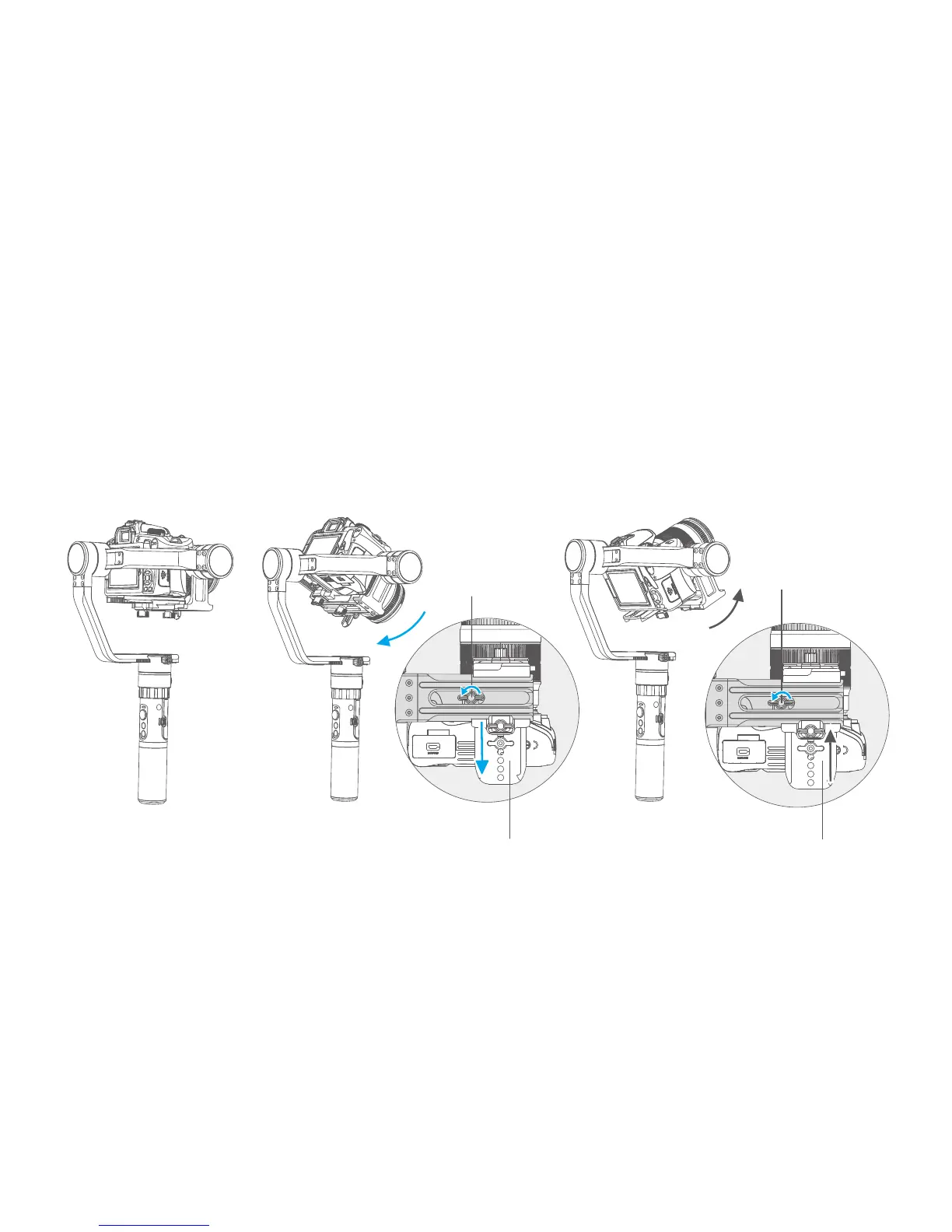

Loosen the screw on the bottom of the camera and adjust the balance by sliding the adjustment
skateboard up and down at the bottom of the camera(refer to figure ② ③).
① ② ③
* After adjustment, be sure to tighten the lock screw.
Camera forward Camera backward
Balanced
Thumb screw
Thumb screw
Slide the adjustment
skateboard
down to adjust
Slide the
adjustment
skateboard
up to adjust
