17
When the balance adjustment of tilting axis and rolling axis is
completed, the balance of the panning axis can be adjusted.

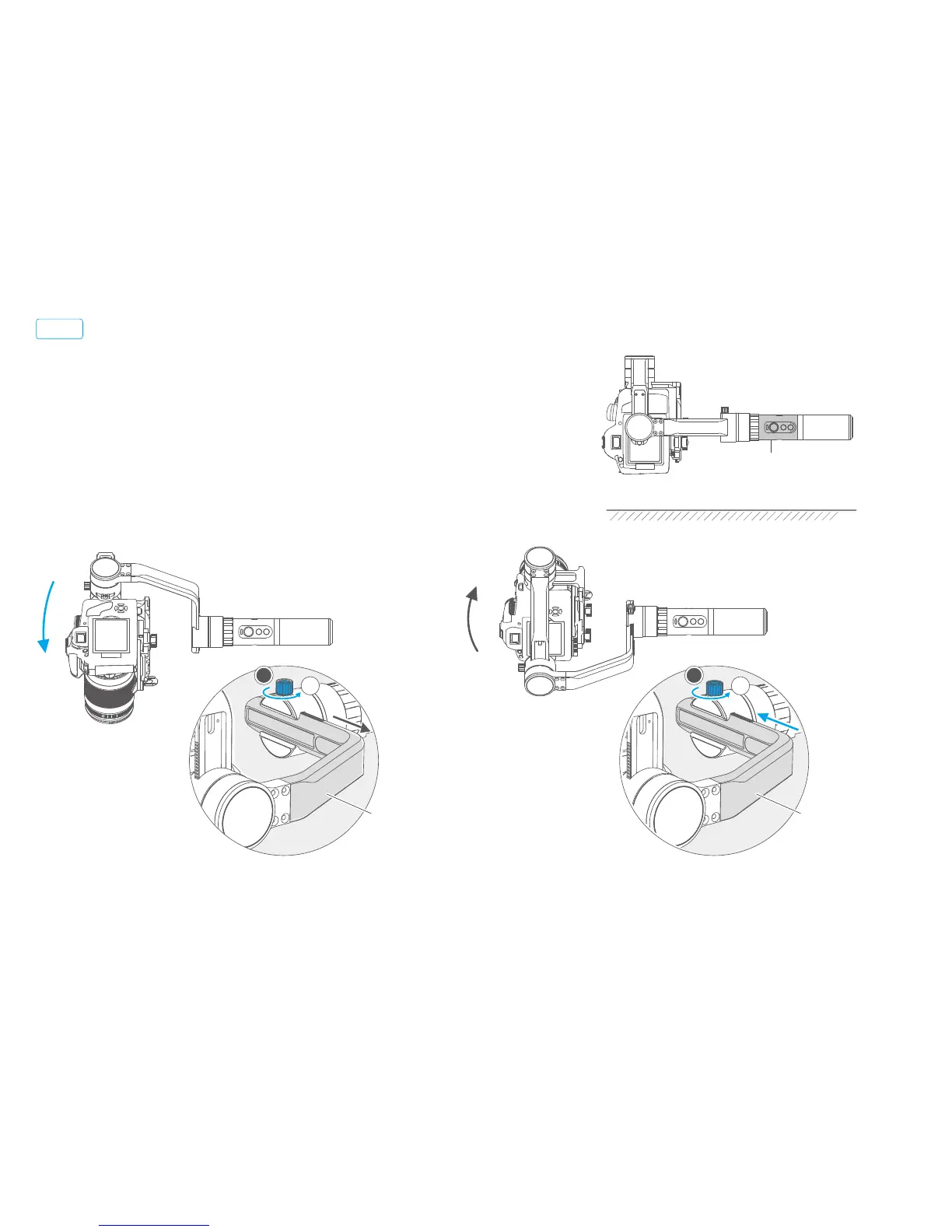

Keep the gimbal socket connector in the horizontal position,
adjust hand-held panning axis as shown in figure ①,let go and
observe the state of rotation.
Loosen the lock screw on the panning and slide the vertical
arm forward and backward to adjust (refer to figure ② ③).
STEP��3
L L
①
②
③
* After adjustment, be sure to tighten the lock screw.
Horizontal ground
Socket connector
Best balance
Vertical arm
Slide the vertical arm backward to adjust Slide the vertical arm forward to adjust
The lens is down
The lens is up
Balance Adjustment of the Panning Axis
T
T
Vertical arm
