FeiYu Tech A2000 - Balance Adjustment of the Rolling Axis

16
STEP��2
T
L
T
L
When the balance adjustment of tilting axis completed, the balance of the rolling axis can be adjusted:
keep the gimbal socket connector vertical to the ground with the hand-held control handle as shown in
figure ①, leave the gimbal powered off and observe the balance. Loosen the lock screw and slide the
cross arm left and right to adjust the roll(refer to figure ② ③).

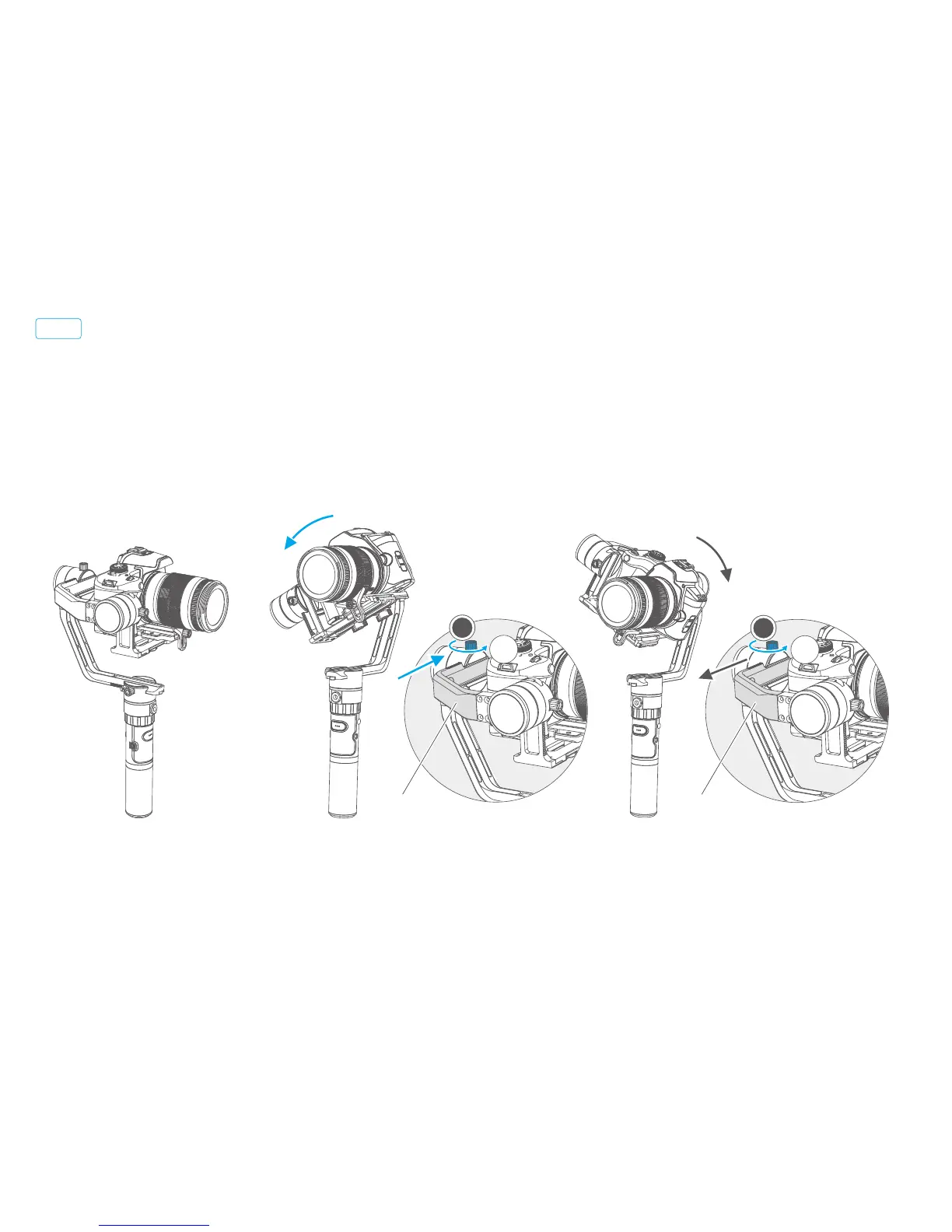

① ② ③
Balance Adjustment of the Rolling Axis
* After adjustment, be sure to tighten the lock screw.
Camera leftward
Slide the cross arm right to adjust Slide the cross arm left to adjust
Camera rightward Balanced
Cross arm
Cross arm
