9. Balance Adjustment
14
STEP��1
（1）

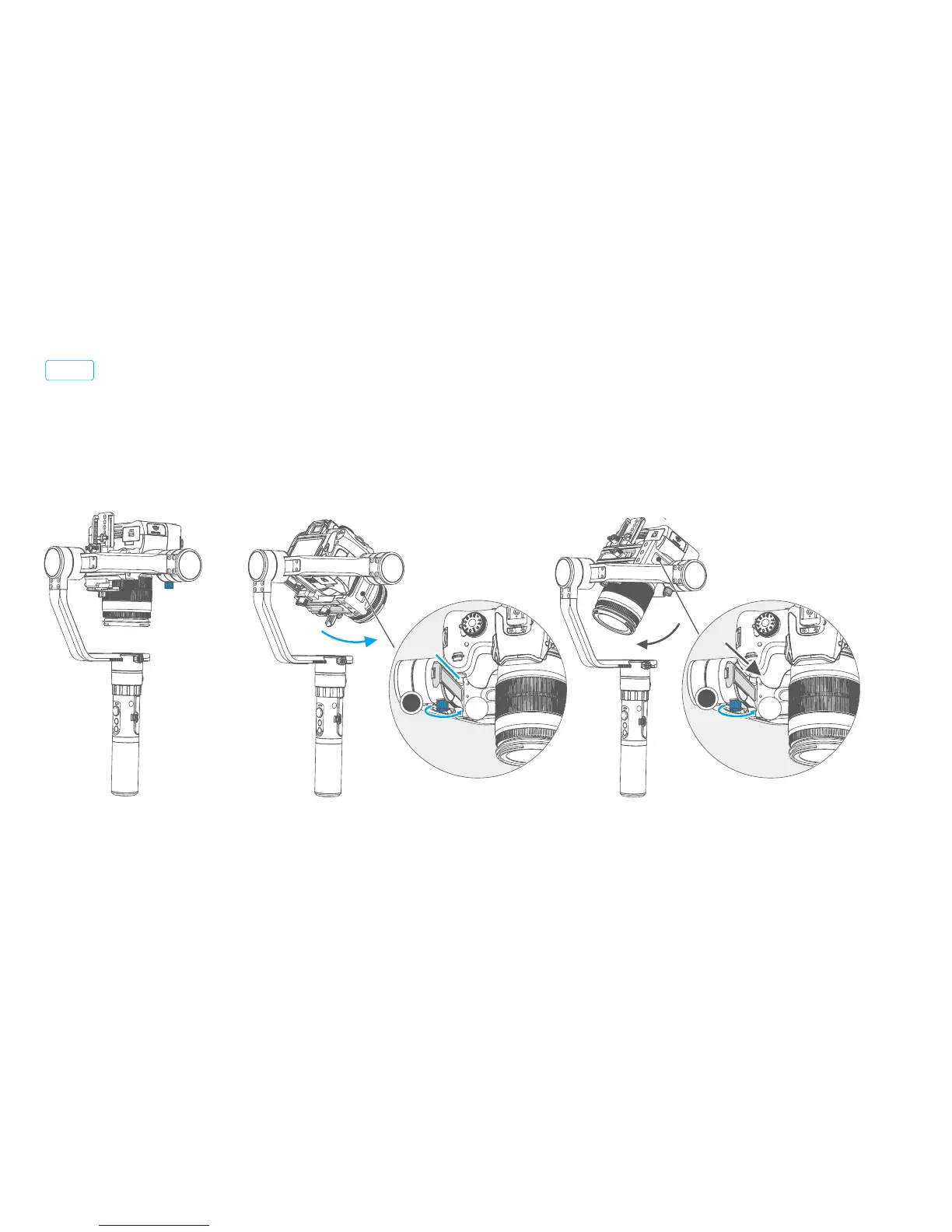

Adjust the center of gravity position of the tilting axis up and down: point the camera lens down,
adjust cross arm to maintain the level, as shown in figure ①, let go and observe the state of rotation.
Adjust the balance via adjust the sliding arm up and down(refer to figure ② ③).
Adjust the center of gravity of the camera in two steps to the axis of rotation of the tilting axis.
L
T
L
T
① ② ③
Balance Adjustment of the Tilting Axis
* After adjustment, be sure to tighten the lock screw.
Normal vertical
Camera forward
Camera backward
Slide the
sliding arm up to adjust Slide the sliding arm down to adjust
