2. INTRODUCTION
•Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
•Compatible for PV systems in 12V, 24V or 48V
•Three-stage charging optimizes battery performance (Two-stage charging in lithium battery mode)
•Maximum charging current up to 30A / 45A / 60A / 80A / 100A / 120A
•Maximum efficiency up to 98%
•Automatic battery voltage detection(Lithium battery voltage needs to be set manually)
•Supports lithium battery and various lead-acid batteries, AGM and gel battery
•Integrated intelligent slot compatible with MODBUS communication
2.2 Product Overview
2.1 Features
MPPT solar charge controller MPPT solar charge controller
1.1 Purpose
This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read
this manual carefully before installations and operations. Keep this manual for future reference.
1.2 Scope
This manual provides safety and installation guidelines as well as information on tools and wiring.
1.3 SAFETY INSTRUCTIONS
WARNING: This chapter contains important safety and operating instructions. Read and keep
this manual for future reference.
1. Before using the unit, read all instructions and cautionary markings on the unit, the batteries and all
appropriate sections of this manual.
2. Do not disassemble the unit. Take it to a qualified service center when service or repair is required.
Incorrect re-assembly may result in a risk of electric shock or fire.
3. To reduce risk of electric shock, disconnect all wirings before attempting any maintenance or cleaning.
Turning off the unit will not reduce this risk.
4. CAUTION – Only qualified personnel can install this device with battery.
5. NEVER charge a frozen battery.
6. For optimum operation of this charger, please follow required spec to select appropriate cable size. It’s
very important to correctly operate this charger.
7. Be very cautious when working with metal tools on or around batteries. A potential risk exists to drop a
tool to spark or short circuit batteries or other electrical parts and could cause an explosion.
8. Please strictly follow installation procedure when you want to disconnect PV or battery terminals. Please
refer to Installation section of this manual for the details.
9. GROUNDING INSTRUCTIONS -This charger should be connected to a permanent grounded wiring
system. Be sure to comply with local requirements and regulation to install this charger.
10. NEVER cause short circuited on battery output.
11. Warning!! Only qualified service persons are able to service this device. If errors still persist after following
troubleshooting table, please send this charger back to local dealer or service center for maintenance.
1 ABOUT THIS MANUAL

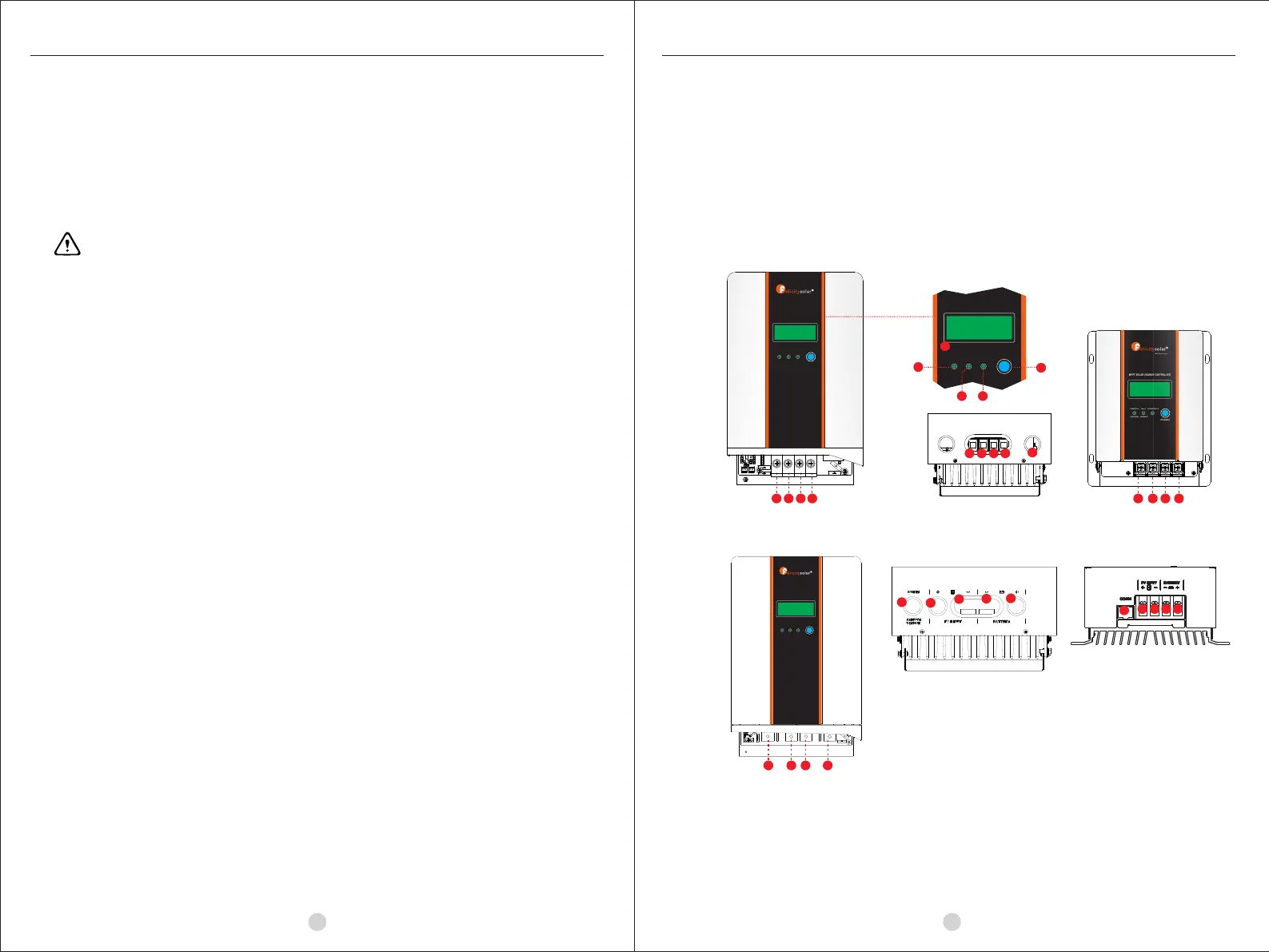

1. LCD display 2. Power On/Charging indicator 3. Fault and warning indicator
4. Wiring fault indicator 5. Operation button 6. PV Positive +
7. PV Negative - 8. Battery Negative - 9. Battery Positive +
10. Communication Port
Thank you for selecting this solar charge controller. This solar charge controller is an advanced solar
charger with maximum power point tracking. Applying intelligent MPPT algorithm, it allows solar charge
controller to extract maximum power from solar arrays by finding the maximum power point of the array.
The MPPT battery charging process has been optimized for long battery life and improved system performance.
Self-diagnostics and electronic error protections prevent damage when installation errors or system faults
occur. This charger also features multifunctional LCD with communication ports for remote battery
temperature and voltage measurement.
6 7 8 9
100A / 120A
(12V / 24V / 48V)
6
7
8
9
10
Make life full of hope
MPP T SOLAR C HARGE C ONTRO LLER
POWER ON FAULT WIRING FAULT
CHARGING WARNING
ON/ME NU
6 7 8 9
45A / 60A / 80A
(12V / 24V / 48V)
Make life full of hope
MPP T SOLAR C HARGE C ONTRO LLER
POWER O N FAU LT WIRING FAULT
CHARG ING WARNING
ON/M ENU
6 7 8 9
10
MPPT SOLAR CHARGE CONTROLLER
POWE R ON FAULT WIRI NG FAULT
WARNI NG
ON/ MENU
1
3 4
5
2
CHAR GING
30A/45A(12V / 24V)
Make life full of hope
MPP T SOLAR C HARGE C ONTRO LLER
POWER ON FAULT WIRING FAU LT
CHARGING WARNI NG
ON/M ENU
6 7 8 9
100A / 120A (12V / 24V / 48V)
45A / 60A / 80A
(12V / 24V / 48V)
30A/45A(12V / 24V)
10
6 7 8 9
To Next Page
