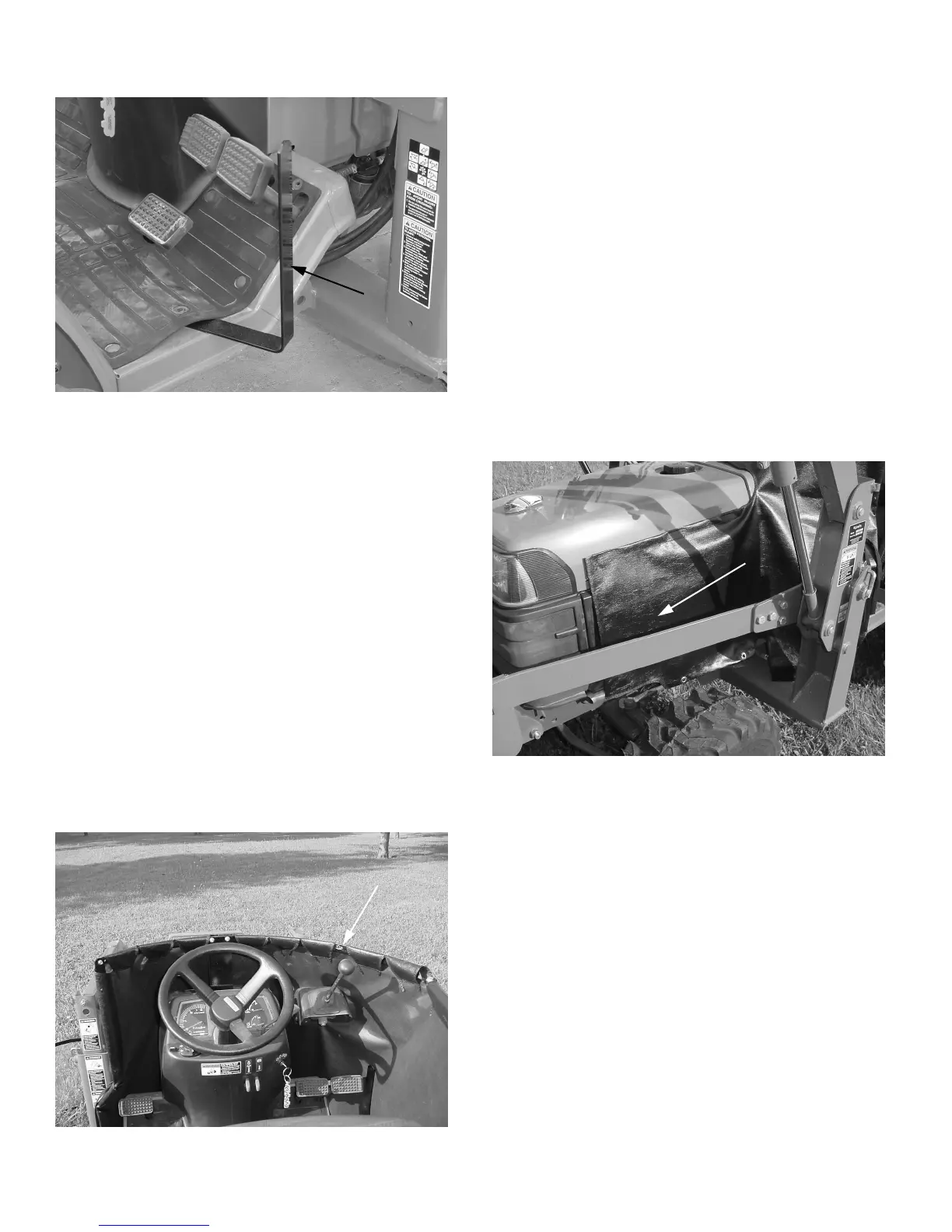

Femco B7410 - Pedal Guard; Motor Cover; Yoke

1. Remove plastic plug from floor mat and drill hole out
to 9/32” diameter.
2. Attach pedal guard (A) using one 1/4” x 3/4” bolt and
nut.
PEDAL GUARD
1. Arrange motor cover over hood of tractor.
2. Slide 3” hem of motor cover down over top of door
post.
MOTOR COVER
1. Insert yoke into top 3” of motor cover.
2. Attach yoke to yoke bracket using two 1/4” x 3/4”
bolts and nuts.
3. Attach yoke to door post using one 1/4” x 1” bolt and
nut. Note: head of bolt inside, nut outside.
YOKE
A
A
