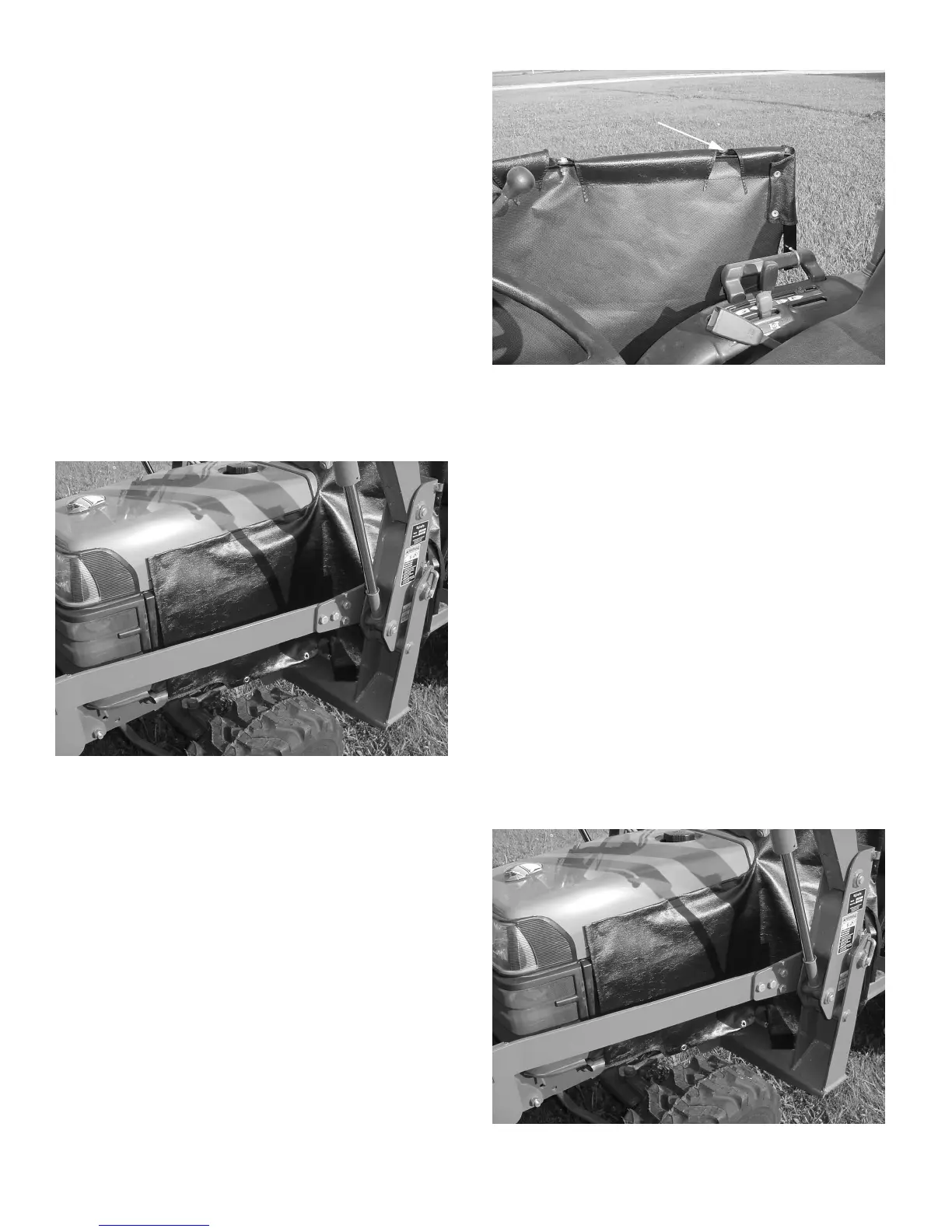

1. Slide side arm (A) into 3” hem of motor cover.
2. Attach side arm to yoke using one 3/8” x 1” bolt and
nut. Head of bolt up, nut down.
3. Attach rear of side arm to grab handle using one “U”
bolt and nut.
4. Tighten all bolts.
SIDE ARM
A
1. Cut plastic Dual Lock® into 2” lengths.
2. Surface must be cleaned with a mild detergent to as-
sure proper application of Dual Lock® strips.
NOTE: Do not peel the backing from the Dual Lock.
3. Apply cut Dual Lock® to all Dual Lock® sewn to mo-
tor cover.
4. Arrange motor cover to tractor. Peel backing from
Dual Lock® and apply to tractor. Repeat this proce-
dure for all Dual Lock®.
Dual Lock® a registered trademark of 3M Co.
1. Thread cloth strap through grommets at bottom of
motor cover and tie.
2. Route cloth straps to other side or to a point on tractor
and tie.
IMPORTANT:
Cloth straps are not to be attached to any moving, rotat-
ing, or heat generating points of the tractor. Any excess
cloth straps are to be cut off
TIE STRAPS
