CABINET PLACEMENT

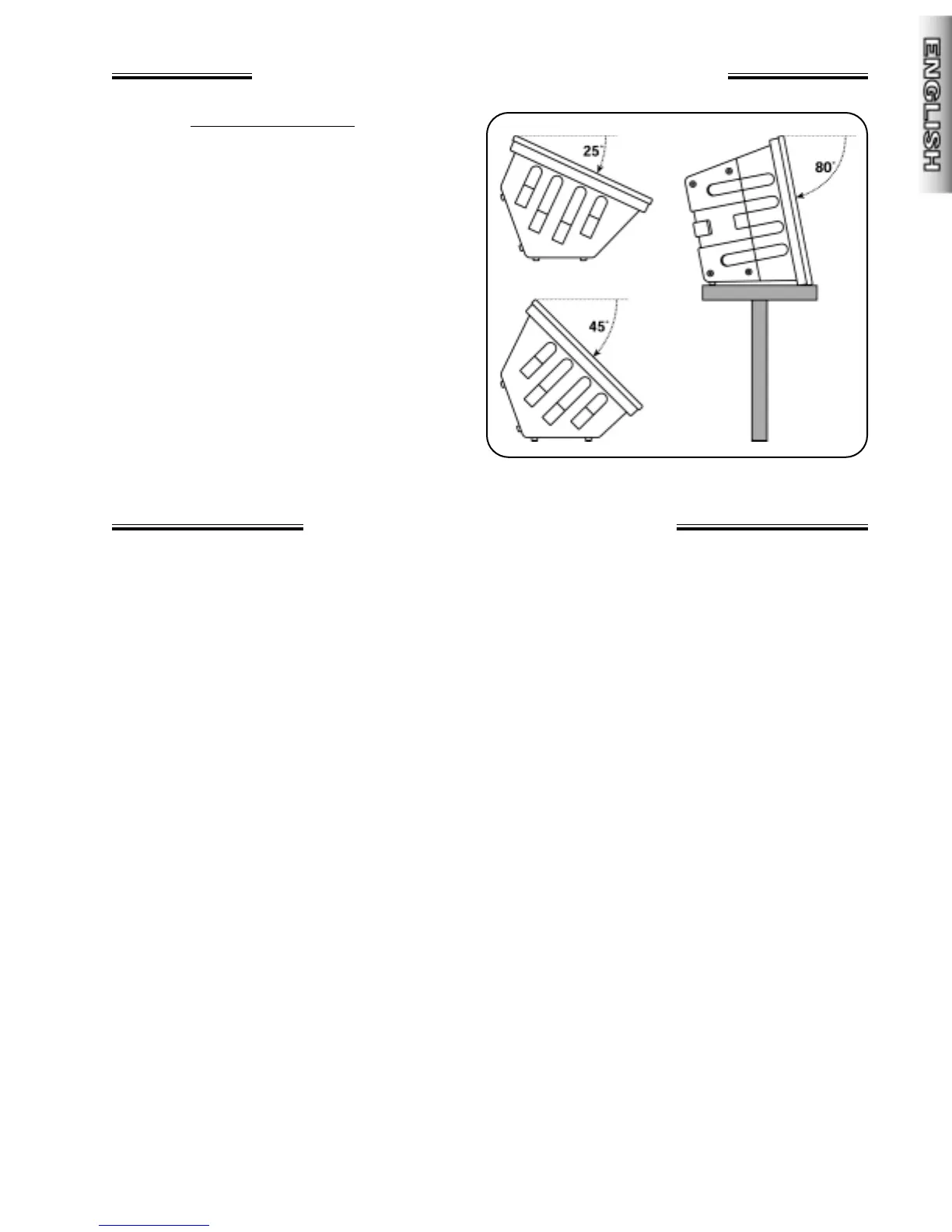

The cabinet can be positioned at three
different angles to accommodate various
stage sizes and performer movements
(Figure B).
25-degrees for small-size stages and for
performers that stay close to the 11227700PP
Monitor.
45-degrees for medium-size stages and for
performers that move farther from their
11227700PP Monitor.
80-degrees for near-field use when the 11227700PP
Monitor is placed on a pedestal raising it to ear
level.
Reduce feedback potential by using cardioid
pattern microphones and keeping them pointed
away from speakers.
TYPE: PR 435
PART NUMBER: 071-1271-000 (120V, 60Hz) US, 071-1271-060 (230V, 50Hz) Eur,
071-1271-040 (230V, 50Hz) UK, 071-1271-030 (240V, 50Hz) Aust
POWER REQUIREMENTS: 360W
POWER OUTPUT: 100W, THD <0.5% (bi-amped)
INPUTS: XLR balanced, mic-level (MIC input supplied with full-time 15V phantom power),
1/4” TRS balanced/unbalanced, line-level (LINE);
1/4” TS unbalanced, line level (AMP IN)
OUTPUTS: 1/4” TS unbalanced, line-level (LINE OUT)
FREQUENCY RESPONSE: 110Hz–20kHz
MAXIMUM OUTPUT SPL at 1M: 109dB (continuous), 115dB (peak)
INPUT SENSITIVITY: LINE: 100mV RMS, -20dBV, MIC: 10mV RMS, -40dBV
AMP IN: 1V RMS, 0dBV (LEVEL @ maximum for all three inputs)
TONE CONTROL: +/-10dB at 12kHz
LOW FREQUENCY DRIVER: One 10 in. 4 ohm woofer, with a 2” voice coil (P/N0055911000)
HIGH FREQUENCY DRIVER: One Piezoelectric compression driver, with a 1 1/2” diaphragm (P/N 0055741000)
CROSSOVER FREQUENCY: 2.2kHz
COVERAGE ANGLE: 90 degrees symmetrical at 2kHz
DIMENSIONS: Height: 13 3/8 in. (34 cm)
Width: 13 3/8 in. (34 cm)
Depth: 9 1/8 in. (23.2 cm)
WEIGHT: 22 lbs. (10 kg)
Product specifications are subject to change without notice.
