Troubleshooter’s checklist
-Is the power cord properly plugged into an electrical outlet?
-Is there power at the outlet?
-Is the volume control on the instrument turned up?
-Is your instrument properly plugged into the Reverb Unit?
-Does the guitar and amplifier work properly without the Reverb Unit?
(If so, then eliminate all other effects and try different guitar cords.)
-If, after checking all the above, the system is still not operating
properly, consult your authorized Fender Service Dealer.
‘63 Fender Reverb specifications
Brown W/Tan grille Black W/Silver grille Blonde w/OxbIood grille
Part Number: 120V Version: 21-7500 021-7501 021-7502
230V Version: 21-7560 021-7561 021-7562
Input Impedance: 520k Ohms
Nominal Gain: Mixer fully CCW: I (With Mixer turned above “‘I gain varies
from pan to pan and with frequency)
Power Requirement: 120V Version: 120 Volts AC, 60Hz, 45W Maximum
230V Version: 230 Volts AC, 50Hz, 45W Maximum
Dimensions: Height: 10 1/2’ (26.7 cm)
Width: 18 7/8’ (47.9 cm)
Depth: 7 1/2’ (19.0 cm)
Weight: 13 Lbs. (5.9 kg)

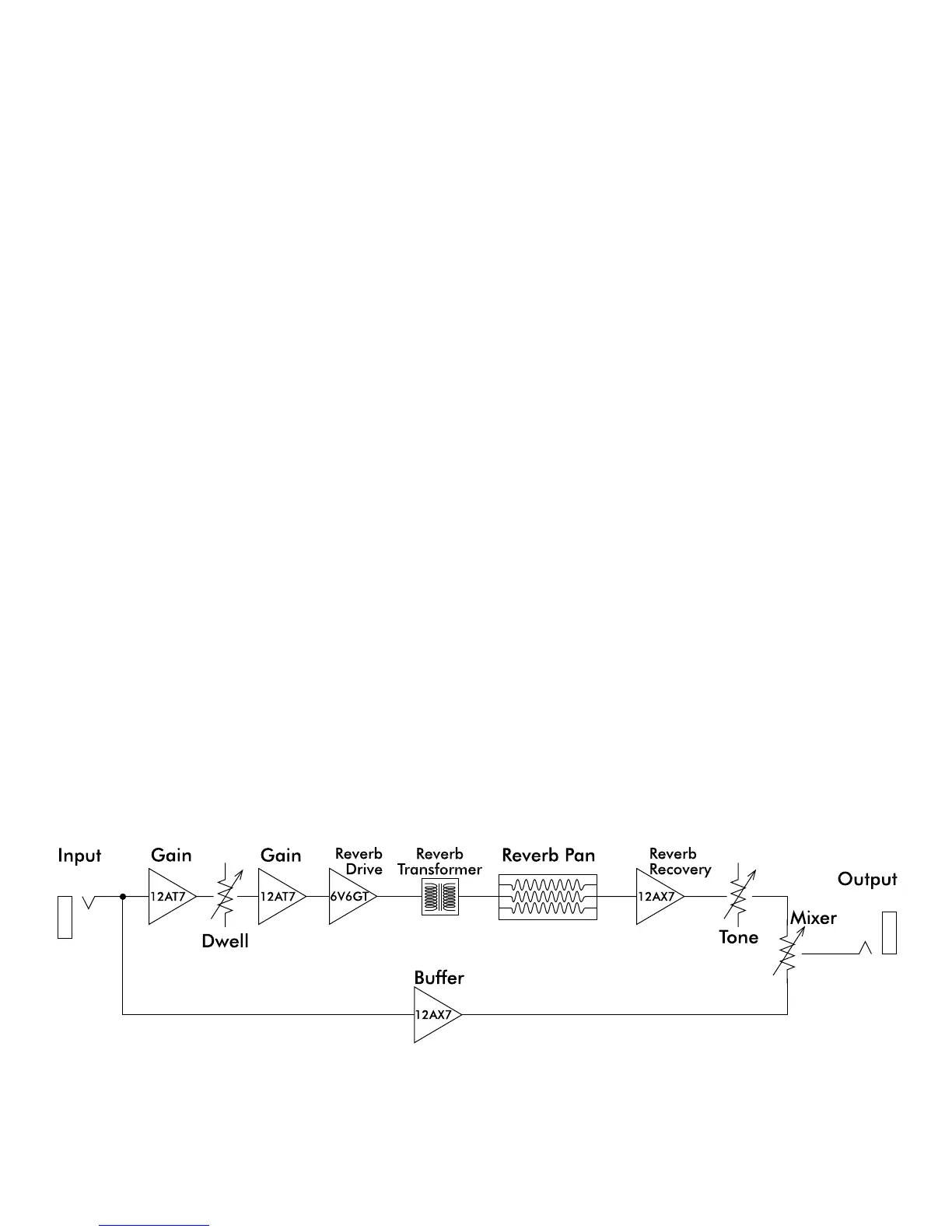

‘63 Fender Reverb Block Diagram
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.,
CORONA, CA 91720
