Fender Acoustasonic 150 - Rear Panel Connections; Power and Ground Lift; Audio Outputs and Loops; USB Port

7

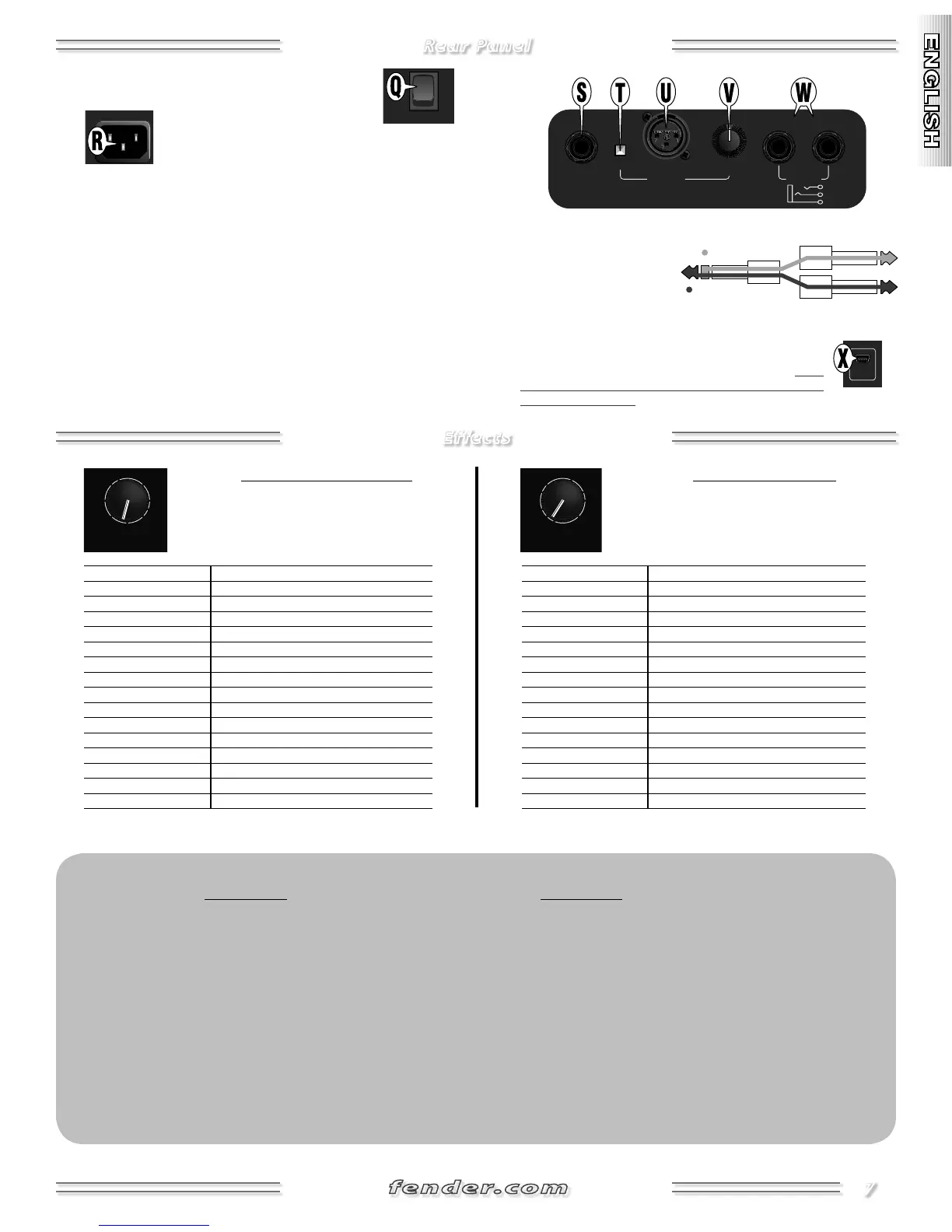

Rear Panel
Effects
Q. POWER  Switches the unit on-off.
R. IEC POWER INPUT SOCKET  Connect to a ground-
ed outlet using the supplied power
cord in accordance with the voltage
and frequency specifications shown on the rear panel
of your amplifier.
S. FOOTSWITCH  Connect the optional -button footswitch (P/N
) to enable remote on/off switching of the effects for each
channel.
T. GROUND LIFT  Press in to disconnect the ground connection (pin
) of the Balanced Line Out jack which may reduce line noise in some
situations. Normally leave this button in the out position (grounded).
U. BALANCED LINE OUT  XLR output jack for connection to external
sound equipment.
V. LEVEL  Adjusts the output level of the BALANCED LINE OUT JACK {U}
jack. Use to accommodate the input sensitivity of your external sound
equipment.
W. STEREO FX LOOP ACOUSTASONIC  ONLY  Effects loop jacks
for stereo effects devices.
Connect SEND to your
effects device input and
RETURN to the effects out-
put using "Y-cords."
X. USB PORT  Connect the USB port on the amplifier to the USB port
on your computer to stream audio to a wide variety of
software applications. The USB port can also be used to
update the firmware on your amplifier. Please visit www.
fender.com/support/articles/updating-the-firmware-on-the-
acoustasonic-amplifier for details.
US B
INPUT POWER
350W
POWER
ON
OFF
FOOTSWITCH
BALANCED
BALANCED
LINE OUT
LEVEL
GR OUND
LIFT
LE FT
RI GH T
GR OU ND
RETURN /
PWR AMP IN
SEND /
PREAMP OUT
STEREO
FX LOOP
120V 60Hz
US B
INPUT POWER
350W
POWER
ON
OFF
FOOTSWITCH
BALANCED
BALANCED
LINE OUT
LEVEL
GR OUND
LIFT
LE FT
RI GH T
GR OU ND
RETURN /
PWR AMP IN
SEND /
PREAMP OUT
STEREO
FX LOOP
120V 60Hz
US B
INPUT POWER
350W
POWER
ON
OFF
FOOTSWITCH
BALANCED
BALANCED
LINE OUT
LEVEL
GR OUND
LIFT
LE FT
RI GH T
GR OU ND
RETURN /
PWR AMP IN
SEND /
PREAMP OUT
STEREO
FX LOOP
120V 60Hz
US B
INPUT POWER
350W
POWER
ON
OFF
FOOTSWITCH
BALANCED
BALANCED
LINE OUT
LEVEL
GR OUND
LIFT
LE FT
RI GH T
GR OU ND
RETURN /
PWR AMP IN
SEND /
PREAMP OUT
STEREO
FX LOOP
120V 60Hz
Vibratone 1 slow
Vibratone 2 fast
Chorus 1 slow
Chorus 2 fast
Reverb + Chorus 1
large room / slow chorus
Reverb + Chorus2 medium hall / fast chorus
Chorus + Delay fast chorus / long delay (480 ms)
Delay 1 slapback delay (140 ms)
Delay 2 medium delay (315 ms)
Delay 3 long delay (480 ms)
Reverb + Delay1 medium hall / medium delay (235 ms)
Reverb + Delay2 medium hall / long delay (415 ms)
Plate Reverb studio plate
Room Reverb medium room
Hall Reverb 1 medium hall
Hall Reverb 2 large hall
Vibratone fast
Chorus slow
Reverb + Chorus1
large room / slow chorus
Reverb + Chorus2 medium hall / fast chorus
Chorus + Delay fast chorus / long delay (480 ms)
Delay 1 slapback delay (140 ms)
Delay 2 medium delay (315 ms)
Delay 3 long delay (480 ms)
Reverb + Delay1 medium hall / medium delay (235 ms)
Reverb + Delay2 medium hall / long delay (415 ms)
Plate Reverb studio plate
Room Reverb 1 dark medium room
Room Reverb 2 bright medium room
Hall Reverb 1 small hall
Hall Reverb 2 medium hall
Hall Reverb 3 large hall
Ring = Right
Tip = Left
Specifications
ACOUSTASONIC 100 ACOUSTASONIC 150
TYPE: PR 841 PR 899
PART NUMBERS: 2313500000 (120V, 60Hz) 2313600000 (120V, 60Hz)
2313500900 (120V, 60Hz) DS 2313501900 (110V, 60Hz) TW DS 2313600900 (120V, 60Hz) DS 2313601900 (110V, 60Hz) TW DS
2313503900 (240V, 50Hz) AUS DS 2313504900 (230V, 50Hz) UK DS 2313603900 (240V, 50Hz) AUS DS 2313604900 (230V, 50Hz) UK DS
2313505900 (220V, 50Hz) ARG DS 2313506900 (230V, 50Hz) EUR DS 2313605900 (220V, 50Hz) ARG DS 2313606900 (230V, 50Hz) EUR DS
2313507900 (100V, 50/60Hz) JPN DS 2313509900 (220V, 60Hz) ROK DS 2313607900 (100V, 50/60Hz) JPN DS 2313609900 (220V, 60Hz) ROK DS
POWER REQUIREMENTS: 310W 350W
INPUT IMPEDANCE INSTRUMENT: 10M MIC/INST: 3.6k INSTRUMENT: 10M MIC/INST: 3.6k
POWER OUTPUT: 100W RMS into 8 @ <0.2%THD 2 x 75W RMS into 2x 8 @ <0.2%THD
SPEAKER: One 8, 8" Fender® Special Design, One Piezo horn Two 8, 8" Fender® Special Design, One Piezo horn
FOOTSWITCH (OPTIONAL): P/N: 0064673000 (Efects on/off) P/N: 0064673000 (Efects on/off)
DIMENSIONS HEIGHT: 15 ⁄ in (39.1 cm) WIDTH: 19 ⁄ in (49.2 cm) HEIGHT: 16 in ( 40.6 cm) WIDTH: 22 ⁄ in ( 56.8 cm)
DEPTH: 9 ⁄ in (24.9 cm) DEPTH: 10 ⁄ in (25.7 cm)
WEIGHT: 18 lb (8.16 kg) 22.5 lb (10.21 kg)
Product specifications are subject to change without notice.
Instrument Channel
Select from 16 variations of 9 types of
effects using the FX SELECT knob. Effects are
described going clockwise around the knob:
Mic/Inst Channel
Select from 16 variations of 9 types of
effects using the FX SELECT knob. Effects are
described going clockwise around the knob:
FX SELECT
FX SELECT
HA LL
ROOM
VIBRATON E
CH OR US
PL ATE
DE LAY
RE VE RB
+C H
CH OR US
+DLY
RE VE RB
+DLY
HA LL
ROOM
VIBRATON E
CH OR US
PL ATE
DE LAY
RE VE RB
+C H
CH OR US
+DLY
RE VE RB
+DLY
FX SELECT
FX SELECT
HA LL
ROOM
VIBRATON E
CH OR US
PL ATE
DE LAY
RE VE RB
+C H
CH OR US
+DLY
RE VE RB
+DLY
HA LL
ROOM
VIBRATON E
CH OR US
PL ATE
DE LAY
RE VE RB
+C H
CH OR US
+DLY
RE VE RB
+DLY
