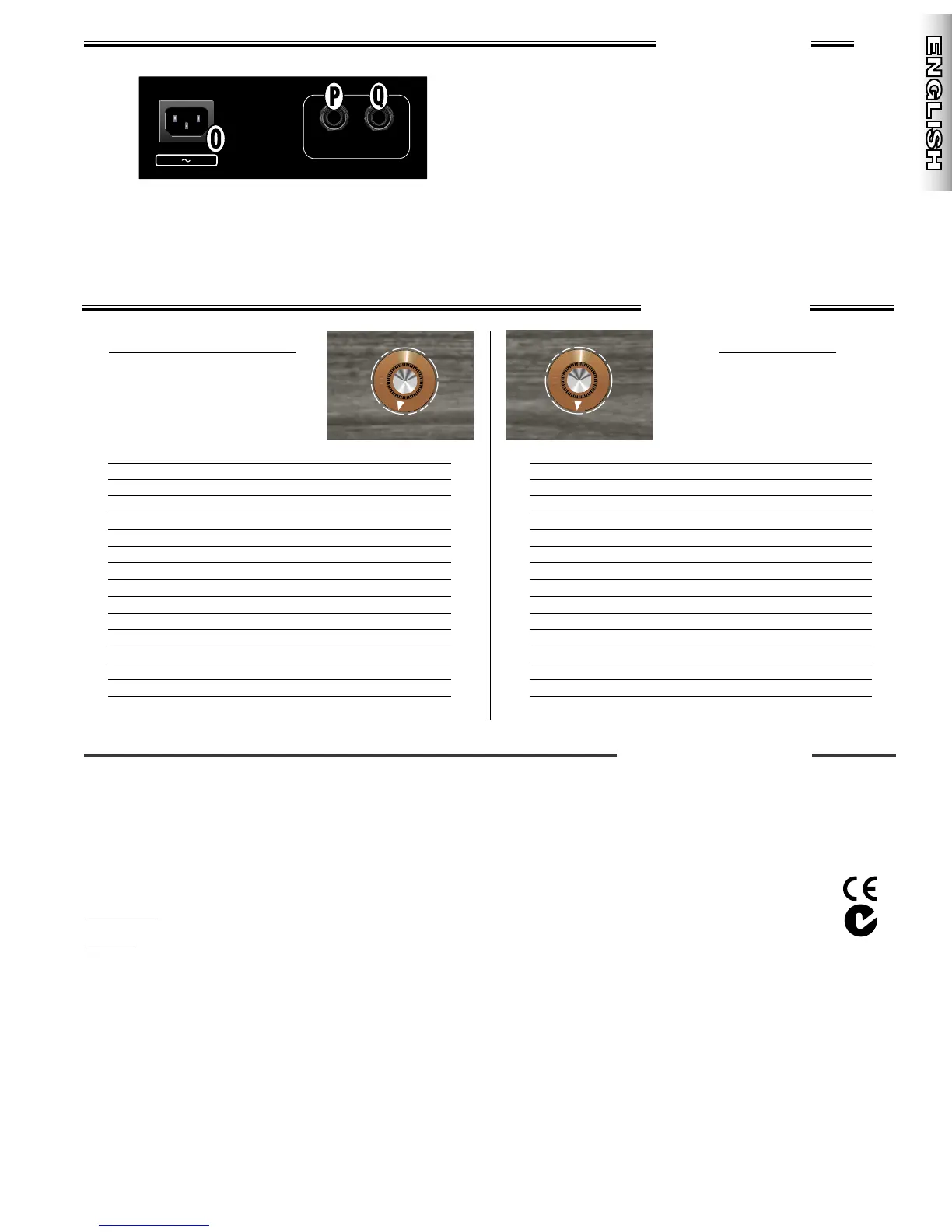

O. IEC SOCKET - Connect the supplied power cord to
a grounded AC receptacle in compliance with the
voltage and frequency ratings specified on the rear
panel of your amplifier.
P. FOOTSWITCH - Connect the footswitch (optional) to
enable remote on/off switching of the DSP effects for
each channel.
Q. LINE OUT - Unbalanced, line level jack for output to
sound reinforcement and recording equipment. This
output signal includes all onboard tone shaping and
DSP effects.
7
RR
RR
ee
ee
aa
aa
rr
rr
PP
PP
aa
aa
nn
nn
ee
ee
ll
ll
DD
DD
SS
SS
PP
PP
EE
EE
ff
ff
ff
ff
ee
ee
cc
cc
tt
tt
ss
ss
wwwwww
..
ffeennddeerr..ccoomm
✧
wwwwww
..mmrrggeeaarrhheeaadd..nneett
SS
SS
pp
pp
ee
ee
cc
cc
ii
ii
ff
ff
ii
ii
cc
cc
aa
aa
tt
tt
ii
ii
oo
oo
nn
nn
ss
ss
TYPE: PR 423
PART NUMBER: 2213300010 (120V, 60Hz) US 2213301010 (110V, 60Hz) TW 2213303010 (240V, 50Hz) AUS
2213304010 (230V, 50Hz) UK 2213305010 (220V, 50Hz) ARG 2213306010 (230V, 50Hz) EUR
2213307010 (100V, 50/60Hz) JPN 2213309010 (220V, 60Hz) ROK
POWER REQUIREMENTS: 90W
POWER
AMP POWER OUTPUT: 30W R.M.S. into 8Ω @ <.17% T.H.D.
PREAMP
INPUT IMPEDANCE: 10MΩ (Inst), 3.6kΩ (Mic)
TONE CONTROLS: Treble: +/-15dB @ 15kHz Mid: +/-12dB @ 1kHz Bass: +/-12dB @ 100Hz
STRING DYNAMICS: 0 to -15dB @ 6.3kHz
PHANTOM VOLTAGE: +15V DC (Mic)
SPEAKER COMPLEMENT: One 8 in Fender
®
Special Design (051016) One Piezo Horn (049260)
FOOTSWITCH (OPTIONAL): 2-button, effects on/off (062206)
DIMENSIONS: Height: 15 3/8 in (39 cm) Width: 19 3/8 in (49 cm) Depth: 14 5/8 in (37 cm)
WEIGHT: 34 lb (15.4 kg)
Product specifications are subject to change without notice.
Instrument Channel
Select from 16 variations of 9 types of
effects using the FX SELECT knob.
Variations are defined going
clockwise around the knob:
Vibratone 1 slow
Vibratone 2 fast
Chorus 1 slow
Chorus 2 fast
Reverb + Chorus 1 large room / slow chorus
Reverb + Chorus 2 medium hall / fast chorus
Chorus + Delay fast chorus / long delay (480 ms)
Delay 1 slapback delay (140 ms)
Delay 2 medium delay (315 ms)
Delay 3 long delay (480 ms)
Reverb + Delay 1 medium hall / medium delay (235 ms)
Reverb + Delay 2 medium hall / long delay (415 ms)
Hall Reverb 1 medium hall
Hall Reverb 2 large hall
Room Reverb medium room
Plate Reverb studio plate
Mic Channel
Select from 16 variations of 9 types of
effects using the FX SELECT knob.
Variations are defined going
clockwise around the knob:
Hall Reverb 1 small hall
Hall Reverb 2 medium hall
Hall Reverb 3 large hall
Room Reverb 1 dark medium room
Room Reverb 2 bright medium room
Plate Reverb studio plate
Vibratone fast
Chorus slow
Reverb + Chorus 1 large room / slow chorus
Reverb + Chorus 2 medium hall / fast chorus
Chorus + Delay fast chorus / long delay (480 ms)
Delay 1 slapback delay (140 ms)
Delay 2 medium delay (315 ms)
Delay 3 long delay (480 ms)
Reverb + Delay 1 medium hall / medium delay (235 ms)
Reverb + Delay 2 medium hall / long delay (415 ms)
