Fender Blues Deluxe Reissue User Manual

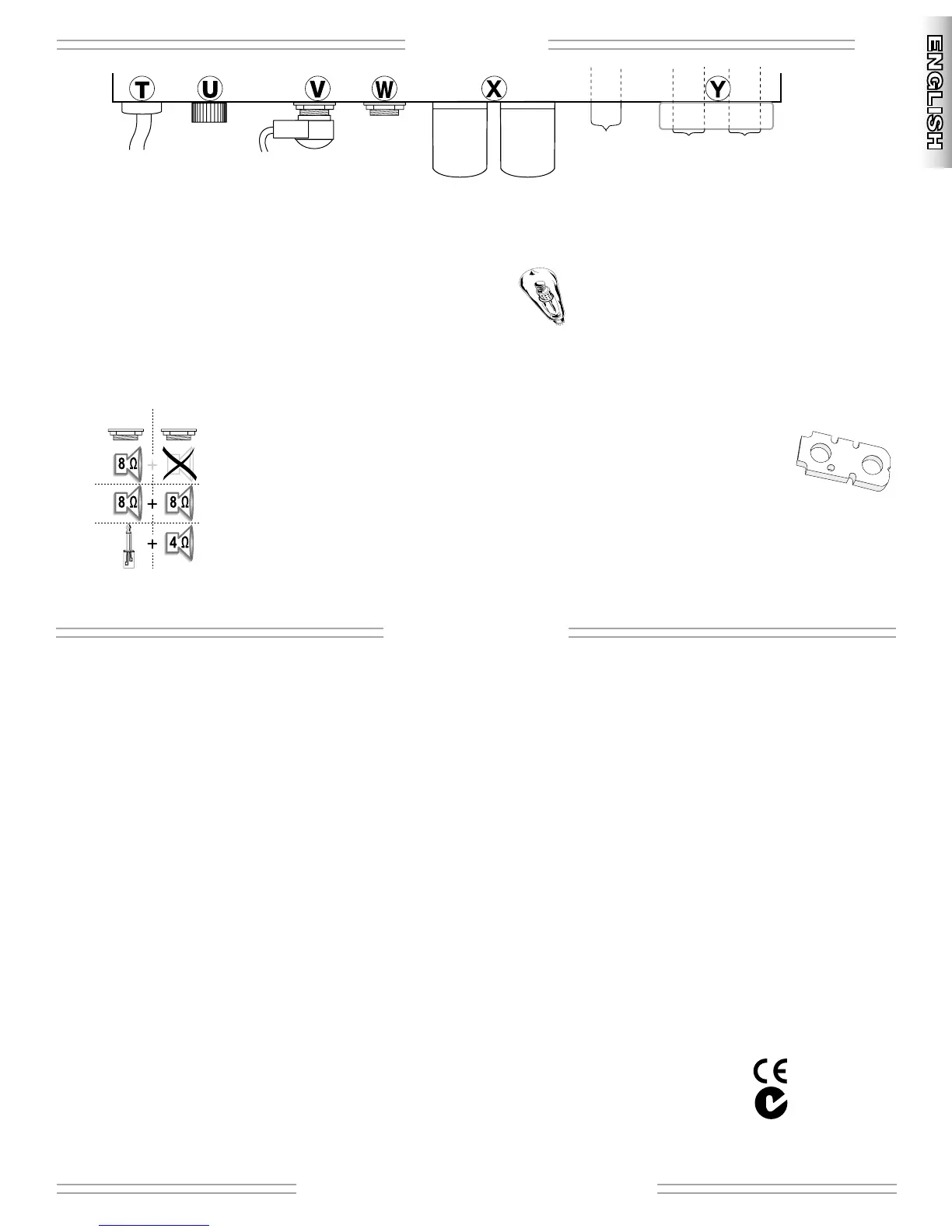

T. POWER CORD - Connect the power cord in
accordance with the voltage and frequency ratings
listed on the rear panel of your Blues Deluxe amplifier.
U. FUSE - Protects the amplifier from electrical faults.
Replace a blown fuse only with the type and rating
specified on the fuse holder.
V. MAIN SPEAKER - One of 3 speaker load
configurations must always be connected to your
Blues Deluxe when it is on. (Power on without speakers
may damage your amplifier.)
Internal 8Ω
Internal 8Ω + External 8Ω
*“Open” plug (without speakers)
+ External 4Ω
W. EXTERNAL SPEAKER - This jack can only be used
when a plug is inserted into the main speaker jack.
X. FENDER
®
/GROOVE TUBES™ GT6L6B - The
output tubes in your Blues Deluxe amplifier
are performance matched and labeled as a
color-coded pair. When replacing these
tubes, we recommend selecting new tubes
that have the same red, white or blue color labels as
the originals. Otherwise, tube bias may need
adjustment. See Specifications below for color coded
tube part numbers.
Y. PREAMP TUBE STABILIZER -
A vibration–absorbing stabilizer is
installed around the preamp tubes to
minimize tube microphonics that
normally develop over time. The stabilizer can be used
with all preamp tubes compatible with your Blues
Deluxe amplifier.
1.
2.
3.
*
V. W.
TYPE: PR 658
PART NUMBERS: 2232200000 (120V, 60Hz) USA 2232201000 (110V, 60Hz) TW
2232203000 (240V, 50Hz) AUS 2232204000 (230V, 50Hz) UK
2232205000 (220V, 50Hz) ARG 2232206000 (230V, 50Hz) EUR
2232207000 (100V, 50Hz) JPN 2232209000 (220V, 60Hz) ROK
POWER REQUIREMENT: 180W
POWER OUTPUT: 40W into 8Ω or 4Ω at 5% THD
INPUT IMPEDANCES: 1 MΩ (Input 1) / 136 kΩ (Input 2)
PRE-AMP OUT IMPEDANCE: 1.5 kΩ Max
POWER-AMP IN SENSITIVITY: 200 mV for clipping
POWER-AMP IN IMPEDANCE: 54 kΩ
TUBES: Three 12AX7 (0023572000)
Two Fender
®
Groove Tube™ GT6L6B (Red=0994401102; White=0994401202 Blue=0994401302)
FUSE: 3A 250V fuse (100V and 120V versions) 1.6A 250V fuse (230V and 240V versions)
SPEAKER: One 12", 8 ohm Fender
®
Re-issue Gold Label speaker (0037617000)
FOOTSWITCH: 2 Button: Channel, Reverb (0028122000)
DIMENSIONS: HEIGHT: 18.75 in (47.6 cm)
WIDTH: 23.5 in (59.7 cm)
DEPTH: 10.5 in (26.7 cm)
WEIGHT: 49.5 lb (22.5 kg)
Product specifications are subject to change without notice.
