Roc Pro 700 REAR PANEL FUNCTIONS
200W
TYPE: PR 242
CAUTION: CHASSIS SURFACE HOT
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
AVIS: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
ATTENTION: SUPERFICIE DE CHASSIS CHAUDE
SERIAL NUMBER
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.,
CORONA, CA 91720
MADE IN U.S.A.
MODEL
LINE
OUT
–16dBv
LOW
–7dBv
MED
+4dBv
HIGH
GUITAR LINE
EFFECTS LOOP
RETURN
LEVEL
SEND
700
Roc•Pro
B
C
E
D
A

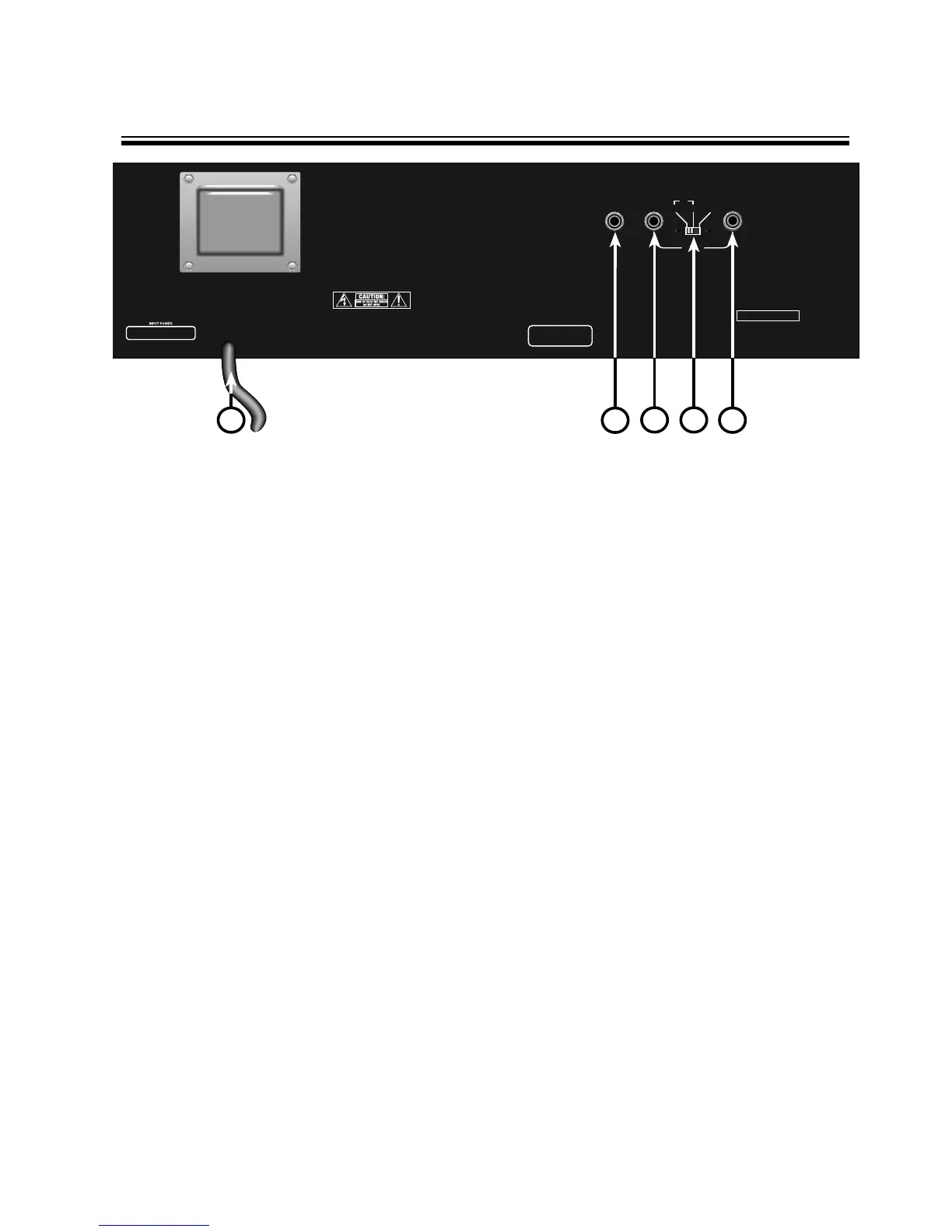

A. LINE CORD - the Roc Pro 700 is equipped with a
grounding type supply cord to reduce the possibility
of shock hazard. Be sure to connect it to a grounded
AC receptacle. DO NOT ALTER THE AC PLUG.
B. LINE OUT - This jack provides an output signal
taken directly off the amplifier output and speaker
and is used for direct connection to recording and
sound reinforcement equipment. Using a stereo
cord in this jack will provide a quasi-balanced signal.
A mono cord will provide an unbalanced signal.
C. SEND - This unbalanced jack provides an output
signal from the preamp and is pre-reverb. It may be
used to drive effects units in an effects loop, to drive
additional amplifiers in a multi-amp set up or as a
preamp send to a mixing console.
D. LEVEL SWITCH - This switch directly effects the
Send (item C) jack by boosting or attenuating the
signal sent to the effects. External rack effects usu-
ally require -7dB or +4dB settings. Effects pedals
usually require a -16dB setting.
E. RETURN - This jack provides a return from your
effects units and is pre-reverb. This jack can also be
used as a power amp input.
