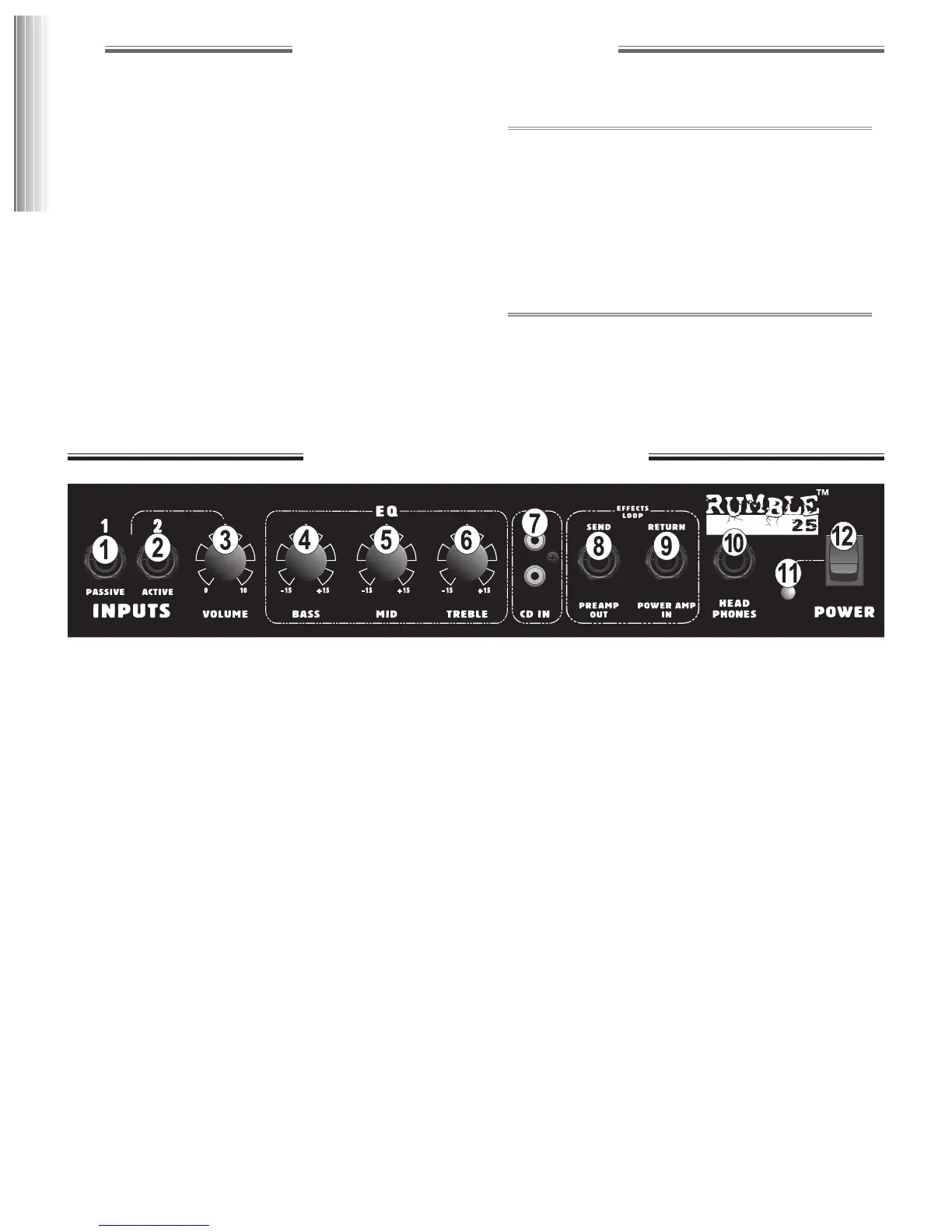

Front Panel Functions
Front Panel Functions
Your new Rumble™ 25 offers affordable
Fender
®
tone and quality:
• All front panel controls and jacks.
• Compact size ideal for rehearsal and
backstage warm-up.
• Headphones jack for private listening or
output to sound equipment.
• CD IN RCA input jacks for use with a
portable CD or Tape player, drum machine,
etc.
• Deltacomp™ adaptive limiter virtually
eliminates power-amp distortion for clear
tone and punchy response.
Fender
®
amplifiers are the result of over
50 years experience contributed by
dedicated engineers and musicians in
studios and on stages around the world.
Fender
®
, The Sound That Creates Legends.
1. INPUT 1- Input jack for most bass guitars.
2. INPUT 2- Input jack for bass guitars with
active pre-amps (attenuated –6dB).
3. VOLUME – Adjusts the loudness of the
amplifier.
4. BASS – Adjusts the low-frequency level.
5 MID – Adjusts the middle-frequency level.
6. TREBLE – Adjusts the high-frequency
level.
7. CD IN – RCA input jacks for use with a
portable CD or tape player, drum
machine, etc. These input jacks are not
affected by the amplifier’s volume or tone
controls. Adjust the signal at the source.
8. PREAMP OUT – Connect this jack to the
input of an external effects device.
9. POWER AMP IN – Connect this jack to
the output of an external effects device.
10. HEADPHONES – Output jack for standard
stereo or mono headphones. Using this
jack automatically disconnects the
speaker. This jack can also be used as an
unbalanced line output by using either a
stereo or mono 1/4" phone plug
connection.
11. POWER INDICATOR – Illuminates when
the unit is ON.
12. POWER SWITCH – This switch turns the
unit ON and OFF.
