SAFETY

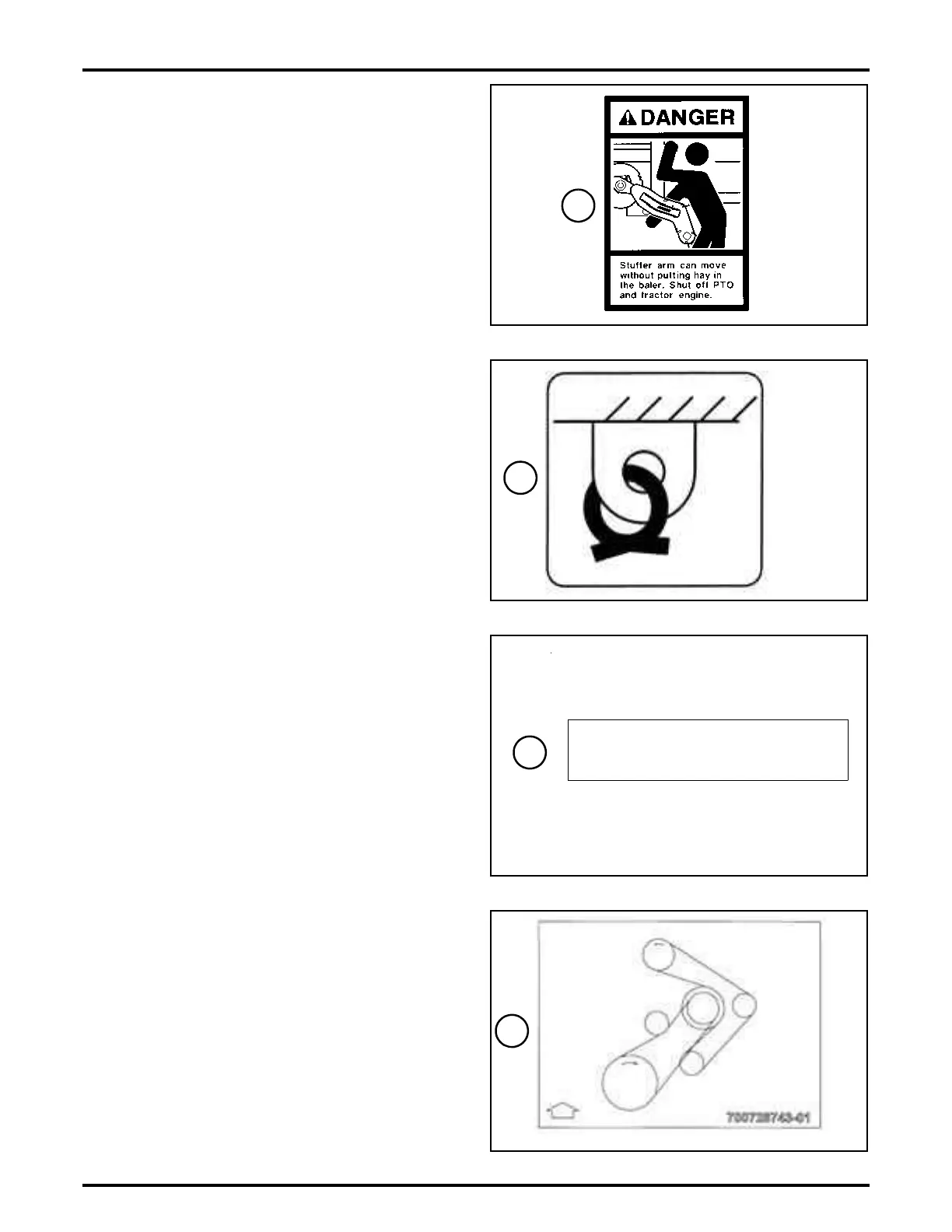

FIG. 38: Danger - safety sign (13)
Stuffer arm can move without putting hay in the baler.
Shut off PTO and tractor engine.
FIG. 39: Tie down location (14)
Single axle and tandem axle balers will have different tie
down locations.
FIG. 40: Yellow reflector strip (15)
FIG. 41: Pickup chain drive routing (16)
This decal shows the chain routing for the chains on the
left-hand side of the pickup.
FIG. 38
FIG. 39
FIG. 40
FIG. 41
