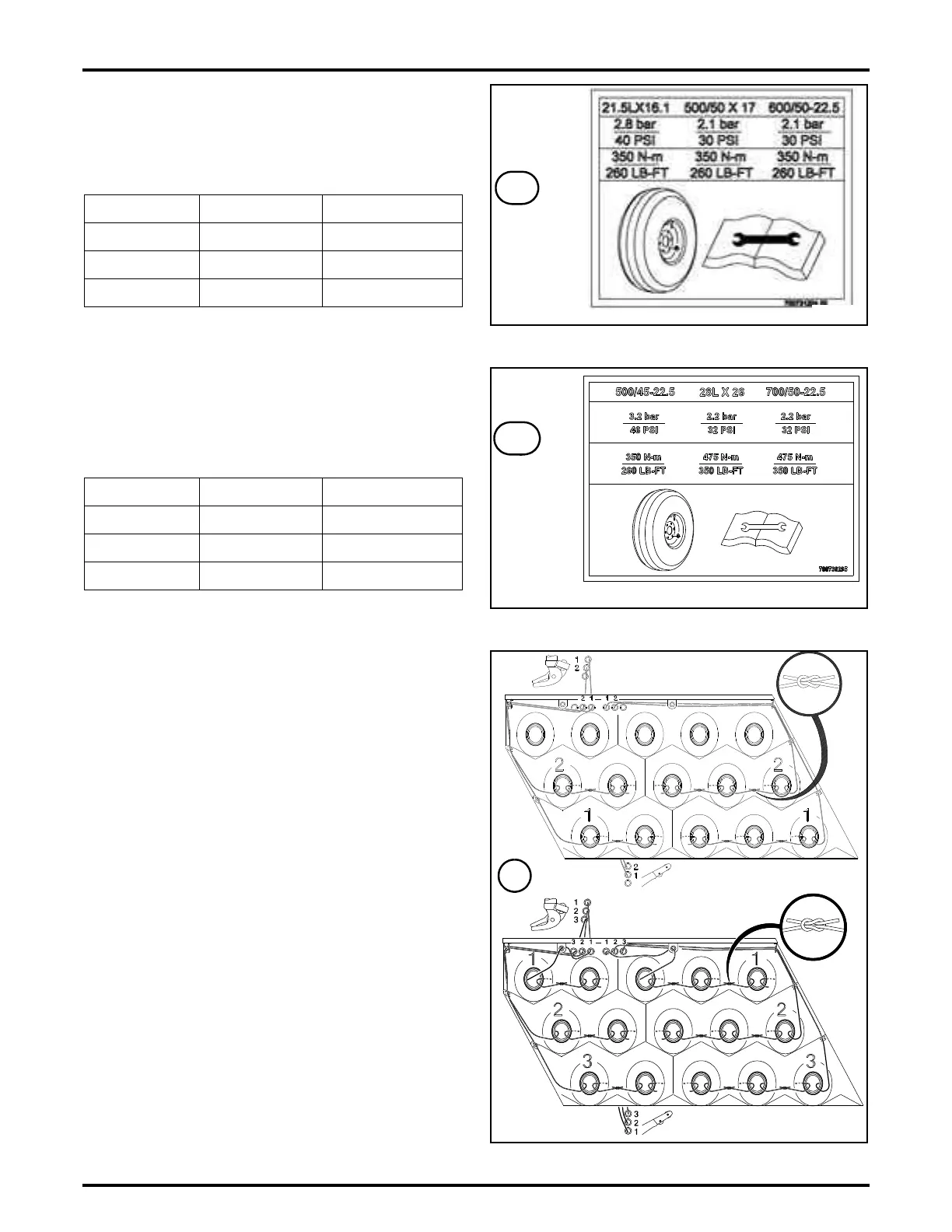

FIG. 42: Tire pressure and lug nut torque values (17A)
This decal shows the correct tire pressures and lug nut
torques for 870 and 990 balers.
NOTE: All of the torque values are for oiled lugs.
FIG. 43: Tire pressure and lug nut torque values (17B)
This decal shows the correct tire pressures and lug nut
torques for 1270, 1290 and 12130 balers.
NOTE: All of the torque values are for oiled lugs.
FIG. 44: Twine box routing for four and six twine balers
(18)
See the Preparation section for a larger view with
instructions on how to route the twine. The top view is for
four twine balers. The bottom view is for six twine balers.
FIG. 42
Size Pressure Torque Nm
21.5L X 16.1 2.8 bar (40 psi) 350 Nm (260 lb-ft)
500/50 X 17 2.1 bar (30 psi) 350 Nm (260 lb-ft)
600/50-22.5 2.1 bar (30 psi) 350 Nm (260 lb-ft)
FIG. 43
Size Pressure Torque Nm
500/45-22.5 3.2 bar (46 psi) 350 Nm (260 lb-ft)
28L X 26 2.2 bar (32 psi) 475 Nm (350 lb-ft)
700/50-22.5 2.2 bar (32 psi) 475 Nm (350 lb-ft)
FIG. 44
