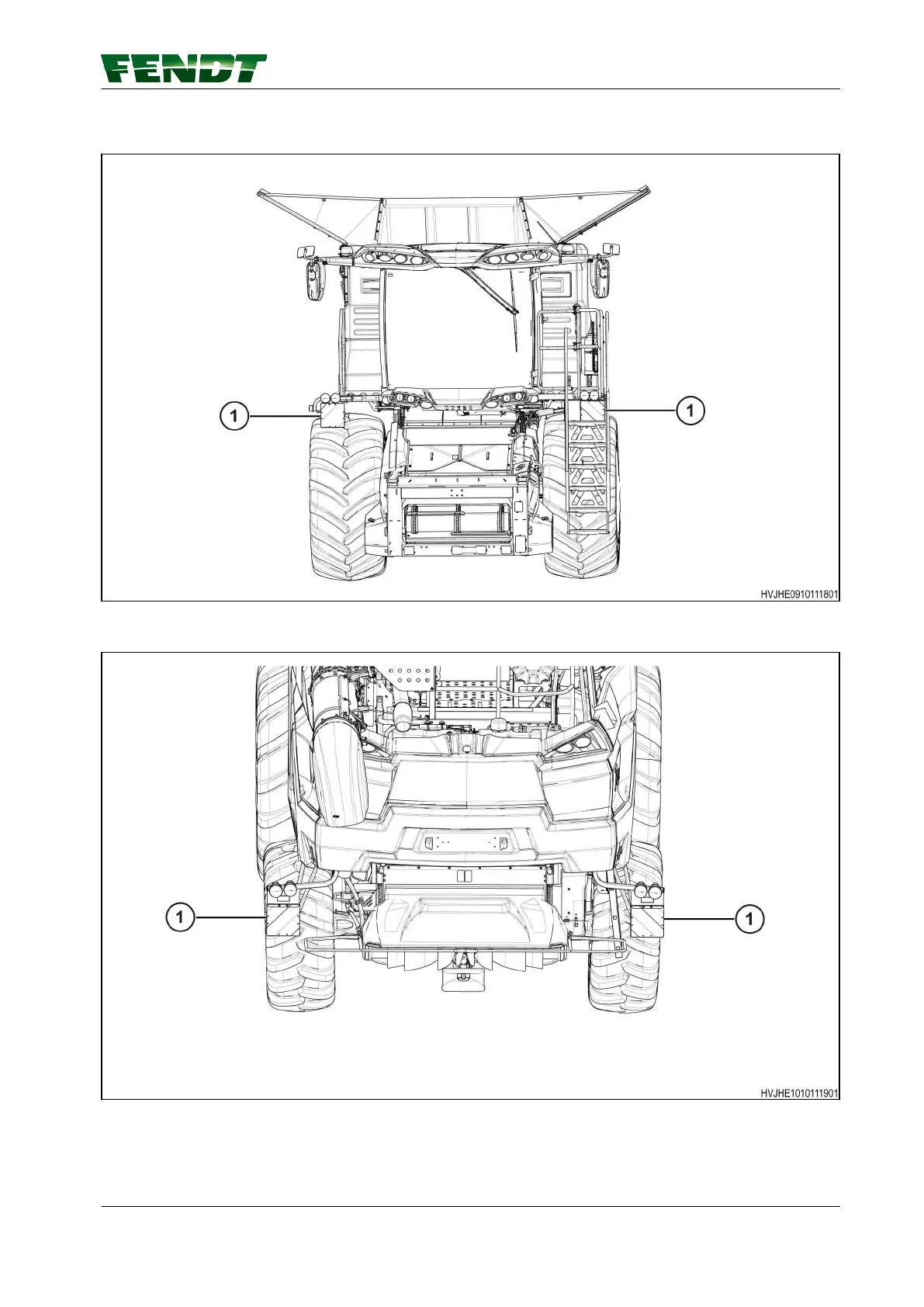

1.3.30.45 Reflector location
GUID-C2F033D2-4D06-4DB5-859E-255700E83578-high.jpg [High]
Fig. 62 EU - Front
(1)
White and red reflector
GUID-B9F4DC90-1D06-4FCE-B532-4C4E534CFDE9-high.jpg [High]
Fig. 63 EU - Rear
(1)
White and red reflector
GUID-5C1AA222-1D5B-44E6-9896-5C99B3E2521C [V1]
1. General
IDEAL Series Combine 1-47
79037318C
