FENDT IDEAL 8 Workshop Service Manual

1.3.34 Engage the feeder house cylinder stop
Procedure
1. Park the machine on a solid, level surface.
2. Lift the feeder house fully.
3. Apply the parking brake, stop the engine, and take the key with you.
4. Release the clip (1) that holds the cylinder
stop (2) up.
5. Lower the cylinder stop onto the cylinder (3).

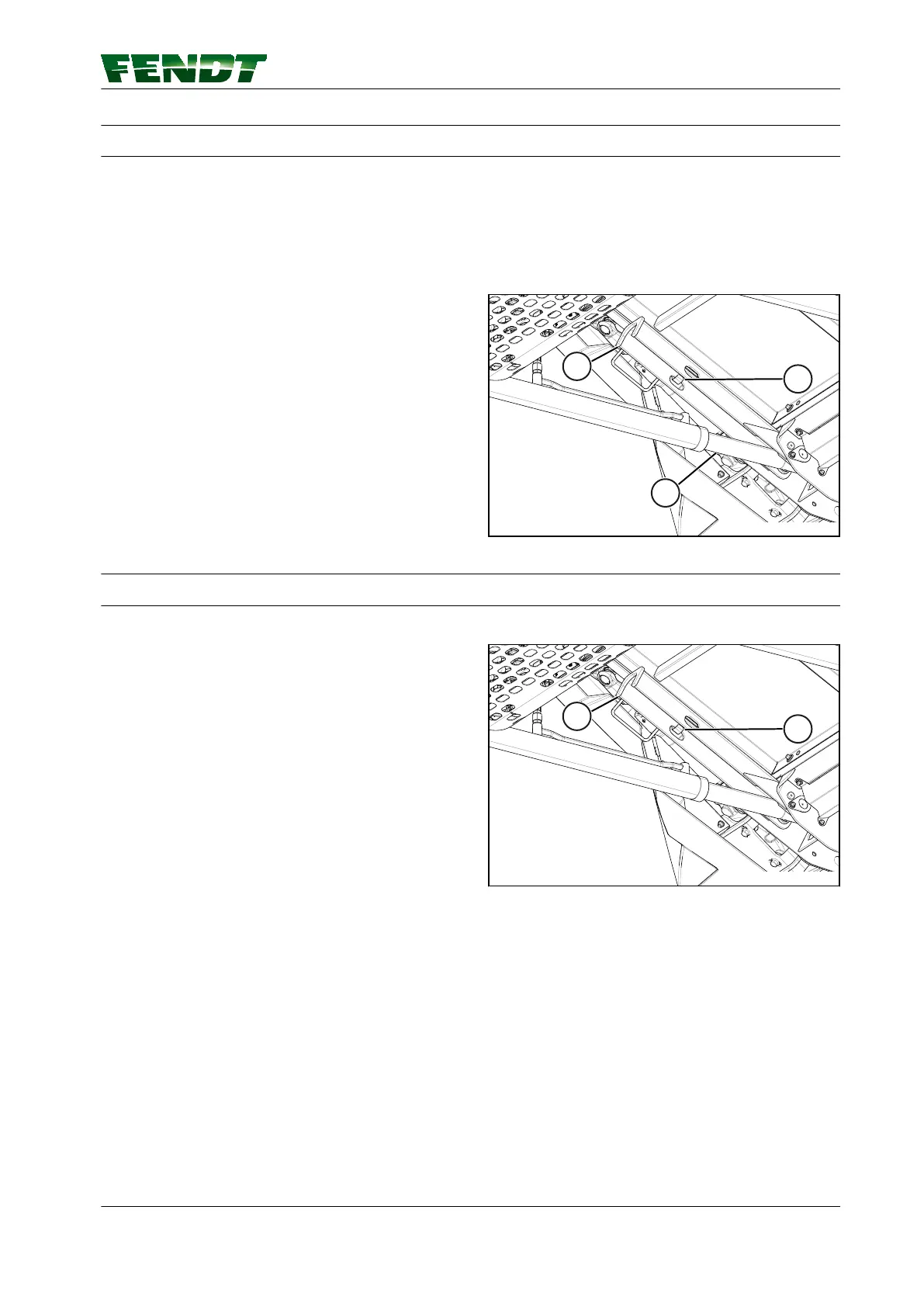

Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/cylinder stop.svg
1
2
3
HVJHE0110027301
GUID-537BF7F4-06EB-4E8C-99E6-04B0653F6F80-low.svg [Low]
Fig. 74
1.3.35 Disengage the feeder house cylinder stop
Procedure
Lift the cylinder stop (2) until the clip (1)
latches.
Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/cylinder stop.svg
1
2
HVJHE0110027401
GUID-33782DBE-F625-4789-AE04-F1BC171EC066-low.svg [Low]
Fig. 75
GUID-204D4B34-BE7D-4B52-83F4-B6E4F8673CBA [V2]
GUID-219927E8-46C7-4EFC-A332-93A5EB566666 [V2]
1. General
IDEAL Series Combine 1-53
79037318C
