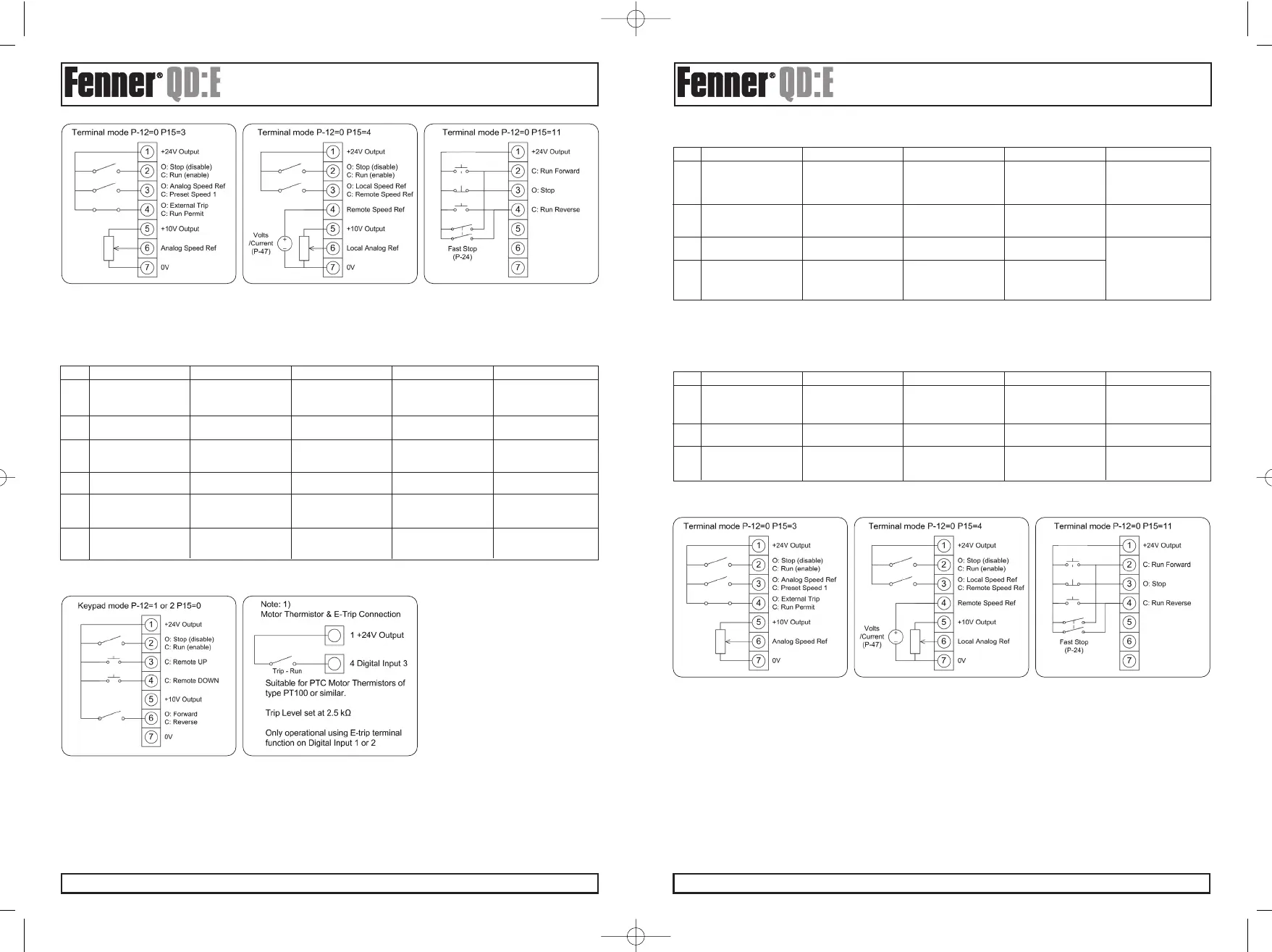

Installation & Operating Instructions
Analog speed input with 1 preset speed
and motor thermistor trip
Local or remote analog speeds
(2 analog inputs)
Push button fwd/rev/stop with fast stop
using 2nd deceleration ramp
8.2. KEYPAD MODE (P-12 = 1 OR 2)
EXAMPLE WIRING
Remote push button speed control with
fwd/rev
Analog speed input with 2 preset speeds
By default if the enable signal is present the drive will not Enable until the START button is pressed. To automatically enable
the drive when the enable signal is present set P-31 = 2 or 3. This then disables the use of the START & STOP buttons
NOTE
8.3. MODBUS CONTROL MODE (P12 = 3 OR 4)
Further information the MODBUS RTU Register Map information and communication setup; please refer to the Advanced
User Guide.
8.4. USER PI CONTROL MODE (P-12 = 5 OR 6)
EXAMPLE WIRING
Remote closed loop PI feedback control
with Local Preset speed 1
Remote closed loop PI feedback control
with Local Analog speed input
Remote closed loop PI feedback control
with Local Preset speed 1 and motor
thermistor trip
By default the PI reference is set for a digital reference level set in P-45.
When using an Analog reference set P-44 = 1 (analog) and connect reference signal to analog input 1 (T6).
The default settings for proportional gain (P-41), integral gain (P-42) and feedback mode (P-43) are suitable for most HVAC
and pumping applications.
The analog reference used for PI controller can also be used as the local speed reference when P15=1.
NOTE
Further information on configuring the PI controller for typical feedback applications; please refer to the Advanced User Guide.
P-15 Digital input 1 (T2) Digital input 2 (T3) Digital input 3 (T4) Analog input (T6) Comments
0, 1,
Open: Stop (disable) Closed : remote UP Closed : remote DOWN Open : Forward
5,
Closed: Run (enable) push-button push-button +24V : Reverse
8..12
2
Open: Stop (disable) Closed : remote UP Closed : remote DOWN Open : Keypad speed ref
Closed: Run (enable) push-button push-button +24V : Preset speed 1
Open: Stop (disable) Closed : remote UP External trip input : Closed : remote DOWN
Connect external
3
1)
Closed: Run (enable) push-button Open: Trip, Closed: Run push-button
thermistor type PT100 or
similar to digital input 3
4
Open: Stop (disable) Closed : remote UP Open : Keypad speed ref
Analog input 1
Closed: Run (enable) push-button Closed : Analog input 1
Open: Stop (disable) Open : Forward run External trip input : Open : Keypad speed ref
Connect external
6
1)
Closed: Run (enable) Closed : Reverse run Open: Trip, Closed: Run +24V : Preset speed 1
thermistor type PT100 or
similar to digital input 3
Open: Forward Stop Open: Reverse Stop External trip input : Open : Keypad speed ref
Closing digital inputs 1
7
Closed: Forward Run Closed: Reverse Run Open: Trip, Closed: Run +24V : Preset speed 1
and 2 together carries out
a fast stop (P-24)
P-15 Digital input 1 (T2) Digital input 2 (T3) Digital input 3 (T4) Analog input (T6) Comments
0..2,
Run and stop commands
4..5,
Open: Stop (disable)
No effect No effect No effect
given via the RS485 link
8..12
Closed: Run (enable) and Digital input 1 must be
closed for the drive to run.
Open: Stop (disable) Open : Master speed ref External trip input :
Connect external
3
1)
Closed: Run (enable) Closed : Preset speed 1 Open: Trip, Closed: Run
No effect thermistor type PT100 or
similar to digital input 3
6
1)
Open: Stop (disable) Open : Master speed ref External trip input : Analog input reference Master Speed Ref - start
Closed: Run (enable) Closed : Analog input Open: Trip, Closed: Run and stop controlled via
RS485. Keypad Speed Ref
Open: Stop (disable) Open : Master speed ref External trip input :
No effect
- drive auto runs if digital
7
1)
Closed: Run (enable) Closed : keypad speed ref Open: Trip, Closed: Run input 1 closed, depending
on P-31 setting
P-15 Digital input 1 (T2) Digital input 2 (T3) Digital input 3 (T4) Analog input (T6) Comments
0, 2,
Open: Stop (disable) Open : PI control
PI feedback analog input No effect
4..5,
Closed: Run (enable) Closed : Preset speed 1
8..12
1
Open: Stop (disable) Open : PI control
PI feedback analog input Analog input 1
Closed: Run (enable) Closed : Analog input 1
3, 6, Open: Stop (disable) Open : PI control External trip input :
Connect external
7
1)
Closed: Run (enable) Closed : Preset speed 1 Open: Trip, Closed: Run PI feedback analog input
thermistor type PT100 or
similar to digital input 3
