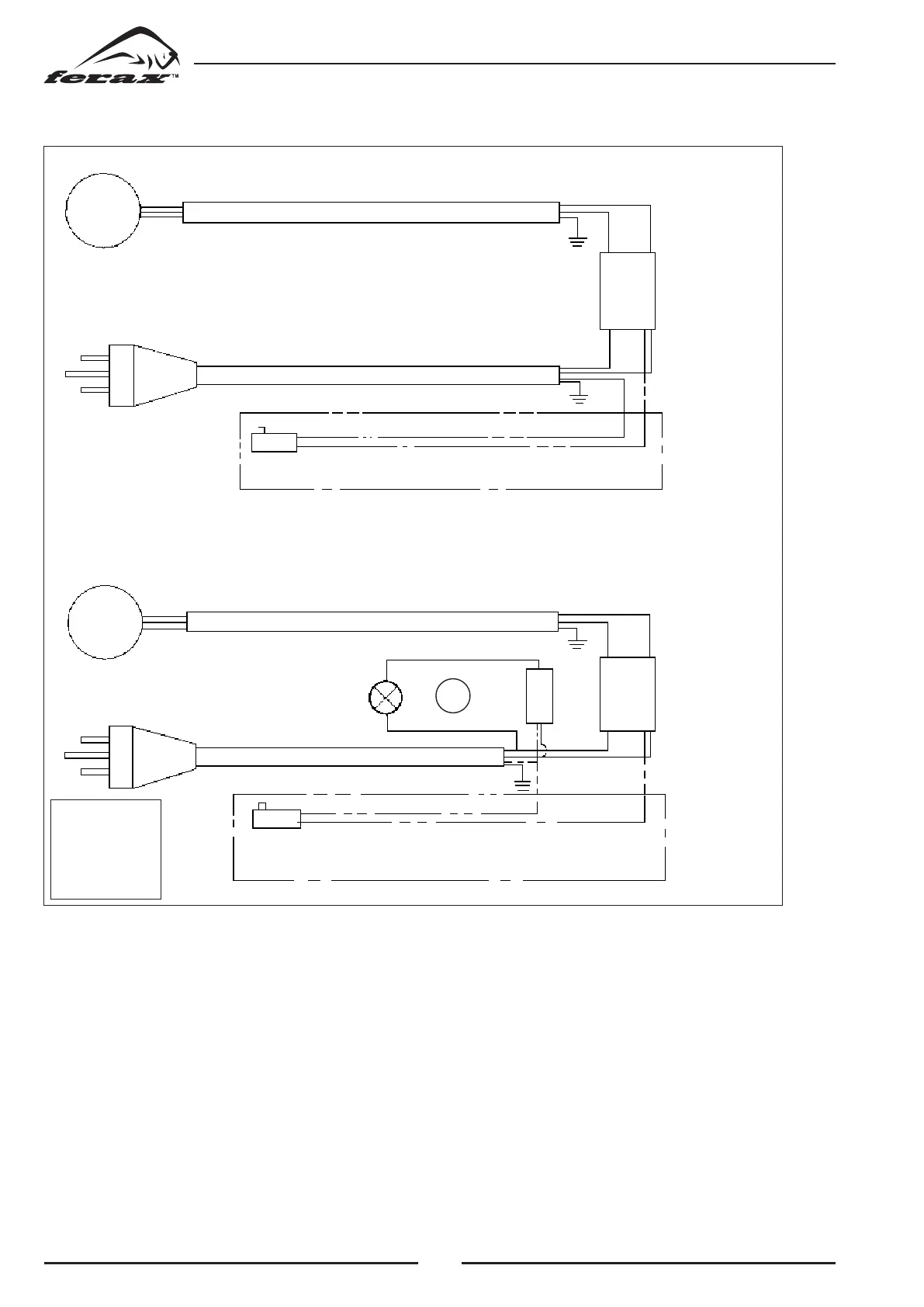

Ferax 16 DB - Wiring Diagram

48
WIRING
DIAGRAM
Motor
Motor
Motor
cable
Motor cable
Electric cable
Electric cable
Micro switch Optional
Optional
Micro switch Optional
Optional
Lamp
A
Switch
for
lamp
Green
Power
switch
Power switch
16
DB / DF
1-phase
20 DB / DF
1-phase
A
How
to use the main switch and the emergency stop switch correctly?
During norm
al operating, the machine will start to run when press the green button of the main switch. Press the
red button, the machine will stop. Also when you close the main switch cover, the machine will stop.
In case of emergency, please press the emergency stop switch below the main switch and the machine will stop.
Turn the emergency stop switch clockwise, then it reset. You can use the machine again.
