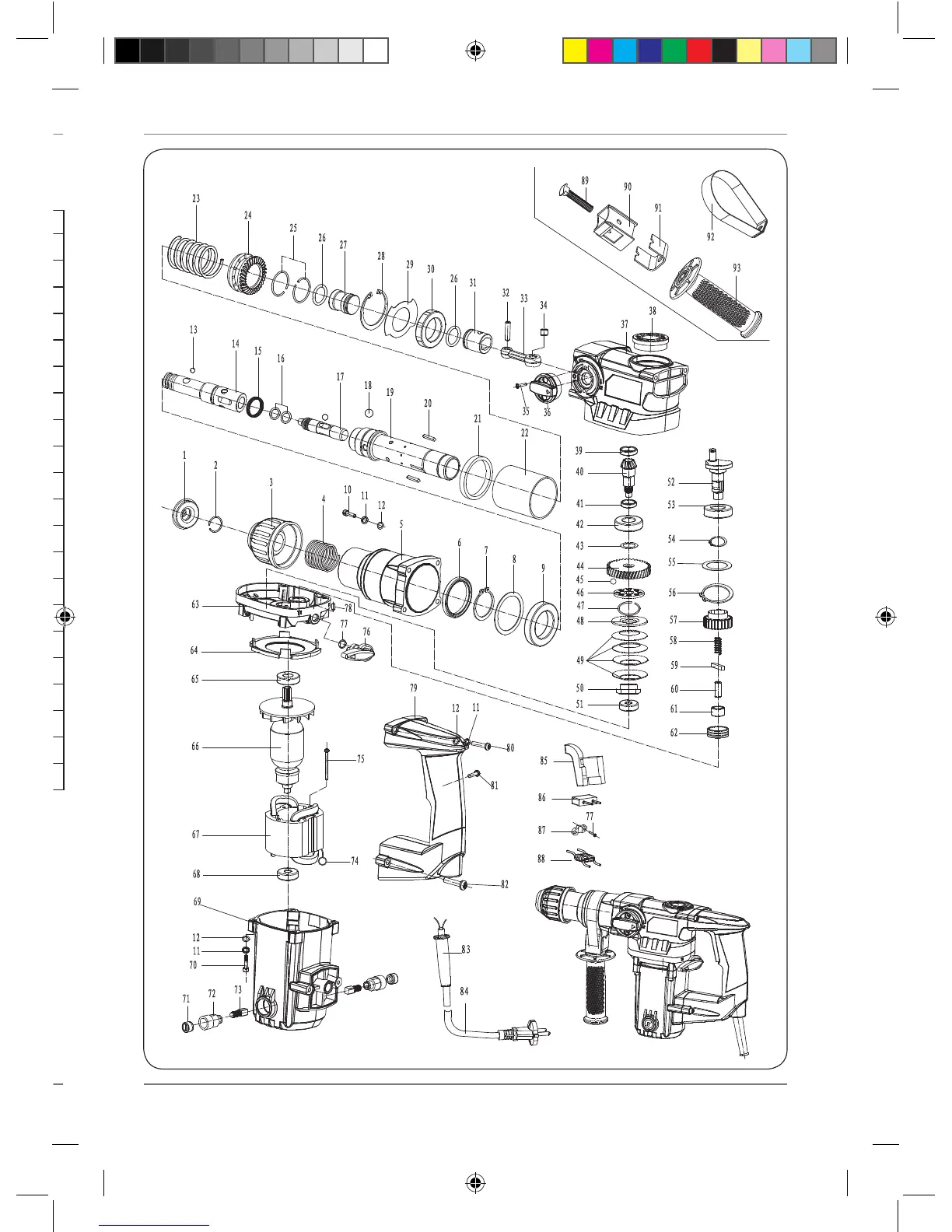

Spare parts list
HDM1028
No Description Position
106260 Rubber front cover 1
102261 Sleeve 3
102262 Hammer block complete 13-17
102263 Cylinder complete 18-20,26,27
106265 Gamp gear 24
806907 Bearing 6907 9
106266 Piston complete 31-34,26
106267 36
106268 Clutch complete 40-50
826003 Bearing 6003 RS 53
106269 Gear 57
801210 Needle bearing HK1210 61
826001 Bearing 6001RS 65
106270 Rotor 66
106272 Stator 67
800608 Bearing 608 zz 68
106273 Carbon brush cover 71
106274 Carbon brush 73
106275 Impact selector switch 76-78
106276 Switch 85
106277 Auxiliary handle 89-93
