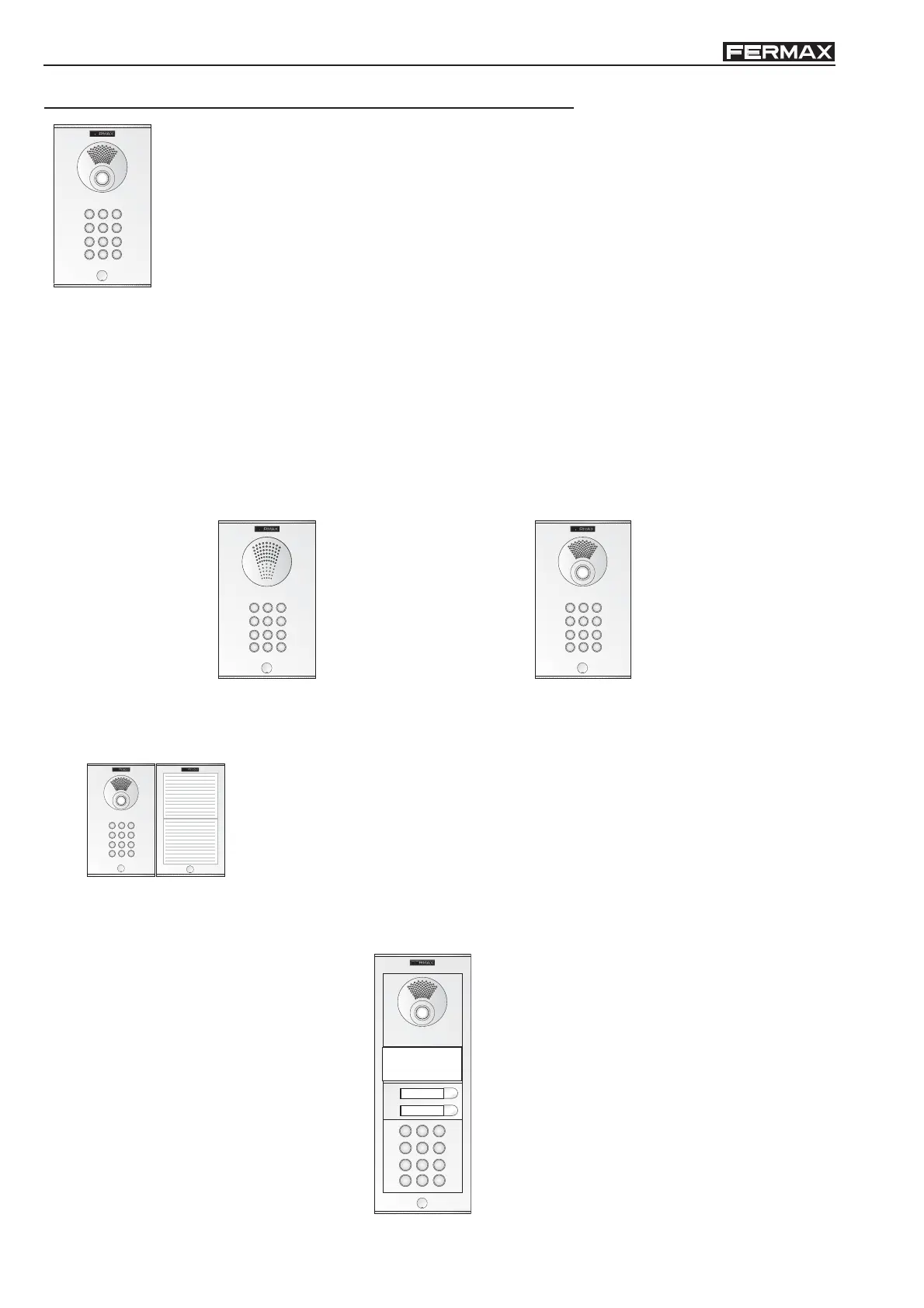

The DIRECT VDS panels are characterised by their:
- VDS Amplifier Module: a module which manages all VDS system functions: calls, two-way
communication, door opening, programming....
It is available in audio and video (b/w and colour) versions.
- Numerical Keypad: The keypad will generate the call code to the residence, call extension
modules are not necessary.
Calls to residences are made by pressing the corresponding code assigned to the residence.
- Access Control: Via the numerical keypad, the Direct systems incorporate access control
functions using keypad codes (previously programmed).
- Programming the lock-release time between 1 and 99 seconds.
The size of VDS DIRECT panels is always the same (Series 4 or 6 if a recess is included) independently of the number
of residences.
DIRECT AUDIO Panel
* DIRECT VDS panel typology
DIRECT VDS PANELS
DIRECT MODULAR
panel with buttons
987
654
321
A
B
0
987
654
321
A
B
0
It is also possible to construct DIRECT modular panels and combine them with button modules:
987
654
321
A
B
0
DIRECT VIDEOPanel
The directory panel is fitted with a lighting leds which must be connected to the VDS
amplifier (see internal panel wiring diagrams).
In addition to the DIRECT panels, a DIRECTORY PANEL can be installed (same series),
in the aim of saving a corresponding name with each of the residential codes.
987
654
321
A
B
0
EDIFICIO
PAZ
Calle la
Paz, 7
