VDSVDS

VDS

VDSVDS

VDS

Page 35

Code 97508I-1 V07_09

AMPLIFICADOR ADS/VDS

ADS/VDS AMPLIFIER

AMPLIFICATEUR ADS/VDS

ADS/VDS VERSTÄRKER

MIC

EXITEXIT

JP3

JP2

PACK EXTENSION

CN1

CN2

LEDS ON

SLAVE

MASTER

LEDS OFF

TARJETERO

CARD HOLDER

AUDIO

PROG

VERSION :

LANGUAGE

IDIOMA

PAN & TILT

JP3 JP2

CN3

SW1

CN1

CN2

MIC

JP4

CT OUT CT IN

+12

NcNo

18V

ALIMENTACION

POWER SUPPLY

18 Vdc

CN7 VIDEO TEST MONITOR

VARISTOR

12Vdc

Vac

240V

OVERLOAD

12 Vac

OUTPUT

INPUT

+ - + -

18 V ; 1,5 A

12 V ; 1,5 A

230V ; 0,6 A

50-60 Hz

The VDS amplifiers have a potential-free relay (C, No, Nc) which enables the use of both continuous and

alternating door lock-release mechanisms (maximum 4A).

The 12 Vdc door lock-release power supply can be carried through the VDS amplifier (up to a maximum

door lock-release consumption of 0.5A).

When using the alternating door lock-release, it will be necessary to use an additional alternative source

(of sufficient dimensions), which via the relay contact, will provide the necessary current to activate the

door lock-release.

Electric door lock-release

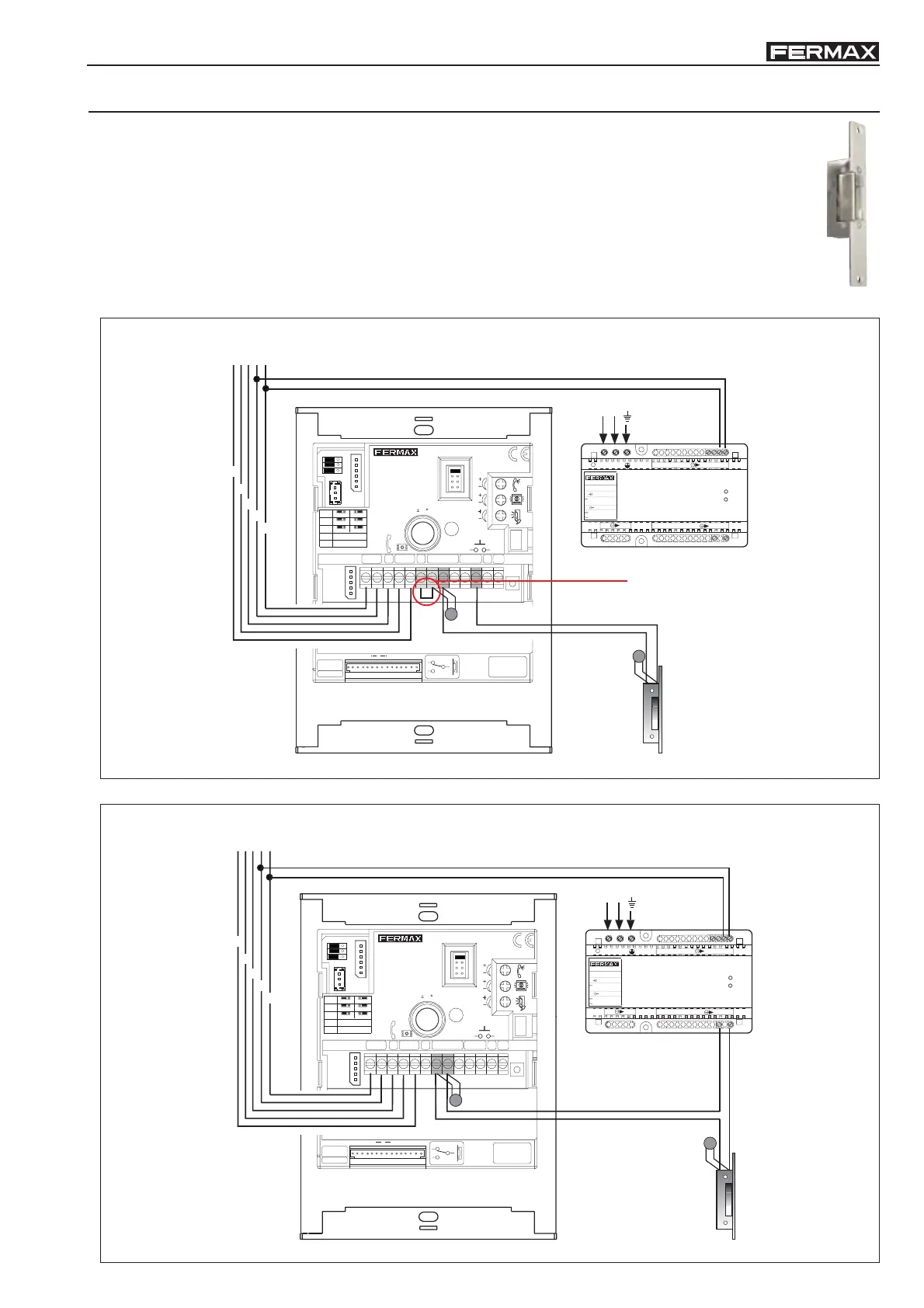

* Basic lock-release connection diagrams for the VDS system

Continuous door lock-release

18Vdc

Alternating lock-release

Junction between '+12' and

'C' terminals.
