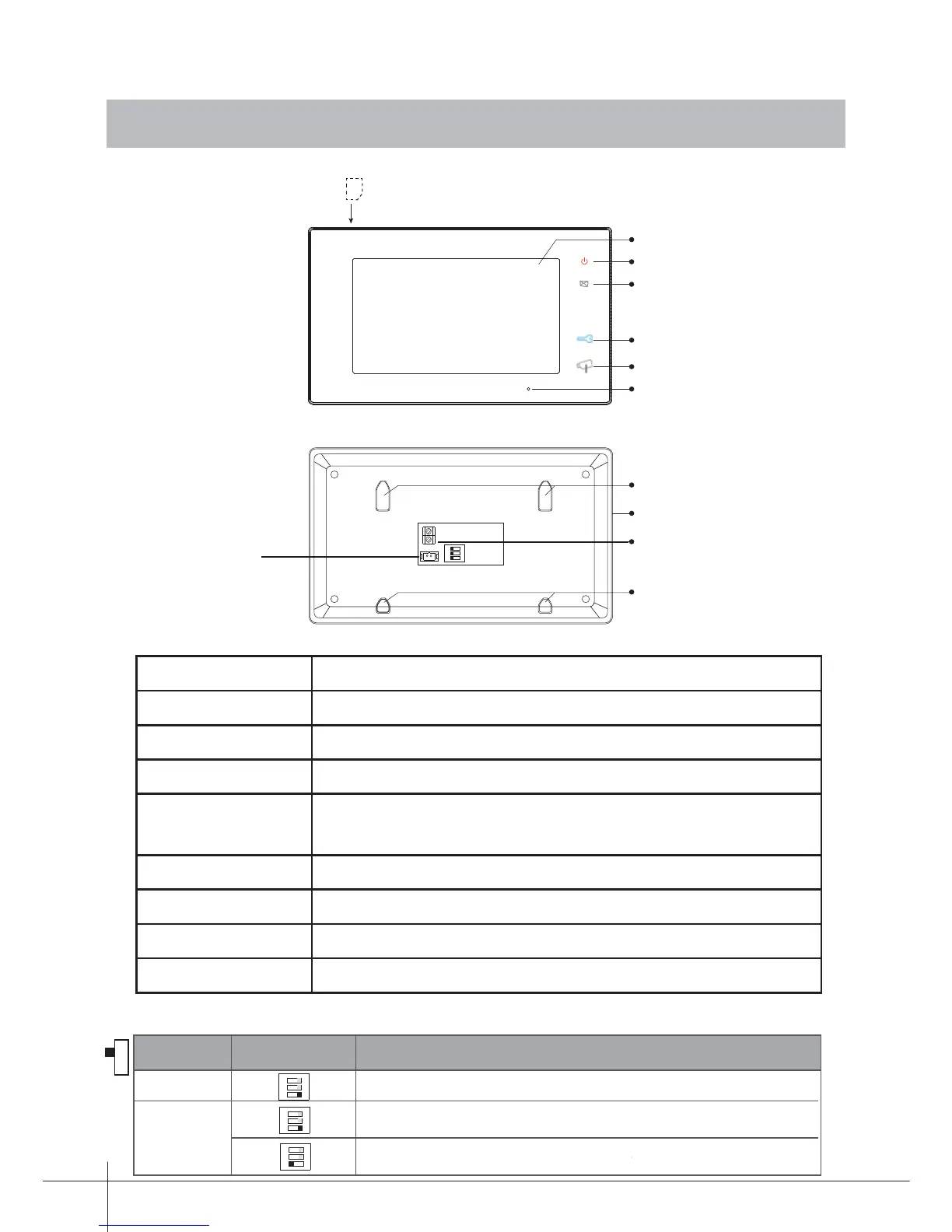

Parts and Functions
Digital TFT LCD Screen
UNLOCK Button
TALK/MON Button
Microphone
Connection Port
Speaker
Mounting Hook
Mounting Hook
1 2 3
ON
DIPS
L1
L2
ON/OFF Button
Message Indicator
SD card
LCD screen Display the visitors' image
ON/OFF Button Press to open/close screen
Message indicator It will light when the monitor received the unread record
Unlock button Press to release the door
Talk/Mon button Press to communicate hands free with visitor
Press to view the outdoor condition in standby mode
Microphone Receive voice from the user
Mounting hook Use to hang up the monitor
Connection port Bus terminal, Doorbell button terminal, DIP Switches
Speaker Send out vioce from the visitor
Key functions
-1-
DIP Settings
123
ON
Bit
DIP1&2
Reserved. left to default.
Set to OFF. When the monitor is in the middle of the line in daisy chain connection.
Bit State Description
DIP3
123
ON
123
ON
Set to ON. When the montior is at the end of the line or connected to a DBC4S.
1. Indoor Monitor
COD. 97767IKg V09_16
.
Door bell
THIS KIT IS NOT COMPATIBLE WITH VERSION V1.0
1 23
ON
1 23
ON
1 23
ON
1 23
ON
ON
OFF.
