General Assembly for use as a Line Trimmer or Brushcutter

Connecting the Lower shaft to the Upper shaft

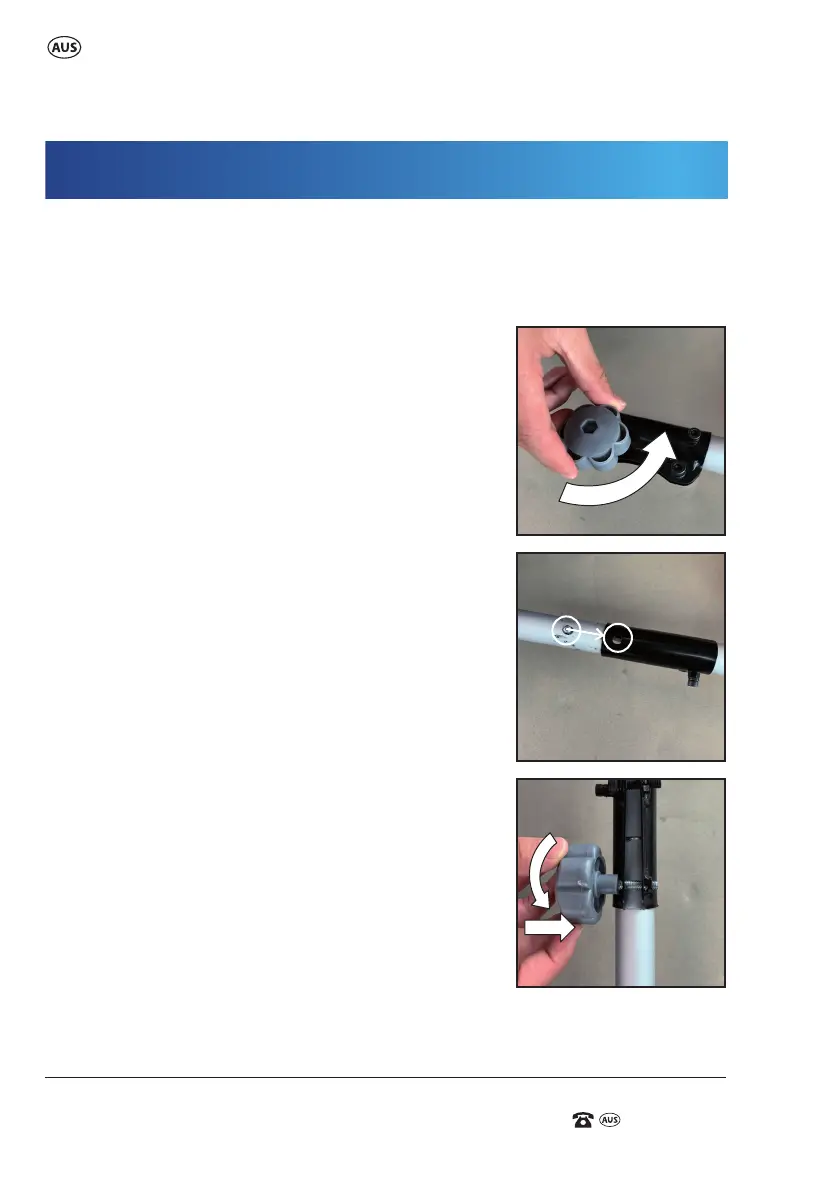

1. Lay the unit down so that the fuel tank bracket (39) is resting on a secure

surface, or on the ground.

2. Loosen the shaft locking knob (14) in an anti

clockwise direction (Fig. A) and remove from the

clamp.

3. Remove the plastic protector from the end of the

lower shaft. Line up the hole in the clamp, with

the lower shaft release button (24) and start to

insert the lower shaft into the upper shaft (Fig B).

Rotate the shaft up and down slightly until the

lower shaft release button (24) engages in the

hole in the clamp.

When engaged you will hear a click when it locks

into place.

NOTE: Ensure you check that the lower shaft

can not be pulled outwards when the lock is

correctly engaged.

4. When the shaft is located, re-insert the shaft

locking knob (14) rst through the hole in the

clamp, then through the threaded hole, to secure

both shafts in place. Ensure it is a tight t. (Fig. C).
