6. Use the 4mm hex key (37) to secure the 4

hex bolts in a clockwise direction. Ensure the

hex bolts are all engaged with the nuts in the

underside of the P handle lower clamp. (Fig G)

Fitting the Brushcutter / Line Trimmer

Guard

Before using either the brushcutter or line trimmer,

the brushcutter guard (17) needs to be assembled.

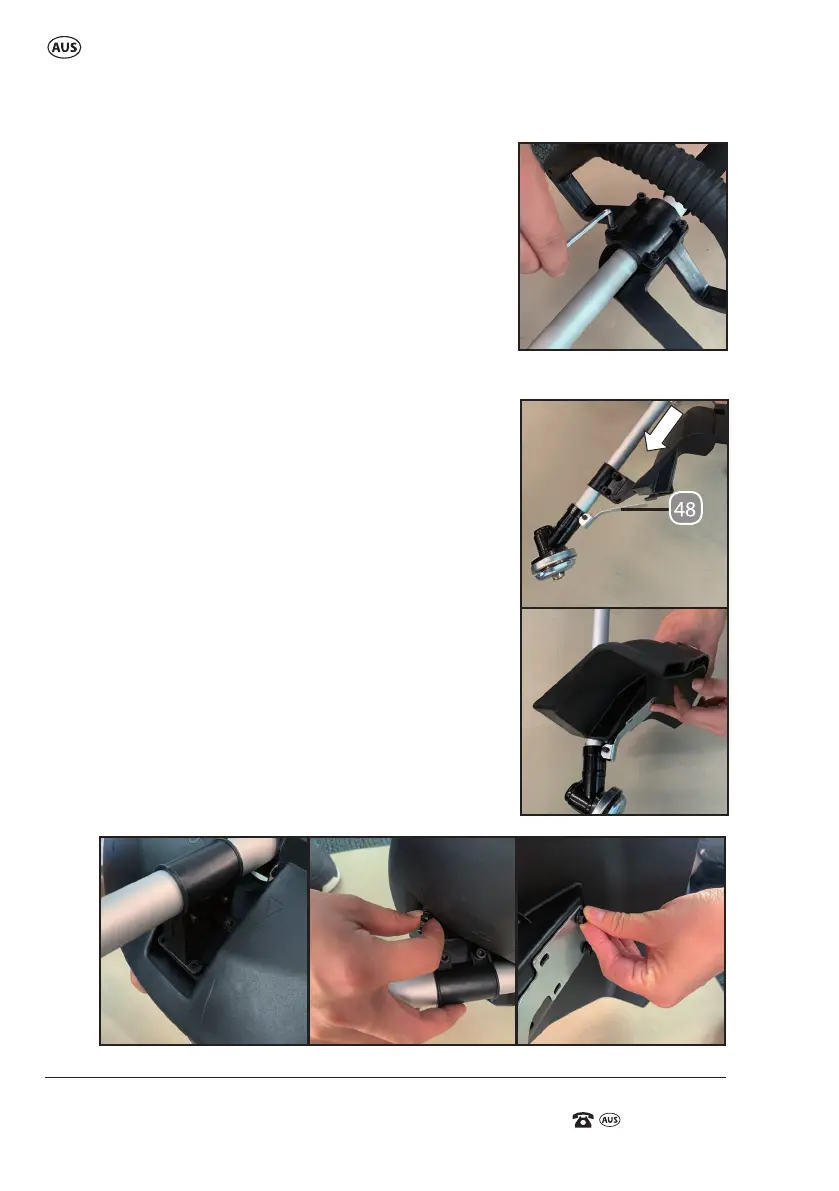

1. Lay the unit down so that the fuel tank bracket (39)

is resting on a secure surface, or on the ground.

2. Attach the brushcutter guard (17) onto the lower

shaft, positioned between the guard attachment

clamp (16) and guard attachment supporting

plate (48) as indicated in Fig H. Depress the guard

attachment supporting plate (48) close to the

brushcutter guard (17).

3. Align the 4 holes on the guard attachment

supporting plate (48) and brushcutter guard

(17). Insert the 5mm hex bolt for brushcutter

guard (47) into the aligned hole to the end from

the outer of the brushcutter guard (17). Attach

the nut onto the bolt end from the inside of the

guard attachment supporting plate (48). Tighten

with hand (Fig I).
