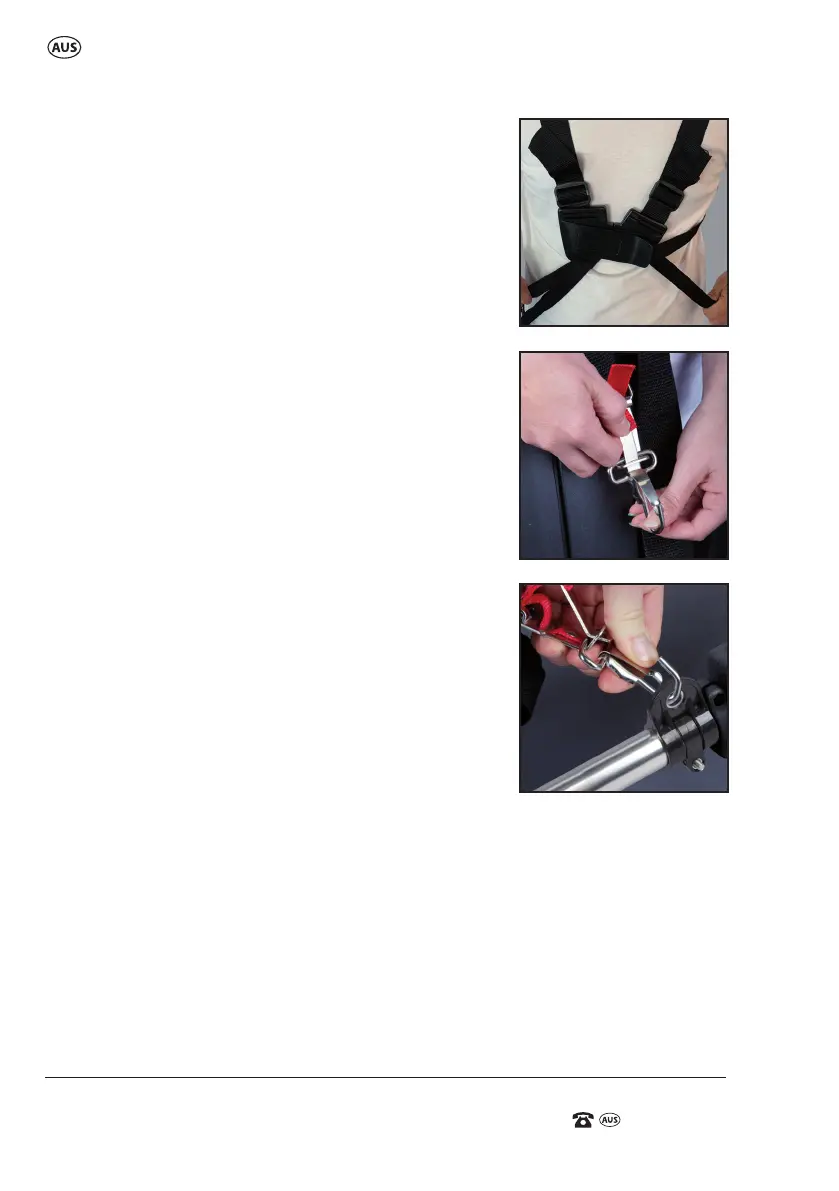

3. To adjust the double shoulder strap harness (31)
on your body, tighten or loosen the front straps
adjusters. (Fig. N)
4. Ensure the metal connector clip is attached onto
the side pad guard correctly. When in the correct
position, the long metal tab (as shown in Fig. O)
needs to be holding the metal connector clip in
place.
5. To attach to the unit, insert the clip on the side pad
guard through the double strap shoulder harness
attachment point (37) (Fig. P)
The location of the side pad guard can also be
changed by tightening or loosening the adjuster on
the side pad guard.
The double shoulder strap harness (31) is tted with
a quick release clip which allows rapid removal of the
appliance from the harness.
To activate the quick release clip so as to remove
the appliance, pull the red tab thus withdrawing the
metal tab. The attaching clip will then release from
the harness.
Fitting or Replacing the Brushcutter Blade
NOTE: Always ensure the engine is turned o before undertaking this task.
NOTE: Before tting, check the diameter of the cutter is 255mm, and the Bore
size is 25.4mm.
Do NOT proceed if the cutter is dierent to these specications.
1. Lay the unit down so that the fuel tank bracket (39) is facing upwards and
the engine is resting on the ground. Lift the gearbox end of the lower shaft
(15) to gain access to the spindle (20).
A.
A.
A.
N.
O.
P.
