MODEL: №. SBC52 • 02/2020 • 700710

52cc 2 Stroke Brushcutter / Line Trimmer

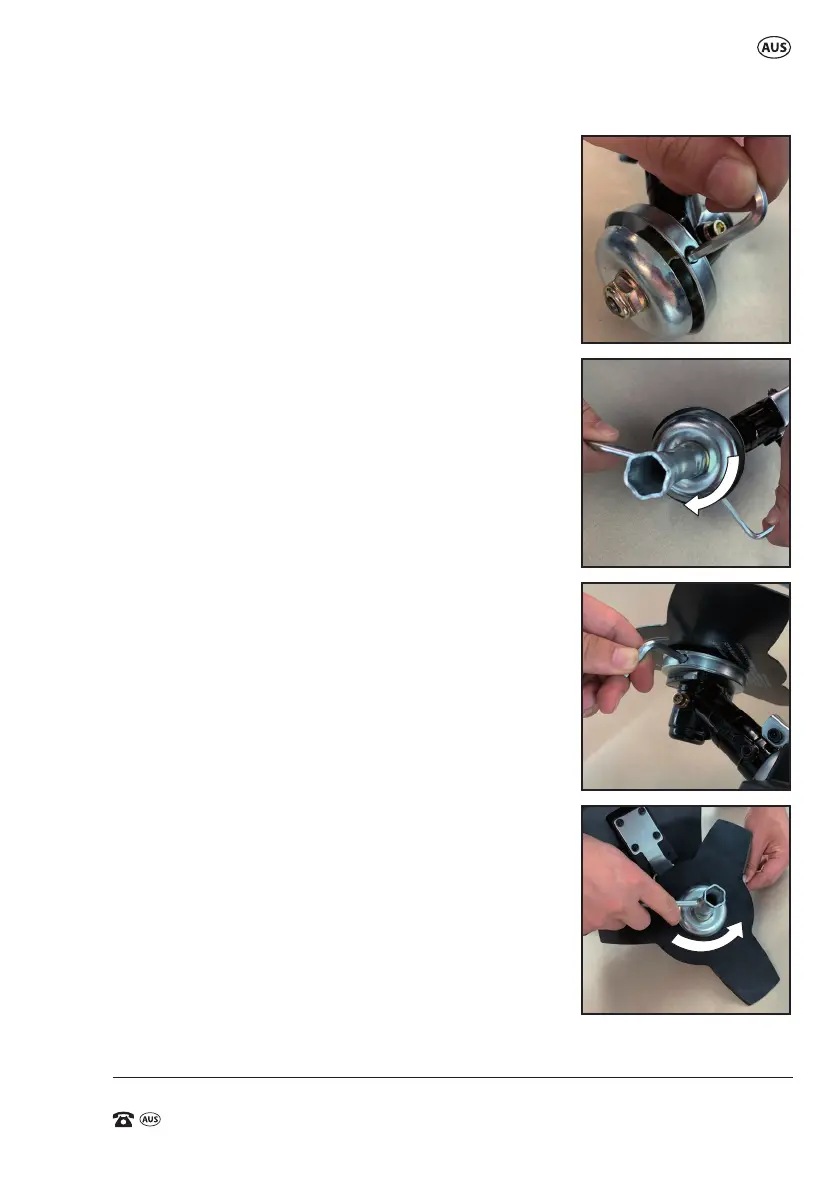

2. Locate the spindle lock entry hole (19) and align

it with the hole on the bottom silver protector.

Use the 4mm allen key (37) and insert through

both holes to lock the spindle (Fig Q), then using

the spark plug spanner / blade nut wrench /

screwdriver combination tool (36), use the blade

nut wrench to remove the blade nut (26) by

rotating in a clockwise direction. (Fig R)

3. Remove the outer ange (29). Place the 3T

brushcutter blade (28) over the inner ange (30),

and then replace the outer ange, followed by

the protector (27), then secure the blade bolt by

hand in an anti-clockwise direction.

NOTE: Ensure the direction of rotation of the

blade as indicated by an arrow on the blade

corresponds with the arrow direction on the top

of the guard.

4. To fully secure the blade bolt, again insert the

4mm allen key (37) through both holes to lock the

spindle (Fig S), then using the spark plug spanner

/ blade nut wrench / screwdriver combination

tool (36), use the blade nut wrench to secure

the blade nut by turning in an anti clockwise

direction. (Fig T)

5. Ensure the 3T brushcutter blade (28) is secured

tight before removing the hex key (37) from the

spindle hole.
